US-64S Chain Description/Features
US-64S Chain Specifications

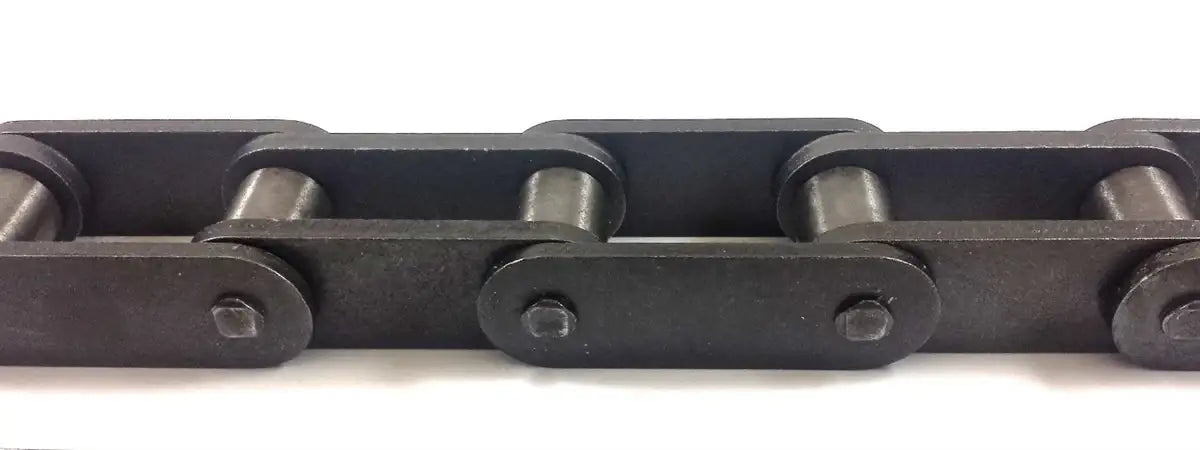

This US-64S chain is a straight sidebar drive chain that is manufactured to be high strength, durable, and have great performance. We offer some of the best pricing in the industry on US-64S chain! US-64S chain is found in some of the most sever applications on earth including power drives, constructing machinery, and heavy duty conveyors. US-64S can even operate in these harsh applications at moderately high speeds. This chain has been manufactured using select grades of alloy steel for high strength and durability, along with press fitted pins to prevent pin rotation. Additionally we offer a full line of high quality US-64S chain sprockets that range in, construction, tooth count, bore, and hub configurations. For pricing and availability on US-64S straight sidebar drive chain or sprockets please contact us.

Dimensions:
US-64S Chain
  • Part Number: US-64S
  • Pitch: 2.500"
  • Style: Straight Sidebar
  • Ultimate Strength: 125,000 LBS
  • Weight Per Foot: 13.10 LBS
  • Rated Working Load: 6,900 LBS
  • Pin Diameter (G): 0.880"
  • Inside Width (E): 1.500"
  • Dimension (B): 2.000"
  • Dimension (C): 1.690"
  • Pin Style: K/ Full Round
  • Pin Material: Heat-Treated Alloy Steel
  • Roller Diameter (D): 1.560"
  • Roller Material: Heat-Treated Alloy Steel
  • Sidebar Thickness (T): 0.380"
  • Sidebar Height (H): 2.130"
  • Sidebar Material: Heat-Treated Alloy Steel
  • Bushing Diameter: 1.190"
  • Bushing Material: Case Hardened Alloy Steel
