SNW 22 Adapter Sleeve - 3-15/16"

Name: SNW 22 Adapter Sleeve - 3-15/16"
Brand: USA ROLLER CHAIN
SKU: SNW-22-3-1516-ADAPTER-SLEEVE
Availability: InStock

SKU: SNW-22-3-1516-ADAPTER-SLEEVE

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability

Request a Quote

Call to order

Don’t see what you need? In a rush?

Call us!

SNW 22 Adapter Sleeve - 3-15/16" Description/Features

SNW 22 Adapter Sleeve - 3-15/16" Specifications

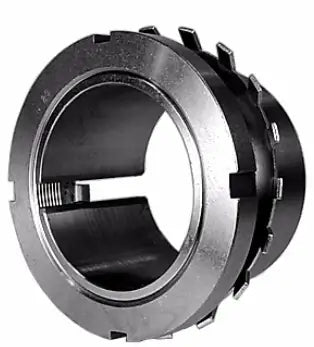

This SNW 22 Adapter Sleeve features a 3-15/16" bore and is a premium quality, high precision adapter sleeve. SNW 22 adapter sleeves are supplied with the accompanying nut and lock washer. This adapter sleeve is made for use with 222 spherical bearings, 1200 series ball bearings, 1300 series ball bearings, and 2200 series ball bearings which we also offer a full line of. For more information or to get a quote on the adapter sleeve, spherical bearing, or ball bearing please contact us and we will be happy to assist you.

Dimensions:

Part #: SNW-22 X 3-15/16
Dimension (N): 3-15/16"
Dimension (I): 3.21"
Dimension (D): 5.72"
Dimension (C): 0.91"
Nut Size: AN22
Lock Washer Size: W22
Weight: 4.8 LBS
