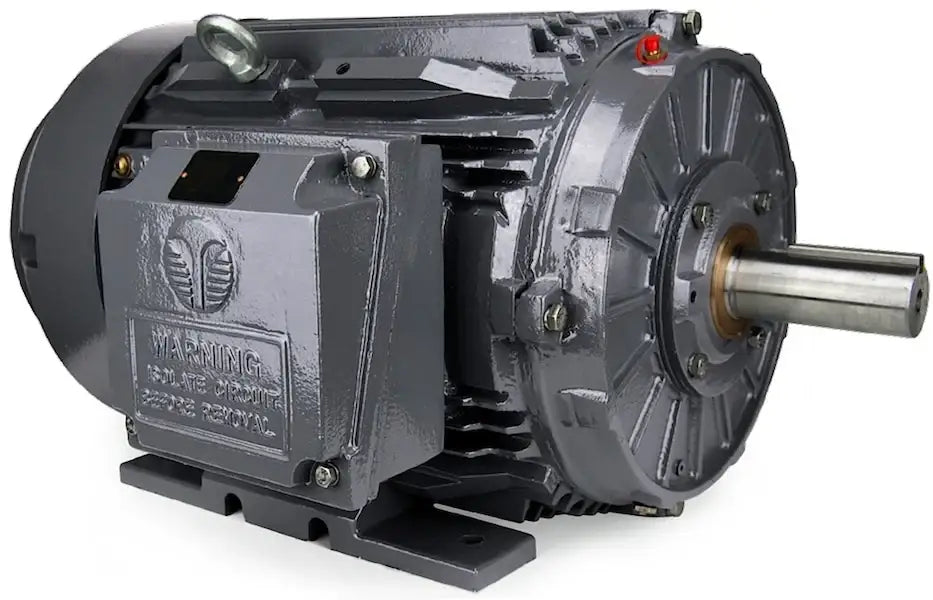

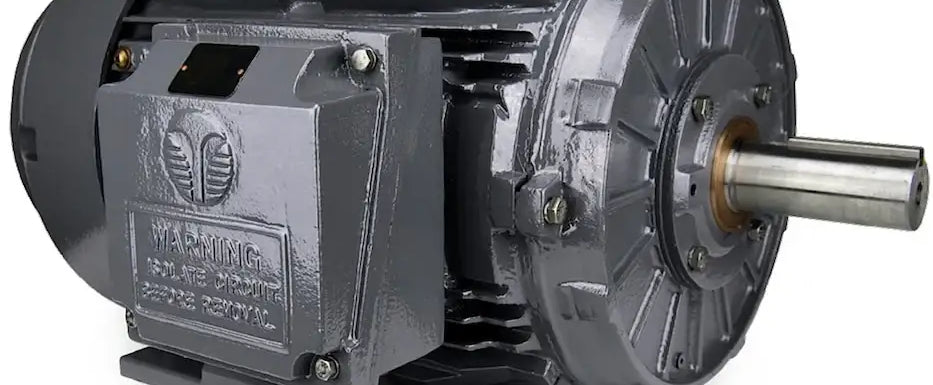

40 HP Severe Duty Motor 3600 RPM, Rigid Base, 324TS Frame

This 40 HP severe-duty motor is intended for some of the world's most rugged and demanding electric motor applications. More specifically, the SD3-324TS-2-BR-E-40 motor has a rigid base, is 3600 RPM, and utilizes a 324TS frame size and high-strength ball bearings. This 40 horsepower severe duty motor is made per IEEE 841 Standards, which means that the motor contains special features designated by the Institute of Electrical and Electronic Engineers to improve reliability, efficiency, and performance. This top-of-the-line 40 HP motor is also equipped with labyrinth seals, internal shaft grounding, class H silicone lead wires with fiberglass protectants, sintered brass breathers, and grease pressure reliefs. Putting this rigid base 324TS 3600 RPM 40 HP electric motor above others within the same class! For more information or a quote on our premium SD3-324TS-2-BR-E-40 severe duty motor, contact our customer service team, and we will gladly assist you!

40 HP Severe Duty Motor Specs

• Part Number: SD3-324TS-2-BR-E-40
• Horsepower: 40
• Frame size: 324TS
• RPM: 3600
• Poles: 2
• Voltage: 460V
• Body: T-Frame
