Premium 8857M-K750 SS Table Top Chain
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |

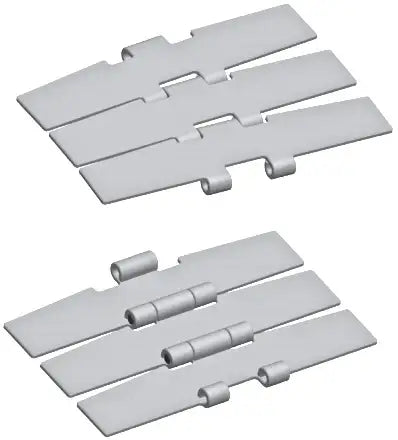

The 8857M tabletop chain is a 7.50-inch (190.5 mm) wide stainless steel conveyor chain designed for container and package handling conveyor systems. The chain provides stable product carry and consistent alignment during transport of bottles, containers, and similar products. The stainless steel construction offers corrosion resistance suitable for washdown and processing environments commonly found in beverage and packaging lines. Refer to the dimensional specifications below to verify compatibility with your existing conveyor chain before ordering, as some brands will not interlace. If dimensions do not match, contact us for assistance verifying compatibility.
For more information or to get a quote on Premium Table Top Chain 8857M-K750 please contact us and we will be happy to assist you!
Dimensions:
- Chain Size: 8857M-K750
- Pitch (P): 1.500"
- Plate Thickness (T): 0.122"
- Pin Diameter (D): 0.250"
- Width (L): 7.500"
- Backflex Radius (R): 5.905"
- Minimum Curve Radius (R): 29.527"
- Dimension (H): 0.260"
- Dimension (W): 2.244"
- Dimension (X): 2.362"
- Material: Stainless Steel
- Chain Strength: 2,363 LBS
- Chain Weight: 3.77 LBS/ FT
Chain Size: 8857M-K750 Pitch (P): 1.500" Plate Thickness (T): 0.122" Pin Diameter (D): 0.250" Width (L): 7.500" Backflex Radius (R): 5.905" Minimum Curve Radius (R): 29.527" Dimension (H): 0.260" Dimension (W): 2.244" Dimension (X): 2.362" Material: Stainless Steel Chain Strength: 2,363 LBS Chain Weight: 3.77 LBS/ FT
