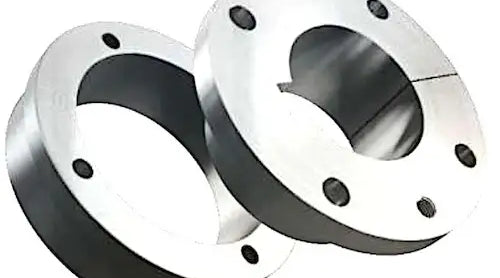

HEB25 Stainless Steel Bushing With 2-3/8" Bore
Note:
Actual Product May Appear Different Than Photo
SKU: HEB25-2-38-SS-BUSHING
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
HEB25 Stainless Steel Bushing With 2-3/8" Bore Description/Features
HEB25 Stainless Steel Bushing With 2-3/8" Bore Specifications
HEB25 stainless steel bushing with a 2-3/8" bore is the smallest bushing type in the HEB bushing class. Our high-quality precision bushing is manufactured from 300-grade stainless steel and interchanges dimensionally with other brands. The HEB25 stainless bushing with a 2-3/8" bore is designed for various applications, including conveyor pulleys and end discs. HEB25 stainless bushings do require a type HE25 hub to seat into. Because this bushing is made from stainless, it can also operate in abrasive, corrosive, and food-grade environments. For more information or to get a quote on our HEB25 stainless steel bushing with a 2-3/8" bore, contact our customer service team, and we will gladly assist you!
Stainless HEB25 Bushing X 2-3/8" Dimensions
- Bushing Size: HEB25SS
- Bore Size: 2-3/8"
- Flange Diameter (E): 4.625"
- Flange Width (F): 0.750"
- Total Length (G): 1.805"
- Bolt Circle (H): 3.938"
- # of Bolts: 4
- Bolt Size: 3/8"
- Bushing Size: HEB25SS
- Bore Size: 2-3/8"
- Flange Diameter (E): 4.625"
- Flange Width (F): 0.750"
- Total Length (G): 1.805"
- Bolt Circle (H): 3.938"
- # of Bolts: 4
- Bolt Size: 3/8"
