H102 Chain

Name: H102 Chain
Brand: USA ROLLER CHAIN
SKU: H102-CHAIN
Availability: InStock

Note: Contact Us For Large Quantity Request

SKU: H102-CHAIN

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability

Request a Quote

Call to order

Don’t see what you need? In a rush?

Call us!

Buy it With:

H102 Chain Sprockets

H102 Chain Description/Features

H102 Chain Specifications

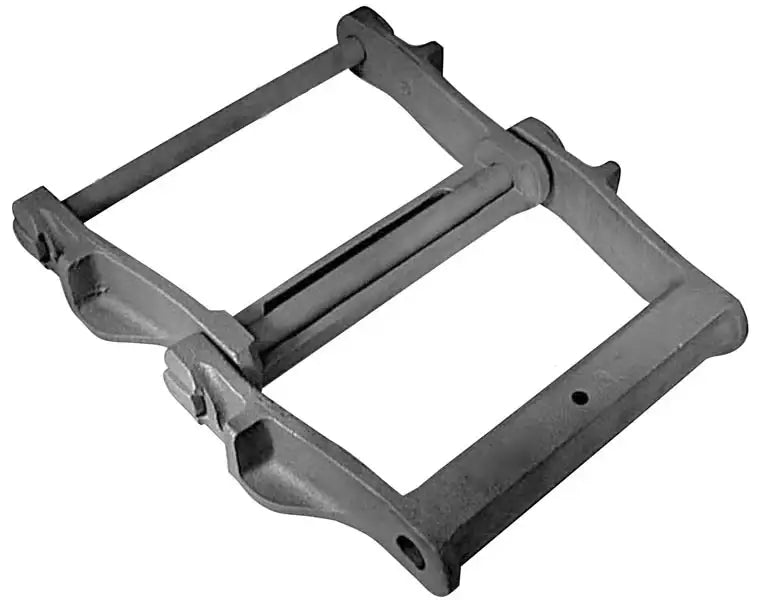

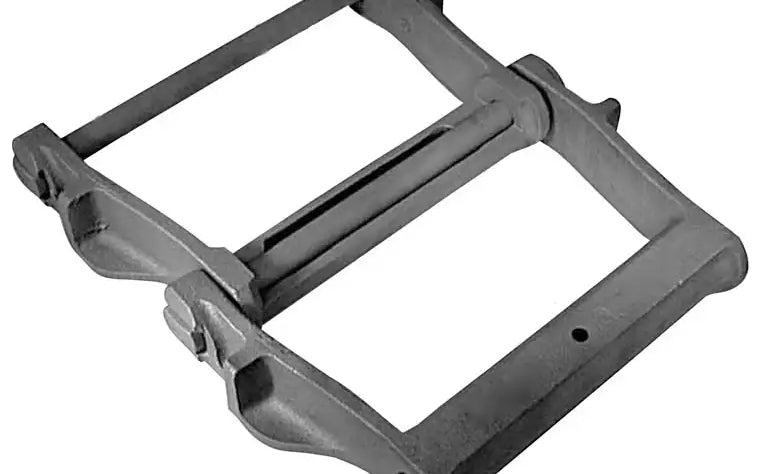

H102 Chain is an H-Class refuse drag chain that is manufactured with Promal cast links and heat-treated carbon steel pins for added durability. This H102 chain is extremely durable, high quality, and is used for conveying abrasive waste materials through wooden or steel troughs. Due to the large and wide opening area, this chain has/ provides a sizable carrying capacity when operated at moderate speeds, even in harsh and demanding applications. When in operation, links should always be run in the direction of the closed barrel. Besides the chain its self, we also have a full line of high-quality H102 chain sprockets. For more information or to get a quote please contact us and we will be happy to assist you.

Dimensions:

Chain Size: H102
Pitch: 5.00"
Maximum Allowable Sprocket Face (A): 6.38"
Pin Diameter (E): 0.625"
Sidebar Height (H): 1.50"
Overall Width (N): 9.75"
Length Of Barrel (X): 7.75"
Maximum Recommended Working Load: 6,100 LBS
Average Ultimate Strength: 36,400 LBS
Links Per 10ft: 24
Weight: 10.7 LBS/ FT
Note: Available In Riveted Construction Only
