DS10ATB20H Sprocket
Note:
- Custom bore sizes are available. Contact us if you need a specific bore size or machining requirement.
- Images are for reference only. Actual product appearance may vary based on size, bore, keyway, hub style, or manufacturer.
SKU: DS10ATB20H-SPROCKET
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
DS10ATB20H Sprocket Description/Features
DS10ATB20H Sprocket Specifications

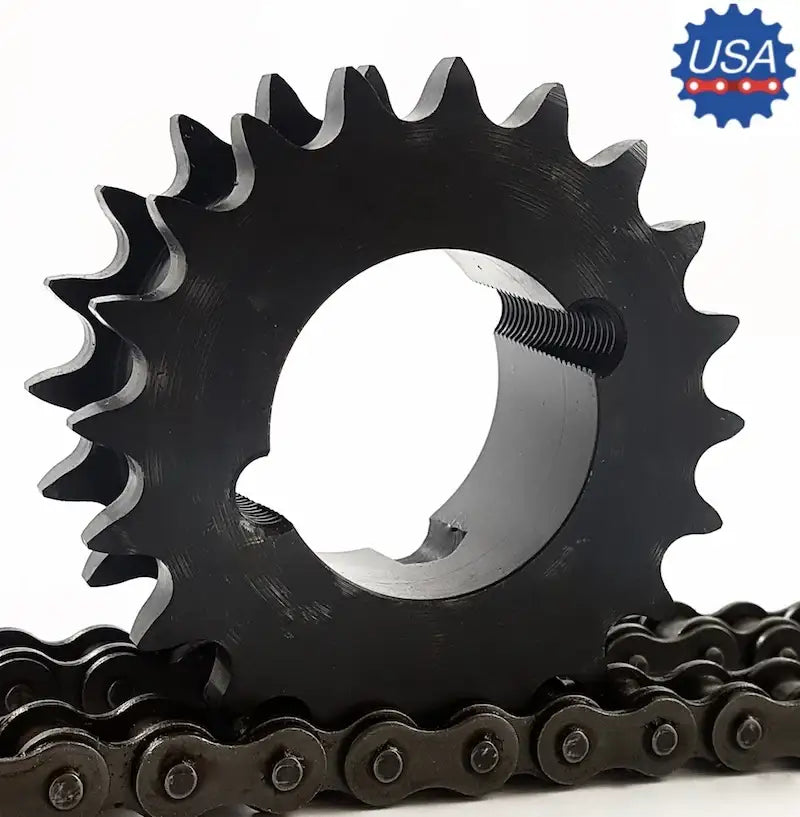

DS10ATB20H Sprocket is a double single taper bushed 20-tooth metric roller chain sprocket made for 10B-1 roller chain. Double single DS10ATB20H sprockets are made to run two single-strands of roller chain parallel to each other and utilizes a 1615 taper bushing. Specifically, this sprocket is manufactured in accordance with ISO, DIN, and British Standards so it directly interchanges with previous sprockets in the application along with other manufacture brands. Utilizing premium grade alloy steel and precision machining our DS10ATB20H sprocket exceeds in performance, durability, and working life.
Besides the metric double single sprocket, we also supply 1615 bushings, 10B roller chain, electric motors, gear reducers, and a plethora of roller chain accessories. For more information or to get a quote please contact us and we will be happy to assist you.
DS10ATB20H Sprocket Dimensions
- Sprocket Size: DS10ATB20H
- Tooth Count: 20
- Bushing Size: 1615
- Outside Diameter: 108.40mm
- Pitch Diameter: 101.49mm
- Minimum Bore: 14mm
- Maximum Recommended Bore: 42mm
- Sprocket Type: ATB
- Dimension (L1): 42.0mm
- Dimension (C): 33.34mm
- Dimension (E): 83.0mm
- Dimension (L2): 38.1mm
- Dimension (F): 9.1mm
- Sprocket Weight: 1.35 kG
Besides the metric double single sprocket, we also supply 1615 bushings, 10B roller chain, electric motors, gear reducers, and a plethora of roller chain accessories. For more information or to get a quote please contact us and we will be happy to assist you.
- Sprocket Size: DS10ATB20H
- Tooth Count: 20
- Bushing Size: 1615
- Outside Diameter: 108.40mm
- Pitch Diameter: 101.49mm
- Minimum Bore: 14mm
- Maximum Recommended Bore: 42mm
- Sprocket Type: ATB
- Dimension (L1): 42.0mm
- Dimension (C): 33.34mm
- Dimension (E): 83.0mm
- Dimension (L2): 38.1mm
- Dimension (F): 9.1mm
- Sprocket Weight: 1.35 kG
