DS10ATB13H Sprocket
Note:
- Custom bore sizes are available. Contact us if you need a specific bore size or machining requirement.

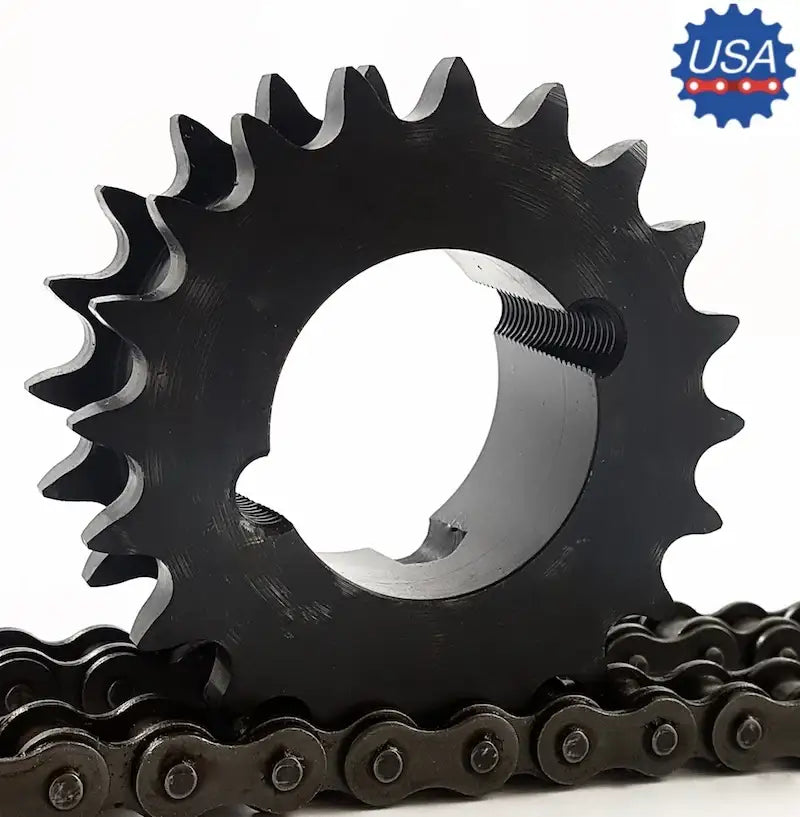

- Images are for reference only. Actual product appearance may vary based on size, bore, keyway, hub style, or manufacturer.
SKU: DS10ATB13H-SPROCKET
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
DS10ATB13H Sprocket Description/Features
DS10ATB13H Sprocket Specifications
DS10ATB13H Sprocket is a double single taper bushed 13-tooth metric roller chain sprocket made for 10B-1 roller chain. Double single DS10ATB13H sprockets are made to run two single-strands of roller chain parallel to each other and utilizes a 1108 taper bushing. Specifically, this sprocket is manufactured in accordance with ISO, DIN, and British Standards so it directly interchanges with previous sprockets in the application along with other manufacture brands. Utilizing premium grade alloy steel and precision machining our DS10ATB13H sprocket exceeds in performance, durability, and working life.
Besides the metric double single sprocket, we also supply 1108 bushings, 10B roller chain, electric motors, gear reducers, and a plethora of roller chain accessories. For more information or to get a quote please contact us and we will be happy to assist you.
DS10ATB13H Sprocket Dimensions
- Sprocket Size: DS10ATB13H
- Tooth Count: 13
- Bushing Size: 1108
- Outside Diameter: 73.00mm
- Pitch Diameter: 66.32mm
- Minimum Bore: 9mm
- Maximum Recommended Bore: 28mm
- Sprocket Type: ATB
- Dimension (L1): 42.0mm
- Dimension (C): 33.34mm
- Dimension (E): 50.0mm
- Dimension (L2): 22.2mm
- Dimension (F): 9.1mm
- Sprocket Weight: 0.56 kG
Besides the metric double single sprocket, we also supply 1108 bushings, 10B roller chain, electric motors, gear reducers, and a plethora of roller chain accessories. For more information or to get a quote please contact us and we will be happy to assist you.
- Sprocket Size: DS10ATB13H
- Tooth Count: 13
- Bushing Size: 1108
- Outside Diameter: 73.00mm
- Pitch Diameter: 66.32mm
- Minimum Bore: 9mm
- Maximum Recommended Bore: 28mm
- Sprocket Type: ATB
- Dimension (L1): 42.0mm
- Dimension (C): 33.34mm
- Dimension (E): 50.0mm
- Dimension (L2): 22.2mm
- Dimension (F): 9.1mm
- Sprocket Weight: 0.56 kG
