D80B45 Sprocket With Stock Bore

Name: D80B45 Sprocket With Stock Bore
Brand: USA ROLLER CHAIN
SKU: D80B45-SPROCKET
Price: 850.99 USD
Availability: InStock

$850.99

SKU: D80B45-SPROCKET

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable

Request a Quote

Don’t see what you need? In a rush?

Call us!

Buy it With:

D80B45 Sprocket With Stock Bore Description/Features

D80B45 Sprocket With Stock Bore Specifications

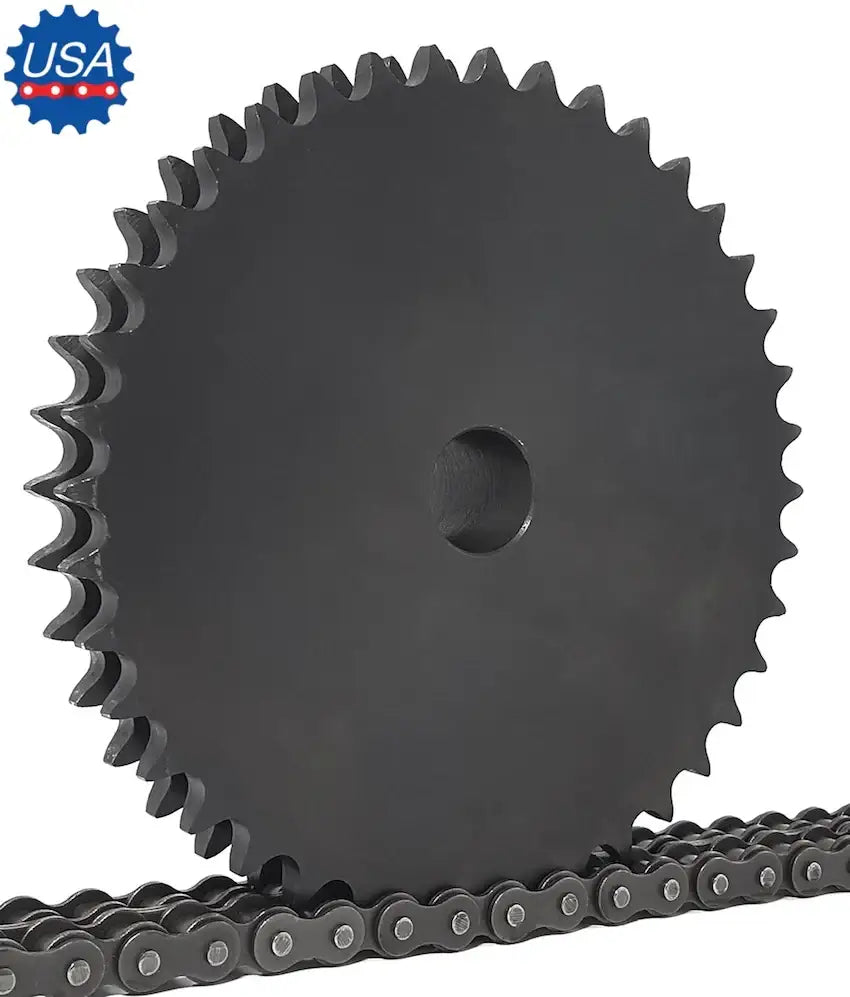

This D80B45 sprocket is a durable, premium quality, and precision 45 tooth double sprocket that is manufactured out of high-quality steel. This sprocket is manufactured for optimum performance, durability, and to strict quality control standards. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #80-2 double roller chain and sprocket thus preventing premature wear or breakage. It is also black oxide coated which increases resistance to the environment and will prevent early rust build up. D80B45 sprockets with a stock bore has the standard 1-1/4" inside diameter hole with no keyway or setscrews and can be easily machine bored to custom sizes. If you are needing custom bore sprockets, we have the capability of providing them within a fast lead time and at a really competitive price. For more information, or a custom sprocket quote please contact us and we will be happy to assist you.

Dimensions:

Sprocket Size: D80B45
Tooth Count: 45
Sprocket Type: B
Outside Diameter: 14.900"
Stock Bore: 1-1/4"
Maximum Recommended Bore: 3-3/4"
Hub Diameter: 5-3/4"
Length Thru Bore: 3-1/8"
Weight: 73.5 LBS
