D80B16H Sprocket With Stock Bore

Name: D80B16H Sprocket With Stock Bore
Brand: USA ROLLER CHAIN
SKU: D80B16H-SPROCKET
Price: 154.99 USD
Availability: InStock

$154.99

SKU: D80B16H-SPROCKET

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable

Request a Quote

Don’t see what you need? In a rush?

Call us!

Buy it With:

D80B16H Sprocket With Stock Bore Description/Features

D80B16H Sprocket With Stock Bore Specifications

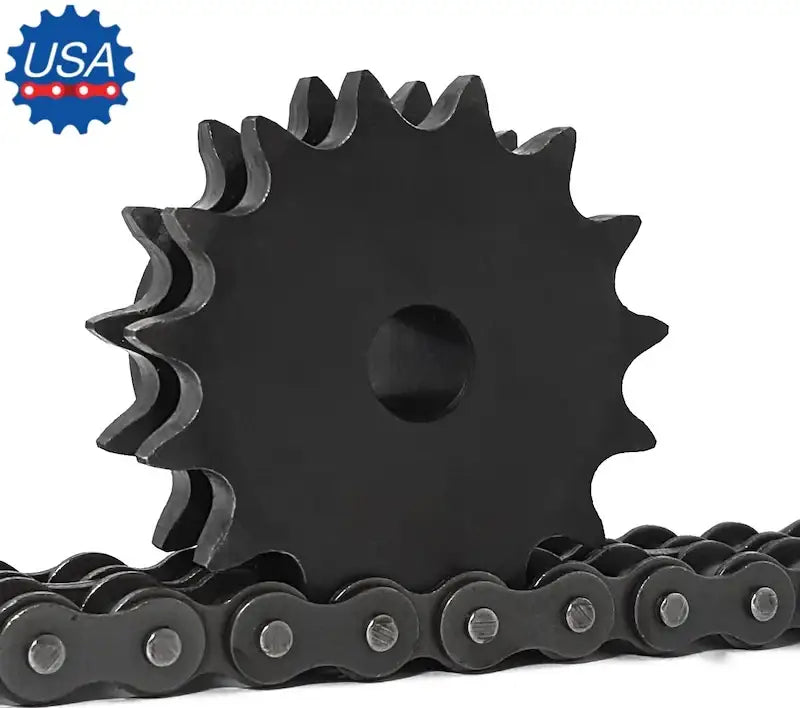

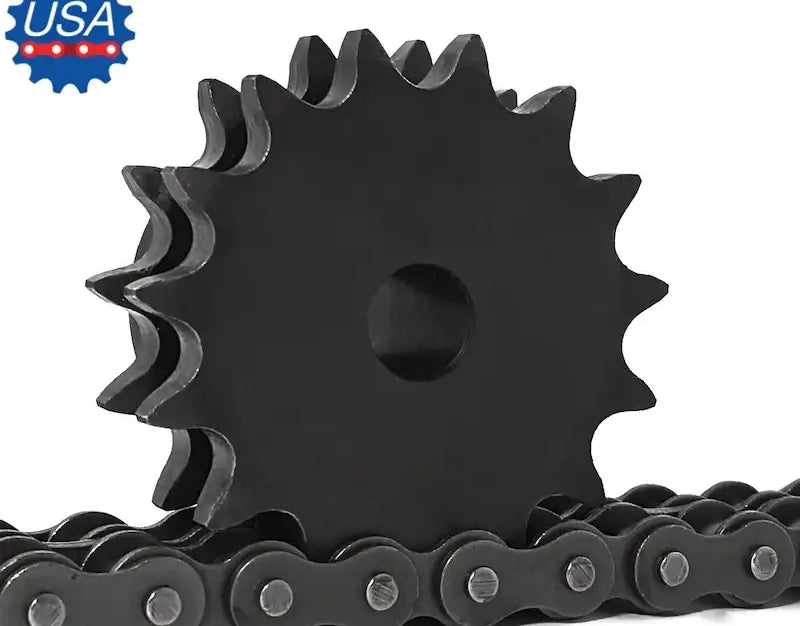

This D80B16H sprocket is a durable, high quality, and precision double sprocket with 16 hardened teeth. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #80-2 double roller chain and sprocket thus preventing premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. D80B16H sprockets with a stock bore is supplied with a standard 1" inside diameter hole with no keyway or set screws and can be easily machine bored to custom sizes. If you are needing custom bore sprockets, we have the capability of providing them within a fast lead time and at a really competitive price. For more information, or a custom sprocket quote please contact us and we will be happy to assist you.

Dimensions:

Sprocket Size: D80B16H
Tooth Count: 16
Sprocket Type: B
Outside Diameter: 5.630"
Stock Bore: 1"
Maximum Recommended Bore: 2-3/4"
Hub Diameter: 4"
Length Thru Bore: 2-3/4"
Weight: 11.0 LBS
