D100B23 Sprocket With Stock Bore
Note:
Se habla espanol
$430.99
SKU: D100B23-SPROCKET
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
D100B23 Sprocket With Stock Bore Description/Features
D100B23 Sprocket With Stock Bore Specifications

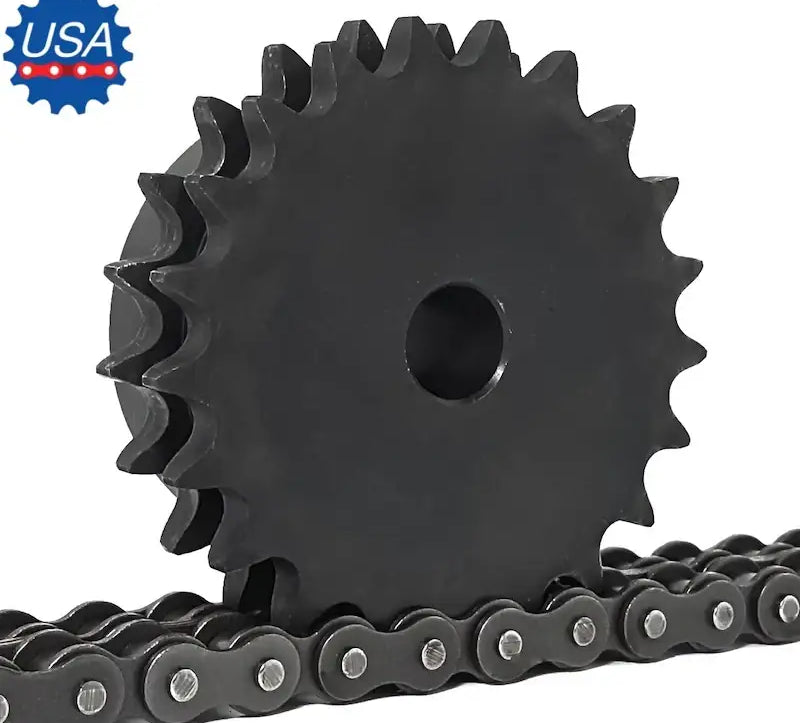

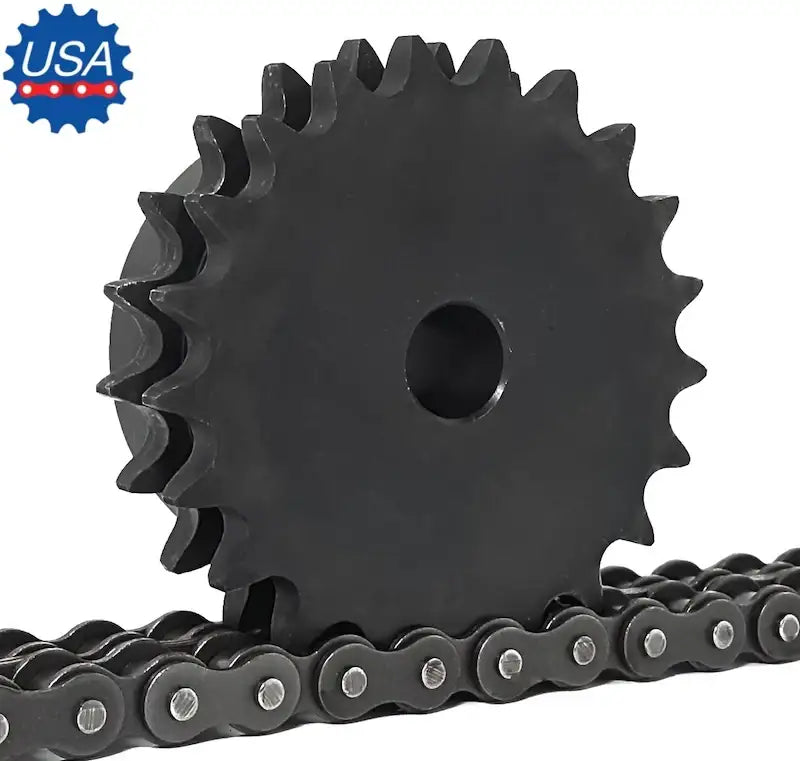

This D100B23 sprocket is a durable, high quality, and precision double sprocket with 23 hardened teeth. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #100-2 double roller chain and sprocket thus preventing premature wear or breakage. This sprocket is also black oxide coated which increases resistance to the environment and will prevent early rust build up. D100B23 sprockets with a stock bore is supplied with a standard 1-1/4" inside diameter hole with no keyway or set screws and can be easily machine bored to custom sizes. If you are needing custom bore sprockets, we have the capability of providing them within a fast lead time and at a really competitive price. For more information, or a custom sprocket quote please contact us and we will be happy to assist you.
Dimensions:
Phone: (407) 347-3519
Email: sales@usarollerchain.com
Click Here To See Our Other Products!
- Sprocket Size: D100B23
- Tooth Count: 23
- Outside Diameter: 9.840"
- Sprocket Type: B
- Stock Bore: 1-1/4"
- Maximum Recommended Bore: 3-3/4"
- Hub Diameter: 5-1/2"
- Length Thru Bore: 3-3/8"
- Sprocket Weight: 41.3 LBS
Email:
Click Here To See Our Other Products!
- Sprocket Size: D100B23
- Tooth Count: 23
- Outside Diameter: 9.840"
- Sprocket Type: B
- Stock Bore: 1-1/4"
- Maximum Recommended Bore: 3-3/4"
- Hub Diameter: 5-1/2"
- Length Thru Bore: 3-3/8"
- Sprocket Weight: 41.3 LBS
