CA550 AH Attachment

Name: CA550 AH Attachment
Brand: USA ROLLER CHAIN
SKU: CA550-AH-ATTACHMENT
Availability: InStock

SKU: CA550-AH-ATTACHMENT

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability

Carbon Steel Chains

Features	General Duty Plus	Economy Plus
Solid Bushings	Split Bushings in most cases	Split Bushings
Solid Rollers
Through-Hardened Pins	Case-Hardened Pins	Heat-Treated Pins
Case-Hardened Rollers		Heat-Treated in Some Chains
Case-Hardened Bushings		Heat-Treated in Some Chains
Wide Contour Plates	Standard Contour Plates	Standard Contour Plates
Superior Pin to Plate Contact
High-Hold Riveting	Standard Dual-Stake Rivets	Standard Dual-Stake Rivets
Factory Pre-Loading		Not Standard on Economy Chains
Specific Heat-Treatment on Every Component		Some Components Might be Heat-Treated
Premium Alloy & Carbon Materials	High-Quality Carbon Materials	Standard-Quality Carbon Materials
Shot-Peened Components	Non Shot-Peened Components	Non Shot-Peened Components
High-Precision Components	Standard Precision Components	Low Precision Components
Conforms to ANSI B29.1 or ISO/DIN Standards

Request a Quote

Call to order

Don’t see what you need? In a rush?

Call us!

Buy it With:

CA550 Roller Chain - 10ft Box (Agricultural Roller Chain) $129.99

CA550 AH Attachment Description/Features

CA550 AH Attachment Specifications

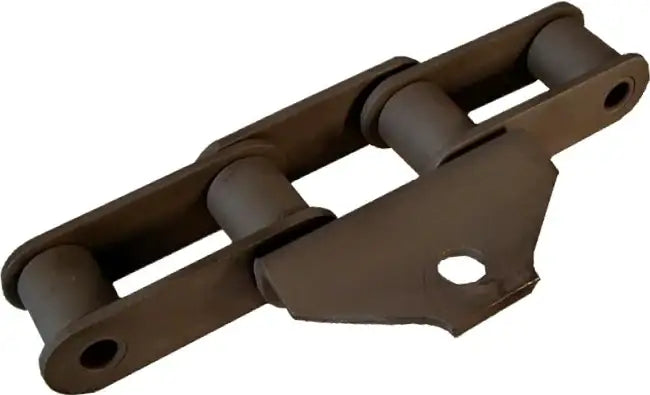

CA550 AH attachment is a one side, one hole attachment that is manufactured for CA550 roller chain. We can supply CA550 roller chain with AH attachments in any configuration needed to meet your exact needs. This AH attachment is manufactured using precision hardened components to ensure durability, working life, and strength.

Dimensions:

Attachment #: CA550 AH
Dimension (J): 1.469"
Dimension (K): 1.875"
Dimension (L): 0.250"
Dimension (M): 0.750"
Dimension (N): 1.031"
Dimension (T): 0.105"
