C111C K2 Attachment

SKU: C111C-K2-ATTACHMENT
In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability
Request a Quote
<p>Don’t see what you need? In a rush?</p>

Don’t see what you need? In a rush?

Call us!
[{"variant_id":"51714958655855" , "metafield_value":""}]
C111C K2 Attachment Description/Features
C111C K2 Attachment Specifications
C111C K2 attachments are used in a wide range of applications including; bucket elevators, conveyors, flight conveyors, forest products, grain handling, sugar processing and more! This C111C K2 attachment has the capability to convey abrasive and non-abrasive materials, which greatly improves its range of applications. We can supply C111C chain with K2 attachments in any configuration needed. To get a quote or for additional information please contact us and we will be happy to assist you.

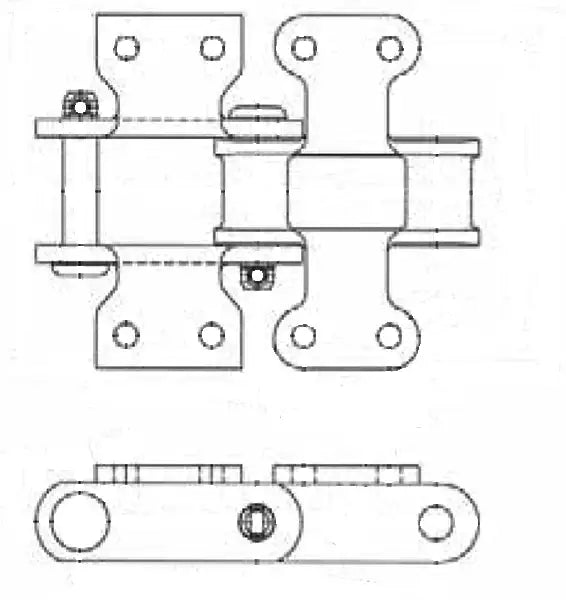

Dimensions:
C111C K2 Attachment
  • Attachment Number: C111C K2
  • Pitch: 4.760"
  • Bolt Diameter: 0.500"
  • Hole Diameter (D): 0.560"
  • Dimension (J): 1.120"
  • Dimension (K): 2.380"
  • Dimension (M): 6.250"
  • Dimension (M1): 2.310"
  • Dimension (R): 3.500"
  • Dimension (R1): 3.560"
  • Dimension (T): 0.310"
  • Dimension (T1): 0.380"
  • Dimension (W): 7.500"
  • Dimension (W1): 7.690"
  • Weight: 12.3 LBS/ FT
