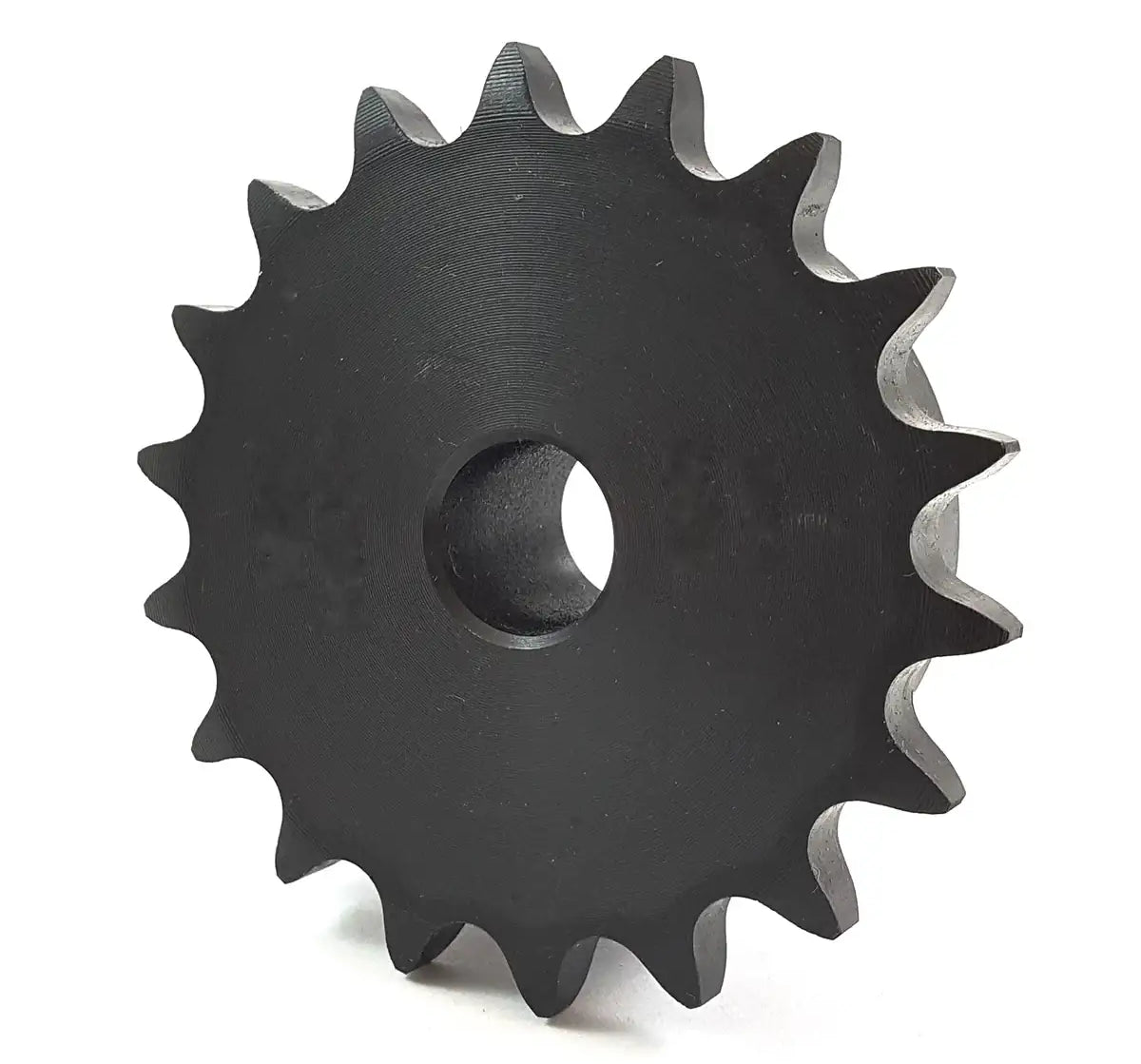

60B19 Sprocket Stock Bore ANSI 60B19

Name: 60B19 Sprocket Stock Bore ANSI 60B19
Brand: USA ROLLER CHAIN
SKU: 60B19-SPROCKET
Price: 48.99 USD
Availability: InStock

$48.99

SKU: 60B19-SPROCKET

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable

Request a Quote

Don’t see what you need? In a rush?

Call us!

Buy it With:

60B19 Sprocket Stock Bore ANSI 60B19 Description/Features

60B19 Sprocket Stock Bore ANSI 60B19 Specifications

This 60B19 sprocket is a durable, high quality, and precision sprocket with 19 hardened teeth. Sprockets that have hardened teeth last longer and are much more durable than those that don't. Something else that is notable about this 60B19 sprocket is that it fully meets all ANSI Standards, which insures proper contact between the #60 roller chain and sprocket thus preventing premature wear or breakage. This sprocket is also fully black oxide coated which increases resistance to the environment and will prevent early rust build up. 60B19H sprockets with a stock bore comes with the standard 3/4" ID hole with no keyway or set screws and can be easily machine bored to custom sizes. We also offer sprockets with finished bore configurations right off the shelf from stock, and if you are needing a custom bore sprocket we the capabilities on providing those to within a fast lead time and at really great prices. Fore more information or to get a formal quote please contact us and we will be happy to assist you.

Dimensions:

Sprocket Size: 60B19
Tooth Count: 19
Hub Type: B
Outside Diameter: 4.950"
Stock Bore Size: 3/4"
Maximum Bore Size: 2-3/8"
Hub Diameter: 3-1/2"
Length Thru Bore: 1-1/4"
Weight: 3.92 LBS
Common Interchanges: 60B19H, H60B19, 60B19-SB
