Power Transmission > Screw Conveyors & Parts > Screw Conveyor Drive Shafts
152-0915 2" Screw Conveyor Drive Shaft Without Seal
Note:
Custom Cut to Length Chain Also Available
SKU: 7222-152-0915-DRIVE-SHAFT
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
152-0915 2" Screw Conveyor Drive Shaft Without Seal Features
152-0915 2" Screw Conveyor Drive Shaft Without Seal Specifications

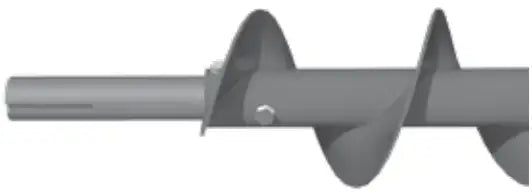

152-0915 2" screw conveyor drive shaft without the end seal is made to transmit the rotary motion coming from the drive to the conveyor screw. To do this to the highest degree of success and performance, this 2" screw conveyor drive shaft is precision manufactured from high-quality cold-rolled steel. The tightly controlled tolerances ensure the perfect bearing fitment when installed, alleviating additional bearing vibration that could be caused by a non-precision shaft. The key-ways are cut to precise transmission standards and the coupling bolt holes are jig-drilled to guarantee an exact fitment with the jig-drilled pipe. This drive shaft is specifically manufactured to go with #102 and #103 trough ends.
__
152-0915 2" Screw Conveyor Drive Shaft Dimensions
- Part#: 152-0915
- Shaft Size: 2"
- Dimension (B): 13-1/8"
- Dimension (C): 8-3/8"
- Dimension (D): 7-1/8"
- Dimension (E): 1-1/4"
- Dimension (F): 4-1/2"
- Keyway Dimension: 1/2" x 1/4"
- Weight: 11.7 LBS
__
- Part#: 152-0915
- Shaft Size: 2"
- Dimension (B): 13-1/8"
- Dimension (C): 8-3/8"
- Dimension (D): 7-1/8"
- Dimension (E): 1-1/4"
- Dimension (F): 4-1/2"
- Keyway Dimension: 1/2" x 1/4"
- Weight: 11.7 LBS
