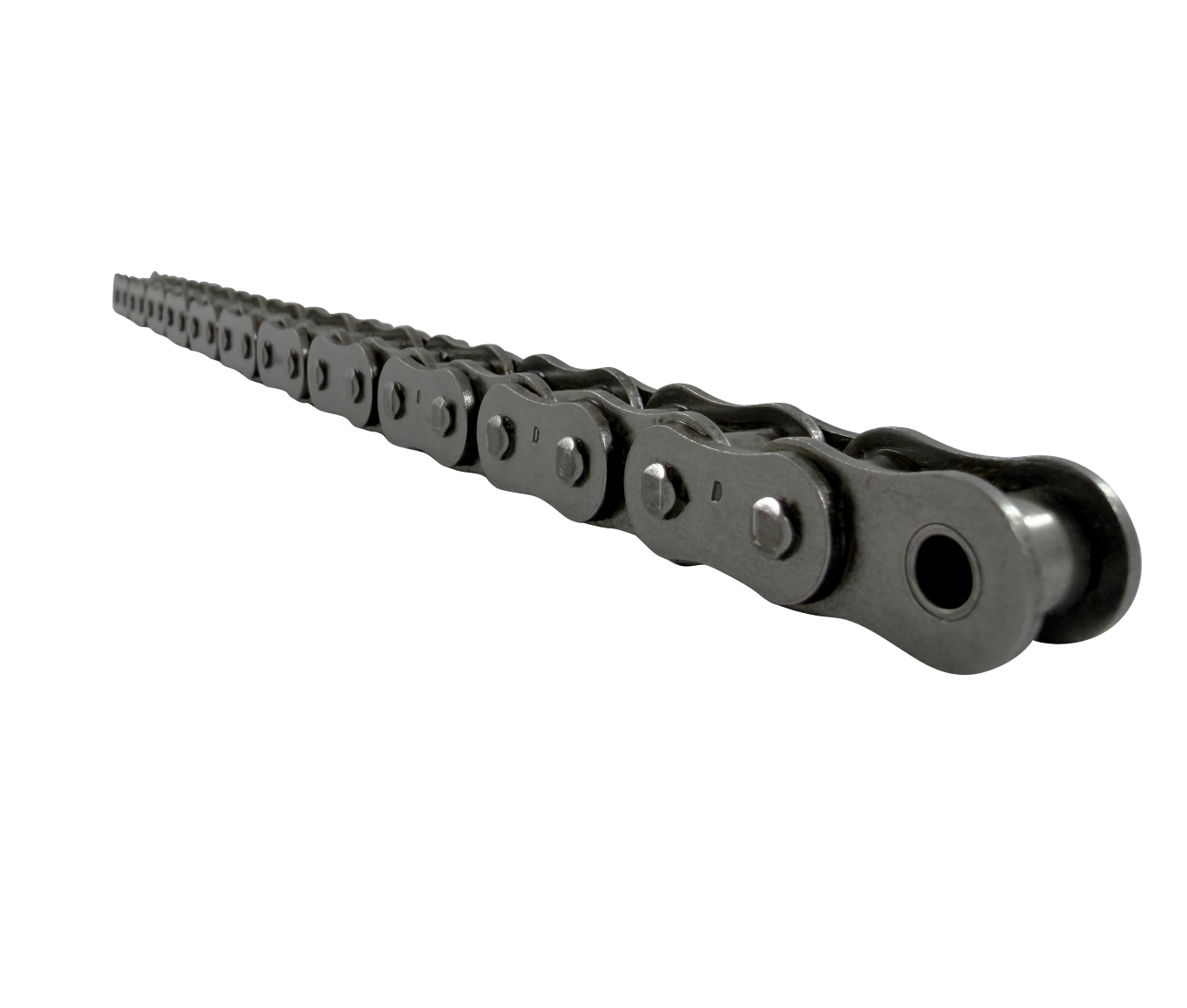

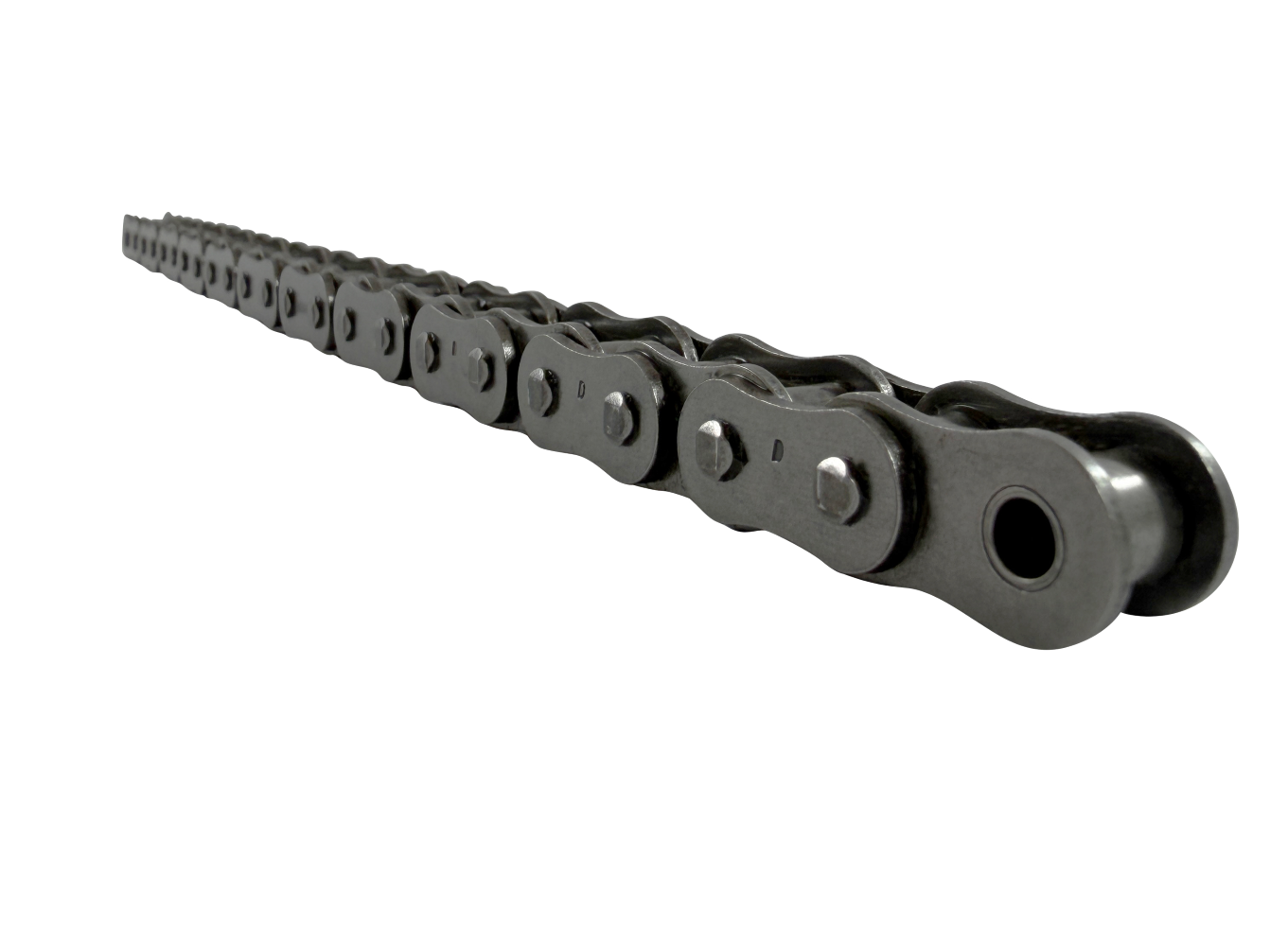

DUROCHAIN Premium #60 Roller Chain - 10ft Box
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
Experience the DUROCHAIN Difference.
DUROCHAIN Premium ANSI #60 roller chain is manufactured to ANSI B29.1 standards for dependable performance in the most demanding power transmission applications. With a 0.750" pitch and precision-engineered construction, this chain delivers reliable performance in industrial, agricultural, packaging, conveying, and general machinery applications.
Built for rock-solid reliability and long-lasting performance, every DUROCHAIN #60 roller chain is manufactured with heat-treated components, precision-machined parts, and factory-applied lubrication to help maximize wear life, fatigue strength, and overall operating performance. Bottom line—DUROCHAIN is ready for whatever you want to throw at it.
DUROCHAIN #60 roller chain is commonly supplied in 10ft boxes, 50ft reels, or 100ft reels, but we can also provide custom cut lengths to perfectly fit your application.
DUROCHAIN Premium Roller Chain Features
Through-Hardened Pins
DUROCHAIN pins are through-hardened for increased strength, improved wear resistance, and dependable performance throughout the service life of the chain.
Precision Solid Round Parts
Solid bushings and rollers provide consistent bearing surfaces to help reduce internal wear, improve energy transfer, and support longer-lasting chain performance.
Superior Plate Hole Preparation
Precision-prepared plate holes help promote accurate component fitment, reduce stress points, and improve overall fatigue resistance in demanding applications.
Max Contour Side Plates
Max contour side plates are designed to add strength where it matters while maintaining ANSI dimensional requirements for proper interchangeability.
Quad-Staked Rivets
High-hold quad-staked rivets help improve chain integrity under shock loads, side thrust, and demanding operating conditions.
Factory Preload
Factory preloading helps seat chain components before installation, reducing initial elongation and helping the chain settle in faster once installed.
DUROCHAIN #60 Roller Chain Specifications
- Part #: 60
- Pitch (P): 0.750"
- Roller Width (R): 0.500"
- Roller Diameter (D): 0.469"
- Overall Width (W): 1.000"
- Connecting Link Overall Width (X): 1.058"
- Plate Height (H): 0.712"
- Plate Thickness (T): 0.093"
- Pin Diameter (L): 0.234"
- Minimum Breaking Load: 8,377 LBS
- Weight Per Foot: 0.97 LBS
