#35 316-Grade Stainless Steel Roller Chain - 10FT Box
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |

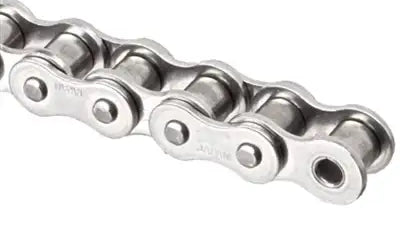

#35 316-Grade Stainless Steel roller chain is manufactured to ANSI B29.1 Standards and provides superior corrosion and chemical resistance versus the standard 304-grade stainless steel. More specifically, the ANSI size 35 316SS chain is utilized in a wide range of applications that are subject to corrosion and abrasion. Our 316SS 35 roller chain is made with high-precision parts that undergo proprietary manufacturing processes to ensure that the end result is a premium-quality anti-corrosive roller chain. We supply this chain in a 10ft box including one connecting link (master link) but custom cut to length strand options as well as 50ft or 100ft reels are also available upon request. For more information or to get a quote on #35 316-Grade Stainless Steel Roller Chain please contact us and we will be happy to assist you.
35 316-Grade Stainless Roller Chain Dimensions
| Chain Size | Pitch (P) | Roller Width (W) | Bushing Diameter (D) | Overall Width (A) | Plate Height (H) | Plate Thickness (T) | Pin Diameter (E) | Weight (Per Ft) |
|---|---|---|---|---|---|---|---|---|
| 35SS-316 | 0.375" | 0.188" | 0.200" | 0.640" | 0.350" | 0.050" | 0.141" | 0.2 LBS |
| Chain Size | Pitch (P) | Roller Width (W) | Bushing Diameter (D) | Overall Width (A) | Plate Height (H) | Plate Thickness (T) | Pin Diameter (E) | Weight (Per Ft) |
|---|---|---|---|---|---|---|---|---|
| 35SS-316 | 0.375" | 0.188" | 0.200" | 0.640" | 0.350" | 0.050" | 0.141" | 0.2 LBS |
