Draw Bench Chain
Draw bench chains are manufactured to be tension linkage that pulls a sizing mandrel through the tubing. Mandrels interfere with the smaller relative tube size to create a very high chain pull, so provide a very high ultimate strength. More often than not draw bench chains terminate with strands called suicide chains, which in an overrun situation suicide chains stop the pulling which protects the unit from damage. Because of the application and chain type special features are required to be applied to the sprockets in use.We supply the largest variety of draw bench chain as well as Engineer Class Chains, ranging from 30,000 LBS ultimate strength up to 1,500,000 LBS we have the chain needed to get the job done. Most sizes do require a factory lead-time order but some sizes are in-stock, for more information or to get a quote please contact us at sales@usarollerchain.com or give us a call at (407) 347-3519 and we'll be happy to assist you.
| |

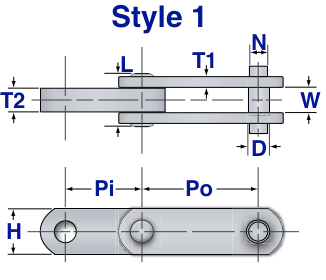

Pitch (Pi)
|
Pitch (Po)
|
Chain Style
|
(W)
|
(D)
|
(N)
|
(L)
|
Pin Style
|
(T1)
|
(T2)
|
(H)
|
Average Ultimate Strength
|
Weight (LBS/ FT)
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3.00" | 4.50" | 1 | 1.063" | 0.875" | 0.625" | 3.190" | A | 0.500" | 1.000" | 2.000" | 100,000 LBS | 9.9 | |
| 3.00" | 3.00" | 1 | 0.781" | 1.000" | 0.750" | 1.840" | A | 0.375" | 0.750" | 1.750" | 110,000 LBS | 13.5 | |
| 3.00" | 5.00" | 1 | 1.313" | 1.250" | 1.125" | 2.690" | A | 0.625" | 1.250" | 2.500" | 200,000 LBS | 12.4 | |
| 3.25" | 6.00" | 1 | 1.313" | 1.250" | 1.125" | 2.780" | A | 0.625" | 1.250" | 2.500" | 150,000 LBS | 15.3 | |
| 4.00" | 8.00" | 1 | 1.875" | 1.750" | 1.625" | 4.130" | A | 1.000" | 1.750" | 3.500" | 400,000 LBS | 33.0 | |
| 4.25" | 8.50" | 1 | 1.562" | 2.000" | 1.875" | 3.440" | A | 0.750" | 1.500" | 4.000" | 220,000 LBS | 32.6 | |
| 4.25" | 8.50" | 1 | 2.063" | 2.000" | 1.875" | 4.310" | A | 1.000" | 2.000" | 4.000" | 500,000 LBS | 39.0 | |
| 3.00" | 3.00" | 2 | 1.250" | 0.875" | 0.625" | 3.000" | B | 0.375" | 0.375" | 1.750" | 100,000 LBS | 7.5 | |
| 5.00" | 5.00" | 2 | 3.000" | 1.875" | 1.625" | 7.440" | B | 1.000" | 1.000" | 3.000" | 380,000 LBS | 39.8 | |
| 4.25" | 8.50" | 3 | 4.094" | 2.000" | -- | 6.380" | C | 1.000" | 1.500" | 4.000" | 800,000 LBS | 61.2 | |
| 5.00" | 9.75" | 3 | 4.375" | 2.188" | -- | 6.380" | C | 1.000" | 1.625" | 4.500" | 650,000 LBS | 60.0 | |
| 3.075" | 3.075" | D | 1.000" | -- | 0.625" | 2.090" | -- | 0.500" | 0.250" | 1.500" | 30,000 LBS | 4.10 | |
| 4.000" | 4.000" | C | 0.875" | -- | 0.625" | 2.250" | -- | 0.875" | 0.375" | 1.500" | 30,700 LBS | 5.70 | |
| 4.000" | 4.000" | C | 1.060" | -- | 0.875" | 3.250" | -- | 1.000" | 0.750" | 2.000" | 67,000 LBS | 12.60 | |
| 6.000" | 6.000" | C | 0.938" | -- | 0.625" | 2.203" | -- | 0.875" | 0.375" | 1.500" | 49,000 LBS | 5.12 | |
| 6.000" | 6.000" | C | 1.031" | -- | 0.625" | 2.250" | -- | 1.000" | 0.310" | 1.500" | 51,000 LBS | 5.10 | |
| 6.000" | 6.000" | C | 0.938" | -- | 0.625" | 2.203" | -- | 0.875" | 0.375" | 1.500" | 76,500 LBS | 5.12 | |
| 6.000" | 6.000" | C | 1.060" | -- | 0.875" | 2.750" | -- | 1.000" | 0.500" | 2.000" | 77,500 LBS | 9.10 | |
| 8.000" | 8.000" | C | 1.625" | -- | 1.250" | 3.750" | -- | 1.500" | 0.625" | 3.000" | 95,000 LBS | 19.00 | |
| 8.000" | 8.000" | D | 1.531" | -- | 0.875" | 3.719" | -- | 0.750" | 0.750" | 2.000" | 100,000 LBS | 12.50 | |
| 8.000" | 8.000" | C | 1.063" | -- | 1.125" | 2.310" | -- | 1.000" | 0.500" | 2.000" | 100,000 LBS | 8.30 | |
| 8.000" | 8.000" | C | 1.563" | -- | 1.125" | 3.096" | -- | 1.500" | 0.750" | 2.500" | 222,000 LBS | 16.50 | |
| 8.000" | 8.000" | C | 1.594" | -- | 1.500" | 4.250" | -- | 1.500" | 0.750" | 3.000" | 230,000 LBS | 20.00 | |
| 10.000" | 10.000" | C | 2.094" | -- | 1.500" | 4.688" | -- | 2.000" | 1.000" | 3.000" | 340,000 LBS | 26.00 | |
| 10.000" | 10.000" | C | 2.625" | -- | 1.750" | 6.297" | -- | 2.500" | 1.250" | 3.500" | 450,000 LBS | 39.0 | |
| 3.000" | 3.000" | C | 0.813" | -- | 0.750" | 1.750" | -- | 0.750" | 0.375" | 1.750" | 83,000 LBS | 7.00 | |
| 5.000" | 3.250" | C | 1.219" | -- | 1.125" | 2.410" | -- | 1.125" | 0.500" | 2.250" | 160,000 LBS | 12.00 | |
| 6.000" | 3.250" | C | 1.313" | -- | 1.250" | 2.688" | -- | 1.250" | 0.625" | 2.500" | 160,000 LBS | 15.30 | |
| 8.500" | 4.750" | C | 2.063" | -- | 2.000" | 3.940" | -- | 2.000" | 0.875" | 4.000" | 300,000 LBS | 37.70 | |
| 8.500" | 4.250" | C | 1.563" | -- | 2.000" | 3.375" | -- | 1.500" | 0.750" | 4.000" | 45,000 LBS | 30.60 | |
| 8.500" | 4.250" | C | 2.062" | -- | 1.990" | 4.375" | -- | 2.000" | 1.000" |
4.000" | 550,000 LBS | 40.40 | |
| 9.750" | 5.000" | E | 4.375" | -- | 2.190" | 6.500" | -- | 1.625" | 1.000" | 4.500" | 1,000,000 LBS | 68.40 | |
| 9.750" | 5.000" | E | 5.180" | -- | 2.375" | 8.438" | -- | 2.250" | 1.120" | 4.500" | 1,000,000 LBS | 89.00 | |
| 9.750" | 5.000" | E | 9.120" | -- | 2.375" | 11.750" | -- | 2.250" | 1.120" | 4.500" | 1,500,000 LBS | 134.0 |
