C2080H Conveyor Chain
C2080H conveyor chain features a 2" pitch and is manufactured for industrial conveying applications. We keep these chains in stock in three different quality levels, Economy Plus, General Duty Plus, and Premier Series.Economy Plus C2080H chain is manufactured to ANSI standards, features solid rollers, and uses heat treated components. The tensile strength of this chain is 17,300 LBS
General Duty Plus C2080H chain is also manufactured to ANSI standards, has solid rollers and heat-treated components. The components of this series are higher precision and use better raw materials for good long-term performance.
Premier Series C2080H chain uses the best quality components, has solid bushings and solid rollers, has gone through several different specialty manufacturing processes to ensure that this chain has the best performance and highest strength.
Important Note:

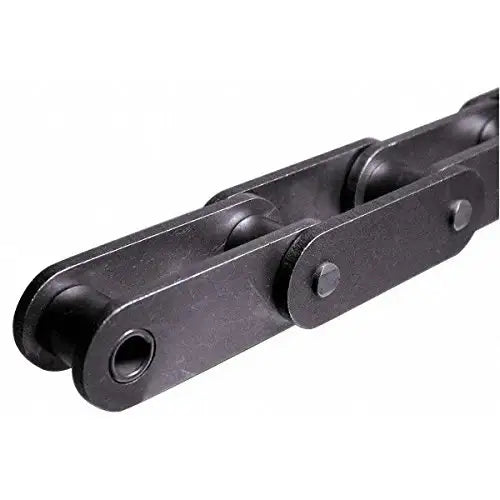

When looking for C2080H conveyor chain (photo below on the left) it is important to not mix it up with
VS.
C2080H Conveyor Chain Sprockets
When deciding on sprockets for you C2080H chain it is important to keep in mind that you should use special double pitch roller chain sprockets when the tooth count is 30 or below. This is because standard roller chain sprockets does not allow for the roller to properly engage with the tooth fully. This causes premature wear on both the chain and sprocket! We stock a full line of C2080H sprockets, checkout the below chart for the stock sizes.|
|
Tooth Count | Outside Diameter | Stock Bore | Maximum Bore | Length Thru Bore | Weight |
|---|---|---|---|---|---|---|
| 11 | 4.010" | 1" | 1-1/2" | 1-5/8" | 2.5 LBS | |
| 12 | 4.330" | 1" | 1-11/16" | 1-5/8" | 3.2 LBS | |
| 13 | 4.660" | 1" | 1-25/32" | 1-1/2" | 3.3 LBS | |
| 14 | 4.980" | 1" | 2-1/8" | 1-1/2" | 4.0 LBS | |
| 15 | 5.300" | 1" | 2-9/32" | 1-1/2" | 4.8 LBS | |
| 16 | 5.630" | 1" | 2-17/32" | 1-1/2" | 5.7 LBS | |
| 17 | 5.950" | 1" | 2-3/4" | 1-1/2" | 6.4 LBS | |
| 18 | 6.270" | 1" | 2-3/4" | 1-1/2" | 7.4 LBS | |
| 19 | 6.590" | 1" | 2-3/4" | 1-1/2" | 7.7 LBS | |
| 20 | 6.910" | 1" | 2-3/4" | 1-1/2" | 8.3 LBS | |
| 21 | 7.230" | 1" | 2-3/4" | 1-3/4" | 9.4 LBS | |
| 22 | 7.560" | 1" | 2-3/4" | 1-3/4" | 10.0 LBS | |
| 23 | 7.880" | 1" | 2-3/4" | 1-3/4" | 10.5 LBS | |
| 24 | 8.200" | 1" | 2-3/4" | 1-3/4" | 11.1 LBS | |
| 25 | 8.520" | 1" | 2-3/4" | 1-3/4" | 12.0 LBS | |
| 26 | 8.840" | 1-1/4" | 3-1/4" | 2" | 14.8 LBS | |
| 28 | 9.480" | 1-3/16" | 3-1/4" | 2" | 16.6 LBS | |
| 30 | 10.110" | 9.620" | 3-1/4" | 2" | 17.8 LBS |
