C2062H Conveyor Chain

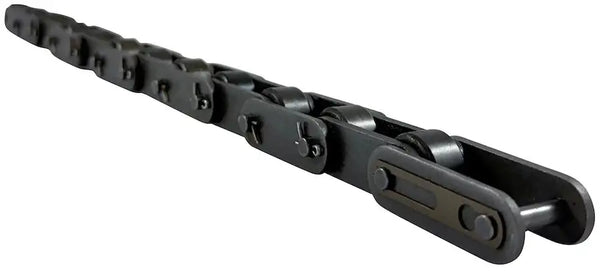

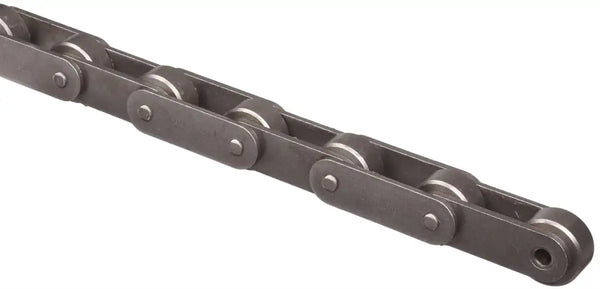

C2062H chain is manufactured with special "oversized rollers" to allow the chain to carry product or for the chain to firmly run in guide tracks. Because of their use all of our C2062H chain have solid rollers that have been heat-treated for an extended working life. We keep C2062H chain in stock in 10ft boxes, 50ft reels, and 100ft reels, we can also supply custom cut to length strands upon request. In addition to the standard C2062H chain we also have it available in a hollow pin configuration, stainless steel, nickel plated, and zinc plated for specialty conveyor applications.

C2062H Conveyor Chain Sprockets

Because C2062H chain has such a non-standard roller diameter a standard roller chain sprocket will not work. However, we stock sprockets that have a special deep-groove tooth design so that the roller will seat correctly. All of these sprockets are black oxide coated and have hardened teeth.
Stock C2062H Chain Sprockets
Sprocket Size Tooth Count Outside Diameter Stock Bore Maximum Bore Length Thru Bore Weight
8 4.520" 3/4" 1-27/32" 1-1/4" 2.60 LBS
9 5.020" 3/4" 2-9/32" 1-1/4" 3.48 LBS
10 5.520" 3/4" 2-9/16" 1-1/4" 4.54 LBS
11 6.010" 3/4" 2-3/4" 1-1/4" 5.20 LBS
12 6.500" 3/4" 2-3/4" 1-1/4" 5.70 LBS
13 6.990" 3/4" 2-3/4" 1-1/4" 6.28 LBS
14 7.470" 3/4" 2-3/4" 1-1/4" 6.82 LBS
15 7.960" 3/4" 2-3/4" 1-1/4" 7.48 LBS
16 8.440" 1" 2-3/4" 1-1/4" 8.18 LBS
17 8.920" 1" 2-3/4" 1-1/4" 8.82 LBS
18 9.410" 1" 2-3/4" 1-1/4" 9.36 LBS
19 9.890" 1" 2-3/4" 1-1/4" 11.10 LBS
20 10.370" 15/16" 2-3/4" 1-1/4" 11.66 LBS
21 10.850" 15/16" 2-3/4" 1-1/4" 13.24 LBS
22 11.330" 15/16" 2-3/4" 1-1/4" 13.78 LBS
23 11.810" 15/16" 2-3/4" 1-1/4" 14.90 LBS
24 12.290" 15/16" 2-3/4" 1-1/4" 15.66 LBS
25 12.770" 15/16" 2-3/4" 1-1/4" 16.80 LBS
26 13.250" 15/16" 2-3/4" 1-3/4" 20.20 LBS
28 14.210" 1-1/4" 2-3/4" 1-3/4" 21.86 LBS
30 15.170" 1-1/4" 2-3/4" 1-3/4" 26 LBS
