DUROCHAIN Premium C2062H Roller Chain - 10ft Box
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
Experience the DUROCHAIN Difference.

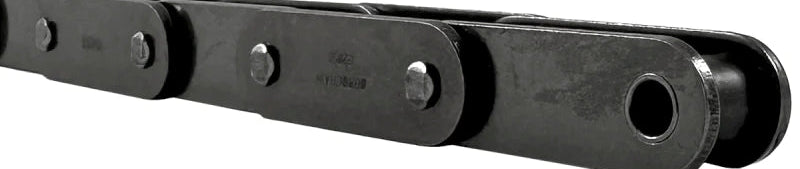

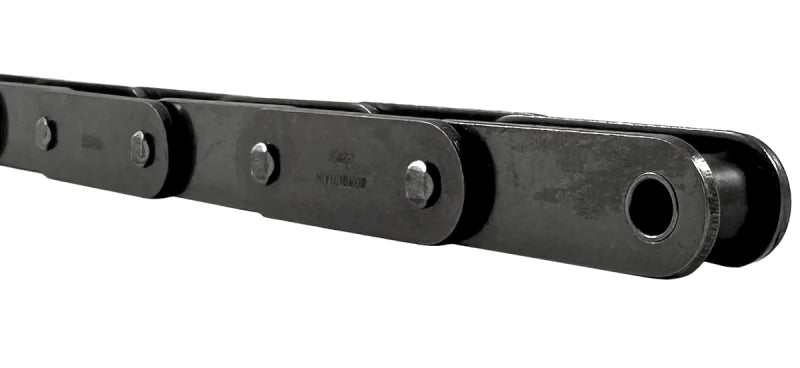

DUROCHAIN Premium #C2062H oversized roller conveyor chain is built for demanding conveying applications where enlarged rollers help support smoother travel, improved load handling, and dependable long-term performance. The oversized rollers extend beyond the sidebar height, making this chain a strong choice for conveyor systems, material handling equipment, packaging machinery, agricultural equipment, and other industrial conveying applications.
Built for rock-solid reliability and extended service life, every DUROCHAIN #C2062H roller chain is manufactured using premium carbon steel components, solid bushings, oversized rollers, quad-staked rivets, precision-prepared components, and factory-applied lubrication to help improve wear life, side-load capability, shock absorption, and overall operating performance.
DUROCHAIN #C2062H oversized roller conveyor chain is commonly supplied in 10ft boxes, but we can also provide custom cut lengths to perfectly fit your application.
DUROCHAIN Premium C2062H Roller Chain Features
Through-Hardened Pins
DUROCHAIN pins are through-hardened for increased strength, improved wear resistance, and dependable performance throughout the service life of the chain.
Solid Bushings & Oversized Rollers
Solid bushings and oversized rollers help improve wear life, support smoother conveying, and provide dependable performance in demanding conveyor applications.
Superior Plate Hole Preparation
Precision-prepared plate holes help promote accurate component fitment, reduce stress points, and improve overall fatigue resistance in demanding applications.
Quad-Staked Rivets
High-hold quad-staked rivets help improve chain integrity, side-load capability, shock absorption, and dependability in demanding conveying applications.
Factory Preload
Factory preloading helps seat chain components before installation, reducing initial elongation and helping the chain settle in faster once installed.
DUROCHAIN C2062H Roller Chain Specifications
- Part #: C2062H
- Pitch (P): 1.500"
- Roller Width (R): 0.495"
- Roller Diameter (D): 0.875"
- Overall Width (W): 1.189"
- Connecting Link Overall Width (X): 1.354"
- Plate Height (H): 0.707"
- Pin Diameter (L): 0.234"
- Minimum Breaking Load: 7,010 LBS
- Weight Per Foot: 1.46 LBS
