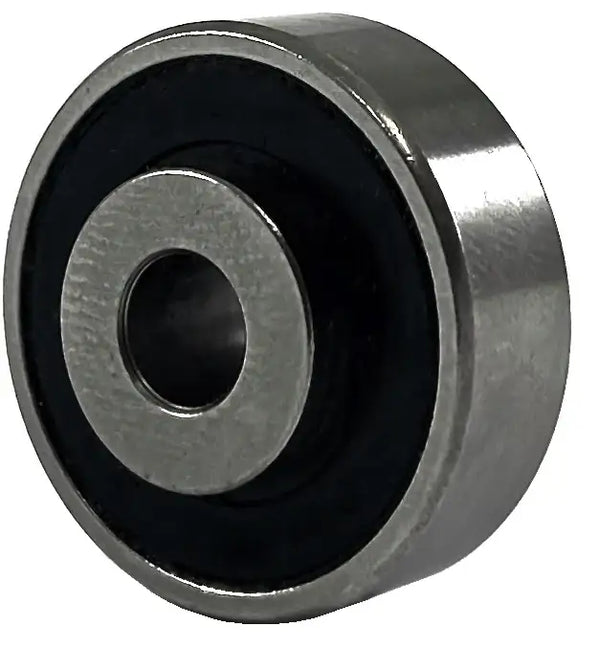

88000 Series Ball Bearings

88000 bearings are manufactured with a seal on both sides and range in bore sizes from 5 millimeters up to 55 millimeters. These bearings are found in many industrial and agricultural applications including electric motor shops. They are also commonly referred to as felt series bearings because manufacturing standards use to use felt seals, however, the industry-standard now is to use rubber seals. More specific to 88000 bearings they have an extended inner race on both sides making them suitable for applications requiring an extended inner race. For additional information or to get a quote please contact our customer service team and we will be happy to assist you!

88000 Bearing Sizes


Bearing Size d (mm) d (Inch) D (mm) D (Inch) Outer Width (B1) Inner Width (B1) Dynamic Load Rating (LBS) Static Load Rating (LBS) Grease Limiting Speed (RPM)
88006 6 0.2362 24 0.9449 0.3150 0.4970 747 314 14400
88007 7 0.2756 24 0.9449 0.3150 0.4970 747 317 14400
88008 8 0.3150 24 0.9449 0.3150 0.4970 747 317 14400
88009 9 0.3543 30 1.1811 0.3543 0.6457 1025 438 10800
88011 11 0.4331 32 1.2598 0.3937 0.6063 1047 465 9600
88013 13 0.5118 32 1.2598 0.3937 0.6063 1375 626 9600
88014 14 0.5512 35 1.3780 0.4331 0.5669 1375 626 9000
88016 16 0.6299 35 1.3780 0.4331 0.5669 1525 747 9000
88026 26 1.0236 52 2.0472 0.5906 0.6594 3150 1785 5340
88035 5 0.1969 19 0.7480 0.3150 0.4970 524 198 18000
88036 6 0.2362 19 0.7480 0.3150 0.4970 524 198 18000
88037 7 02756 22 0.8661 0.3150 0.4970 740 306 13800
88038 8 0.3150 22 0.8661 0.3150 0.4970 740 306 13800
88500 10 0.3937 30 1.1811 0.3543 0.6457 1047 465 10800
88501 12 0.4724 32 1.2598 0.3937 0.6063 1375 626 9600
88502 15 0.5906 35 1.3780 0.4331 0.5669 1525 747 9000
88503 17 0.6693 40 1.5748 0.4620 0.6536 1940 976 7200
88504 20 0.7874 47 1.8504 0.5512 0.6988 2885 1494 6000
88505 25 0.9843 52 2.0472 0.5906 0.6594 3150 1785 5340
88506 30 1.1811 62 2.4409 0.6299 0.9449 3150 1785 4380
88507 35 1.3780 72 2.8346 0.6693 0.9843 1970 1140 3780
88508 40 1.5748 80 3.1496 0.8268 1.0630 2960 1820 3360
88509 45 1.7717 85 3.3465 0.8268 1.0630 3300 2050 3120
88510 50 1.9685 90 3.5433 0.8661 1.1811 3560 2350 2820
88511 55 2.1654 100 3.9370 0.9055 1.2205 4391 2970 2580
88603 17 0.6693 47 1.8504 0.5510 0.7807 1940 976 6600
88604 20 0.7874 52 2.0472 0.5910 0.9055 2885 1494 6000
88605 25 0.9843 62 2.4409 0.6690 0.9843 3150 1785 4860
88606 30 1.1811 72 2.8346 0.7480 1.0630 1970 1140 3960
88607 35 1.3780 80 3.1496 0.9843 1.1417 2120 1330 3600
88608 40 1.5748 90 3.5433 1.0630 1.2205 2960 1820 3360
88609 45 1.7717 100 3.9370 1.1811 1.3780 3300 2050 2820
88612 16 0.6299 35 1.3780 0.5000 0.5669 1525 747 2280
