7300 Series Angular Contact Bearings

7300 series angular contact ball bearings are manufactured to ABEC 5 precision standards which classify them as high-precision bearings. ABEC 5 means that the bearing itself has a micron deviation from a nominal of 20.000mm of -6 micrometres. 7300 series bearings range in bore sizes from 12mm to 110mm and are available with 40° (type B) or 15° (type C) and as singular bearings or as a bearing pair. Angular contact bearings have races with high shoulders allowing the balls to operate at higher contact angles giving them increased one-directional thrust capacity over the same size Conrad style (deep groove) bearing. Greater clearances between the balls and the raceways allow for higher contact angles. For additional information or to get a quote contact our customer support team and we will be happy to assist you!

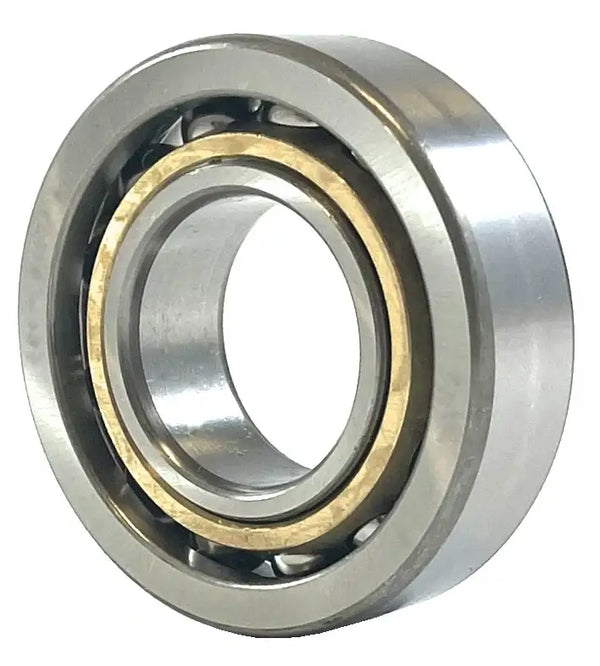

7300 Series Angular Contact Bearing Sizes


Bearing Size d (mm) D (mm) B (mm) Dynamic Load Rating (LBS) Static Load Rating (LBS) Grease Limiting Speed (RPM) Oil Limiting Speed (RPM)
7301 B 12 37 12 2360 1100 1900 25000
7302 B 15 42 13 2790 1460 16000 21000
7303 B 17 47 14 3170 1820 15000 19000
7304 B 20 52 15 3650 1960 13000 17000
7305 B 25 62 17 5150 2900 10000 14000
7306 B 30 72 19 6210 3920 8700 12000
7307 B 35 80 21 7310 4550 7700 10000
7308 B 40 90 23 8930 5670 6900 9200
7309 B 45 100 25 11380 7670 6200 8200
7310 B 50 110 27 14480 9960 5500 7300
7311 B 55 120 29 16710 11690 5000 6700
7312 B 60 130 31 20240 14800 4600 6200
7313 B 65 140 33 21610 15580 4300 5800
7314B 70 150 35 24280 17740 4000 5400
7315 B 75 160 37 26530 20060 3800 5000
7316 B 80 170 39 28560 22490 3500 4700
7317 B 85 180 41 30800 25180 3300 4400
7318 B 90 190 43 33280 27880 3100 4200
7319 B 95 200 45 35520 30800 3000 4000
7320 B 100 215 47 37770 33280 2700 3600
7321 B 105 225 49 42940 39800 2600 3500
7322 B 110 240 50 47890 46760 2400 3200

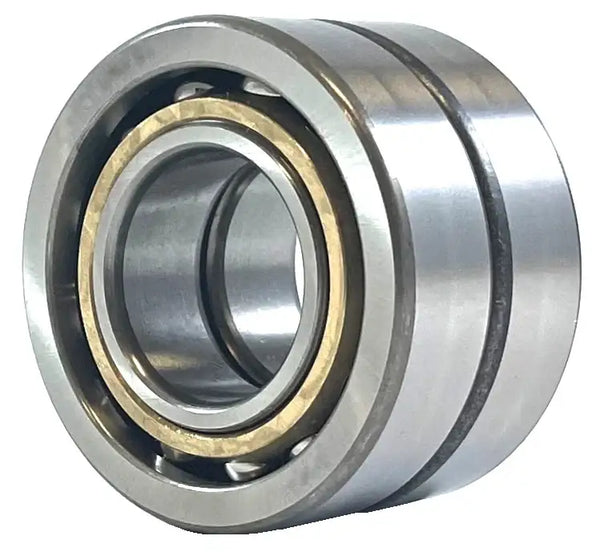

7300 Series Angular Contact Bearing Pair Sizes


Bearing Size d (mm) D (mm) B (mm) Dynamic Load Rating (LBS) Static Load Rating (LBS) Grease Limiting Speed (RPM) Oil Limiting Speed (RPM)
7301-BUA 12 37 24 3780 2200 15000 22000
7302-BUA 15 42 26 4460 2920 14000 20000
7303-BUA 17 47 28 5070 3640 12000 17000
7304-BUA 20 52 30 5920 3920 10000 13000
7305-BUA 25 62 34 8370 5980 8300 11000
7306-BUA 30 72 38 10100 7810 6900 9200
7307-BUA 35 80 42 11850 9110 6200 8200
7308-BUA 40 90 46 14510 11360 5500 7400
7309-BUA 45 100 50 18460 15340 4900 6600
7310-BUA 50 110 54 23610 19920 4400 5800
7311-BUA 55 120 58 27210 23380 4000 5400
7312-BUA 60 130 62 31030 27210 3700 5000
7313-BUA 65 140 66 35070 31250 3500 4600
7314-BUA 70 150 70 39350 35520 3200 4300
7315-BUA 75 160 74 42940 40020 3000 4000
7316-BUA 80 170 78 46540 44970 2800 3800
7317-BUA 85 180 82 50140 50140 2700 3500
7318-BUA 90 190 86 53960 55760 2500 3300
7319-BUA 95 200 90 57560 61380 2400 3200
7320-BUA 100 215 94 67600 66770 2200 2900
7321-BUA 105 225 98 69700 79810 2100 2800
7322-BUA 110 240 100 77790 93520 1900 2600
