5D QD Bushed Sheaves

5D QD Bushed Sheaves

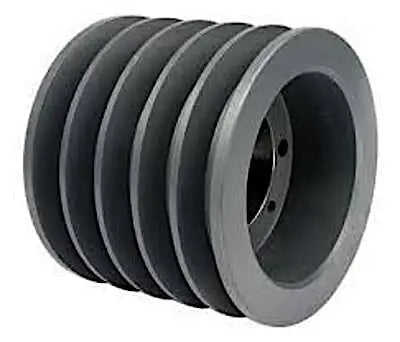

5D series five-groove QD bushed sheaves are manufactured for D-series classic v-belts, as well as D banded belts, they range from 12.64" to 58.64" in diameter. Depending on the sheave size they are made to use an F, J, or M QD (quick detachable) bushings, which we also stock. The majority of our 5D QD sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated and painted for anti-corrosion, and all of them are balanced at the factory for smooth machinery operation.

5D QD Sheave Size Chart


Size
Bushing Type
Type
Pitch Diameter
Outside Diameter
(E)
(F)
(L)
(M)
Sheave Weight (LBS)
5D120F F A 12.0" 12.64" 1-23/32" 7-1/2" 3-3/4" 2-1/32" 93
5D130F F A 13.0" 13.64" 1-23/32" 7-1/2" 3-3/4" 2-1/32" 96
5D135F F A 13.5" 14.14" 1-23/32" 7-1/2" 3-3/4" 2-1/32" 102
5D140F F A 14.0" 14.64" 1-23/32" 7-1/2" 3-3/4" 2-1/32" 106
5D145F F A 14.5" 15.14" 1-23/32" 7-1/2" 3-3/4" 2-1/32" 112
5D150F F A 15.0" 15.64" 1-23/32" 7-1/2" 3-3/4" 2-1/32" 120
5D155F F A 15.5" 16.14" 1-23/32" 7-1/2" 3-3/4" 2-1/32" 125
5D160F F A 16.0" 16.64" 1-23/32" 7-1/2" 3-3/4" 2-1/32" 130
5D180J J A 18.0" 18.64" 1-7/8" 7-1/2" 4-5/8" 1" 150
5D200J J A 20.0" 20.64" 1/8" 7-1/2" 4-5/8" 2-3/4" 160
5D220J J A 22.0" 22.64" 1/8" 7-1/2" 4-5/8" 2-3/4" 190
5D270M M A 27.0" 27.64" 11/32" 7-1/2" 6-3/4" 13/32" 260
5D330M M A 33.0" 33.64" 11/32" 7-1/2" 6-3/4" 13/32" 320
5D400M M A 40.0" 40.64" 11/32" 7-1/2" 6-3/4" 13/32" 390
5D480M M A 48.0" 48.64" 11/32" 7-1/2" 6-3/4" 13/32" 450
5D580M M A 58.0" 58.64" 11/32" 7-1/2" 6-3/4" 13/32" 500
