F50B17 Sprocket | Four Strand F50B17 Sprocket $0.00 -
F50B45 Sprocket | Four Strand F50B45 Sprocket $0.00 -
F50B54 Sprocket | Four Strand F50B54 Sprocket $0.00 -
F50B36 Sprocket | Four Strand F50B36 Sprocket $0.00 -
F50B35 Sprocket | Four Strand F50B35 Sprocket $0.00 -
F50B28 Sprocket | Four Strand F50B28 Sprocket $0.00 -
F50B60 Sprocket | Four Strand F50B60 Sprocket $0.00 -
F50B15 Sprocket | Four Strand F50B15 Sprocket $0.00 -
F50B22 Sprocket | Four Strand F50B22 Sprocket $0.00 -
F50B48 Sprocket | Four Strand F50B48 Sprocket $0.00 -
F50B27 Sprocket | Four Strand F50B27 Sprocket $0.00 -
F50B52 Sprocket | Four Strand F50B52 Sprocket $0.00 -
F50B24 Sprocket | Four Strand F50B24 Sprocket $0.00 -
F50B30 Sprocket | Four Strand F50B30 Sprocket $0.00 -
F50B26 Sprocket | Four Strand F50B26 Sprocket $0.00 -
F50B32 Sprocket | Four Strand F50B32 Sprocket $0.00 -
F50B14 Sprocket | Four Strand F50B14 Sprocket $0.00 -
F50B42 Sprocket | Four Strand F50B42 Sprocket $0.00 -
F50B19 Sprocket | Four Strand F50B19 Sprocket $0.00 -
F50B20 Sprocket | Four Strand F50B20 Sprocket $0.00 -
F50B25 Sprocket | Four Strand F50B25 Sprocket $0.00 -
F50B16 Sprocket | Four Strand F50B16 Sprocket $0.00 -
F50B40 Sprocket | Four Strand F50B40 Sprocket $0.00 -
F50B23 Sprocket | Four Strand F50B23 Sprocket $0.00

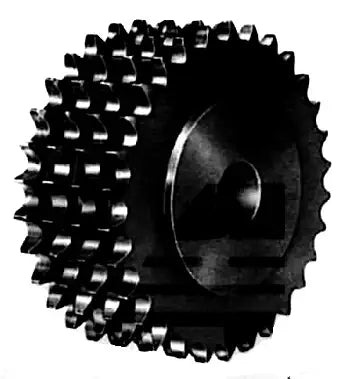

50-4 Chain Sprockets
Our four-strand 50-4 Roller Chain Sprockets are manufactured in accordance with ANSI B29 standards and boast high-precision tolerances for dependable and consistent performance with the 0.625" pitch chain. We also stock 50-4 roller chain and a wide range of other components such as v-belt pulleys, electric motors, gear reducers, bearings, and more! The below chart shows standard 50-4 chain sprockets but we also supply custom roller chain sprockets and specific bore sprockets. For more information or to get a quote please contact us and we will be happy to assist you!50-4 Quadruple Sprocket Size Chart
50-4 B-Hub Sprockets
|
|
Tooth Count | Outside Diameter | Stock Bore | Max. Recommended Bore | Hub Diameter | Length Thru Bore | Weight (LBS) |
|---|---|---|---|---|---|---|---|
| F50B13 | 13 | 2.910" | 5/8" | 1-1/8" | 1-7/8" | 3-1/4" | 3.20 |
| F50B14 | 14 | 3.110" | 3/4" | 1-1/4" | 2-1/16" | 3-1/4" | 3.70 |
| F50B15 | 15 | 3.320" | 3/4" | 1-11/16" | 2-9/32" | 3-1/4" | 4.40 |
| F50B16 | 16 | 3.520" | 3/4" | 1-3/4" | 2-15/32" | 3-1/4" | 5.20 |
| F50B17 | 17 | 3.720" | 3/4" | 1-3/4" | 2-11/16" | 3-1/4" | 6.00 |
| F50B18 | 18 | 3.920" | 1" | 1-3/4" | 2-7/8" | 3-1/4" | 6.60 |
| F50B19 | 19 | 4.120 | 1" | 1-3/4" | 3-1/16" | 3-1/4" | 7.50 |
| F50B20 | 20 | 4.320 | 1" | 1-13/16" | 3-1/4" | 3-3/8" | 8.80 |
| F50B21 | 21 | 4.520 | 1" | 1-13/16" | 3-1/4" | 3-3/8" | 9.60 |
| F50B22 | 22 | 4.720 | 1" | 2-1/8" | 3-5/8" | 3-3/8" | 11.00 |
| F50B23 | 23 | 4.920 | 1" | 2-1/8" | 3-5/8" | 3-3/8" | 11.90 |
| F50B24 | 24 | 5.120 | 1" | 2-1/8" | 3-5/8" | 3-3/8" | 12.80 |
| F50B25 | 25 | 5.320 | 1" | 2-1/4" | 3-3/4" | 3-3/8" | 13.00 |
| F50B26 | 26 | 5.520 | 1" | 2-1/4" | 3-3/4" | 3-3/8" | 15.00 |
| F50B27 | 27 | 5.720 | 1" | 2-1/4" | 3-3/4" | 3-3/8" | 16.10 |
| F50B28 | 28 | 5.920 | 1" | 2-1/4" | 3-3/4" | 3-3/8" | 17.20 |
| F50B30 | 30 | 6.320 | 1" | 2-1/4" | 3-3/4" | 3-1/2" | 19.90 |
| F50B32 | 32 | 6.720 | 1" | 2-1/4" | 3-3/4" | 3-1/2" | 22.40 |
| F50B35 | 35 | 7.320 | 1" | 2-1/4" | 3-3/4" | 3-1/2" | 26.60 |
| F50B36 | 36 | 7.520 | 1" | 2-5/8" | 4-1/4" | 3-1/2" | 28.90 |
| F50B40 | 40 | 8.320 | 1" | 2-5/8" | 4-1/4" | 3-1/2" | 35.20 |
| F50B42 | 42 | 8.720 | 1-3/16" | 2-5/8" | 4-1/4" | 3-1/2" | 38.30 |
| F50B45 | 45 | 9.310 | 1-3/16" | 2-5/8" | 4-1/4" | 3-1/2" | 43.70 |
| F50B48 | 48 | 9.910 | 1-3/16" | 2-5/8" | 4-1/4" | 3-1/2" | 49.50 |
| F50B52 | 52 | 10.710 | 1-3/16" | 2-5/8" | 4-1/4" | 3-1/2" | 57.90 |
| F50B54 | 54 | 11.110 | 1-5/16" | 2-5/8" | 4-1/4" | 3-1/2" | 62.00 |
| F50B60 | 60 | 12.300 | 1-5/16" | 2-5/8" | 4-1/4" | 3-5/8" | 76.70 |
