3V Ten-Groove QD Bushed Sheaves

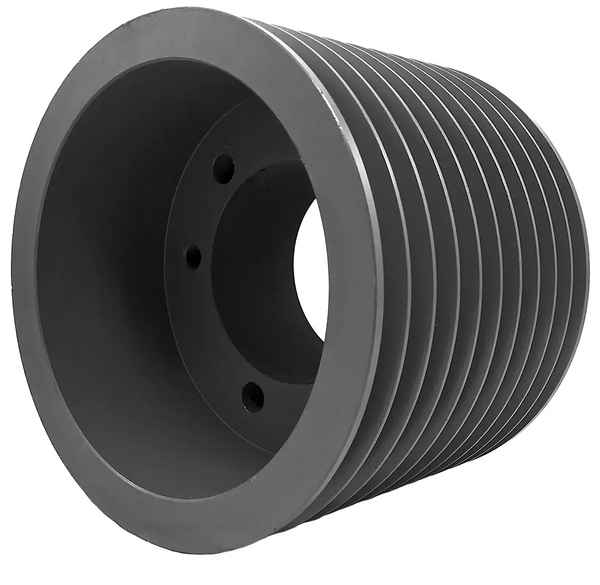

3V series ten-groove QD (quick detachable) bushed sheaves are manufactured for 3V, 3VX, banded 3V, and banded 3VX belts. They range from 4.75" to 33.50" in diameter. Depending on the sheave size they are made to use an SK, SF, E, or F QD bushing, which we also stock. The majority of our ten-groove 3V QD sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated and painted for anti-corrosion, and all of them are balanced at the factory for smooth machinery operation.

Ten-Groove 3V QD Sheave Size Chart

Size
Bushing Type
Type
Pitch Diameter
Outside Diameter
(E)
(F)
(L)
(M)
Weight (LBS)
103V475SK SK D 4.70" 4.75"
21/32 4 11/32 1 15/16 3 1/16 8.3
103V500SK SK D 4.95" 5.00" 21/32 4 11/32 1 15/16 3 1/16 9.5
103V530SK SK A 5.25" 5.30" 21/32 4 11/32 1 15/16 1 3/4 10.2
103V560SK SK A 5.55" 5.60" 21/32 4 11/32 1 15/16 1 3/4 11.4
103V600SK SK A 5.95" 6.00" 21/32 4 11/32 1 15/16 1 3/4 14.5
103V650SK SK A 6.45" 6.50" 21/32 4 11/32 1 15/16 1 3/4 17.5
103V690SK SK A 6.85" 6.90" 21/32 4 11/32 1 15/16 1 3/4 20.0
103V800SF SK A 7.95" 8.00" 21/32 4 11/32 2 1/16 1 5/8 24.0
103V1060E SF A 10.55" 10.60" 3/32 4 11/32 2 1/16 1 1/2 30.2
103V1400E E A 13.95" 14.00" 3/32 4 11/32 2 3/4 1 1/2 42.8
103V1900E E A 18.95" 19.00" 3/32 4 11/32 2 3/4 1 1/2 64.0
103V2500F E A 24.95" 25.00" 1/32 4 11/32 3 3/4 5/8 99.0
103V3350F F D 33.45" 33.50" 1/32 4 11/32 3 3/4 5/8 158.0
