3V Four-Groove QD Bushed Sheaves

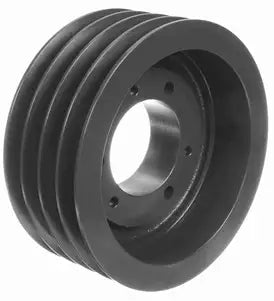

3V series four-groove QD (quick detachable) bushed sheaves are manufactured for 3V, 3VX, banded 3V, and banded 3VX belts. They range from 2.65" to 33.50" in diameter. Depending on the sheave size they are made to use a JA, SH, SDS, SK, SF, or E QD bushing, which we also stock. The majority of our four-groove 3V QD sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated and painted for anti-corrosion, and all of them are balanced at the factory for smooth machinery operation.

Four-Groove 3V QD Sheave Size Chart

Size
Bushing Type
Type
Pitch Diameter
Outside Diameter
(E)
(F)
(L)
(M)
Weight (LBS)
43V265JA JA D 2.60" 2.65" 3/8 1 29/32 1 1 9/32 1.3
43V280JA JA D 2.75" 2.80" 3/8 1 29/32 1 1 9/32 1.7
43V300SH SH E 2.95" 3.00" 1 1/2 1 29/32 1 5/16 29/32 2.0

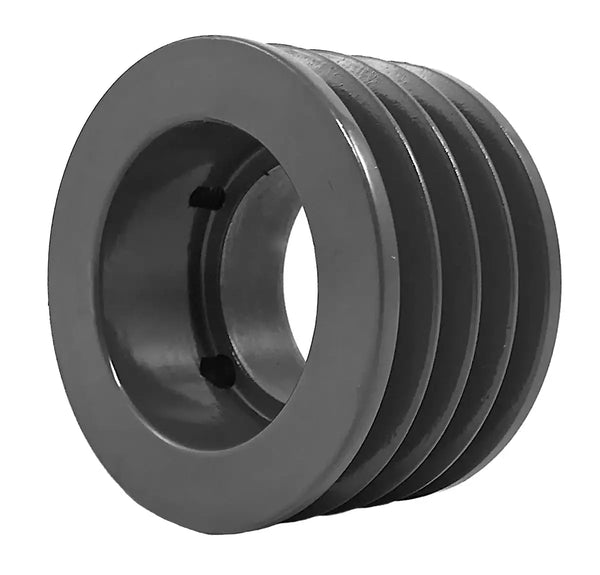

43V315SH SH E 3.10" 3.15" 1 1/2 1 29/32 1 5/16 29/32 2.2
43V335SH SH D 3.30" 3.35" 17/32 1 29/32 1 5/16 1 1/8 2.3
43V365SH SH D 3.60" 3.65" 17/32 1 29/32 1 5/16 1 1/8 2.8
43V412SH SH A 4.07" 4.12" 5/32 1 29/32 1 5/16 7/16 3.4
43V450SDS SDS A 4.45" 4.50" 5/32 1 29/32 1 5/16 7/16 4.0

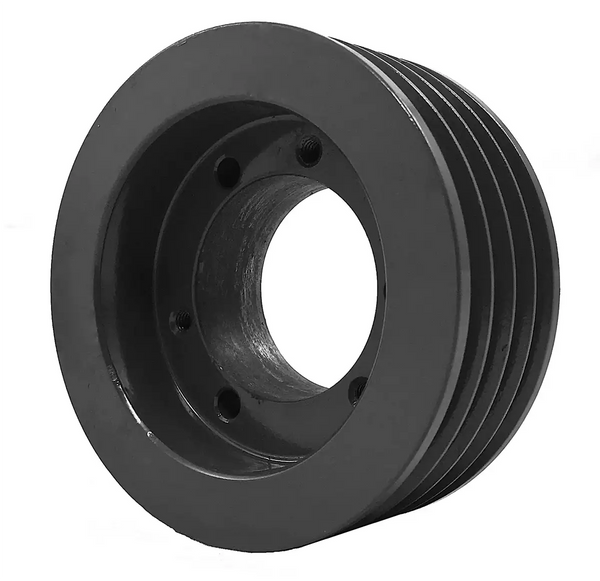

43V475SDS SDS A 4.70" 4.75" 5/32 1 29/32 1 5/16 7/16 4.6
43V500SDS SDS A 4.95" 5.00" 5/32 1 29/32 1 5/16 7/16 5.2
43V530SDS SDS A 5.25" 5.30" 5/32 1 29/32 1 5/16 7/16 5.8
43V560SDS SDS A 5.55" 5.60" 5/32 1 29/32 1 5/16 7/16 6.8
43V600SK SK D 5.95" 6.00" 5/32 1 29/32 1 15/16 1/8 8.3
43V650SK SK D 6.45" 6.50" 5/32 1 29/32 1 15/16 1/8 10.0
43V690SK SK D 6.85" 6.90" 5/32 1 29/32 1 15/16 1/8 11.9

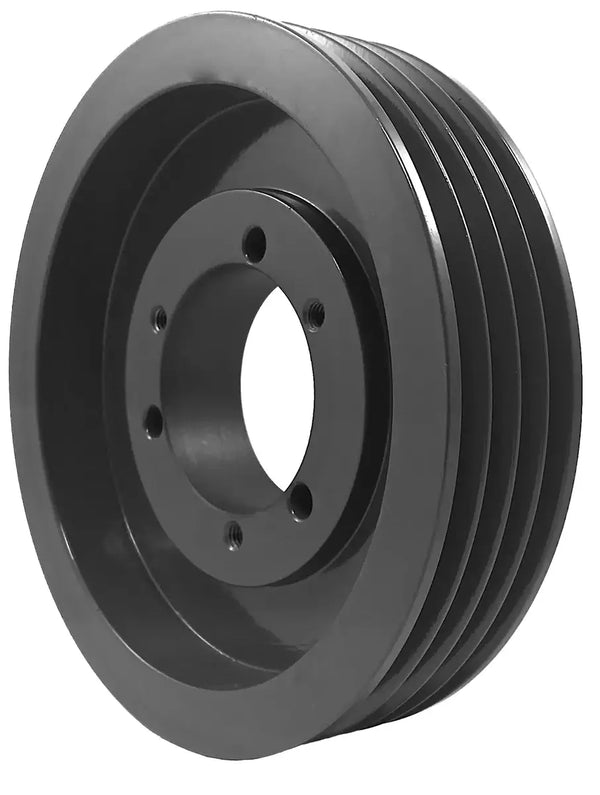

43V800SK SK D 7.95" 8.00" 5/32 1 29/32 1 15/16 1/8 13.0
43V1060SK SK D 10.55" 10.60" 5/32 1 29/32 1 15/16 1/8 16.5
43V1400SK SK D 13.95" 14.00" 5/32 1 29/32 1 15/16 1/8 22.5
43V1900SF SF D 18.95" 19.00" 7/32 1 29/32 2 1/16 1/16 35.0
43V2500SF SF D 24.95" 25.00" 7/32 1 29/32 2 1/16 1/16 57.0
43V3350E E C 33.45" 33.50" 21/32 1 29/32 2 3/4 3/6 84.0
