35-3 Triple Sprockets

Our triple 35-3 Roller Chain Sprockets are manufactured in accordance with ANSI B29 standards and boast high-precision tolerances for dependable and consistent performance. We also stock 35-3 triple roller chain and a wide range of other components such as v-belt pulleys, electric motors, gear reducers, bearings, and more! The below chart shows standard 35-3 chain sprockets but we also supply custom roller chain sprockets and specific bore sprockets. For more information or to get a quote please contact us and we will be happy to assist you!

35-3 Triple Sprocket Size Charts

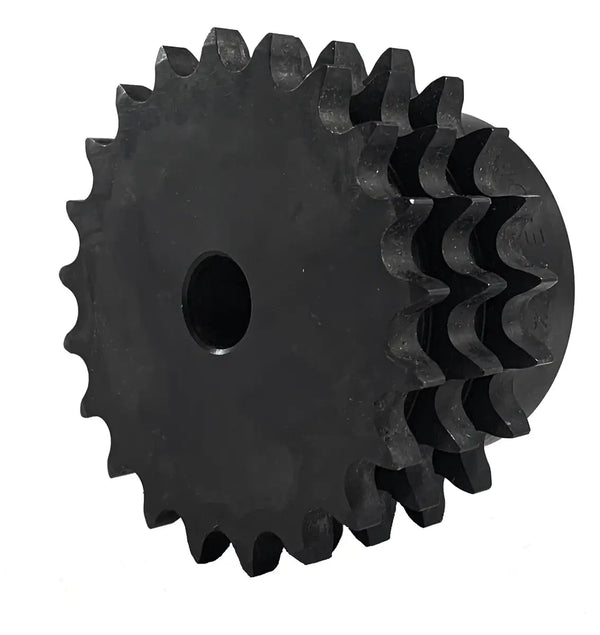

35-3 B-Hub Sprockets


Sprocket Size
Tooth Count
Outside Diameter
Stock Bore
Max. Recommended Bore
Hub Diameter
Length Thru Bore
Weight (LBS)
E35B13H 13 1.750" 1/2" 11/16" 1-7/16" 1-3/4" 0.50
E35B14H 14 1.870" 1/2" 7/8" 1-1/4" 1-3/4" 0.62
E35B15H 15 1.990" 1/2" 15/16" 1-13/32" 1-3/4" 0.78
E35B16H 16 2.110" 1/2" 15/16" 1-15/32" 1-3/4" 0.82
E35B17H 17 2.230" 1/2" 1-1/16" 1-19/32" 1-3/4" 1.04
E35B18H 18 2.350" 1/2" 1-3/16" 1-23/32" 1-3/4" 1.22
E35B19H 19 2.470" 1/2" 1-5/16" 1-7/8" 1-3/4" 1.40
E35B20H 20 2.590" 3/4" 1-5/16" 1-15/16" 1-7/8" 1.50
E35B21H 21 2.710" 3/4" 1-3/8" 2-1/16" 1-7/8" 1.72
E35B22H 22 2.830" 3/4" 1-7/16" 2-3/16" 1-7/8" 1.96
E35B23H 23 2.950" 3/4" 1-1/2" 2-1/4" 1-7/8" 2.12
E35B24H 24 3.070" 3/4" 1-1/2" 2-1/4" 1-7/8" 2.26
E35B25H 25 3.190" 3/4" 1-1/2" 2-1/4" 1-7/8" 2.42
E35B26 26 3.310" 3/4" 1-1/2" 2-1/2" 1-7/8" 2.78
E35B30 30 3.790" 3/4" 1-3/4" 2-1/2" 1-7/8" 3.42
E35B36 36 4.510" 3/4" 1-3/4" 2-1/2" 1-7/8" 4.52
E35B42 42 5.230" 3/4" 1-3/4" 2-1/2" 1-7/8" 5.88
E35B48 48 5.950" 3/4" 1-3/4" 2-1/2" 1-7/8" 7.42
E35B52 52 6.430" 3/4" 1-3/4" 2-1/2" 1-7/8" 8.52
E35B60 60 7.380" 3/4" 1-3/4" 2-1/2" 1-7/8" 11.22
E35B68 68 8.340" 3/4" 2-3/8" 3-1/2" 1-7/8" 15.38
E35B72 72 8.180" 3/4" 2-3/8" 3-1/2" 1-7/8" 17.34
E35B76 76 9.290" 3/4" 2-3/8" 3-1/2" 1-7/8" 18.90
E35B84 84 10.250" 3/4" 2-3/8" 3-1/2" 1-7/8" 22.82
E35B95 95 11.560" 1" 2-1/2" 3-3/4" 2-1/8" 29.32
E35B96 96 11.680" 1" 2-1/2" 3-3/4" 2-1/8" 30.06
E35B102 102 12.400" 1" 2-1/2" 3-3/4" 2-1/8" 33.36

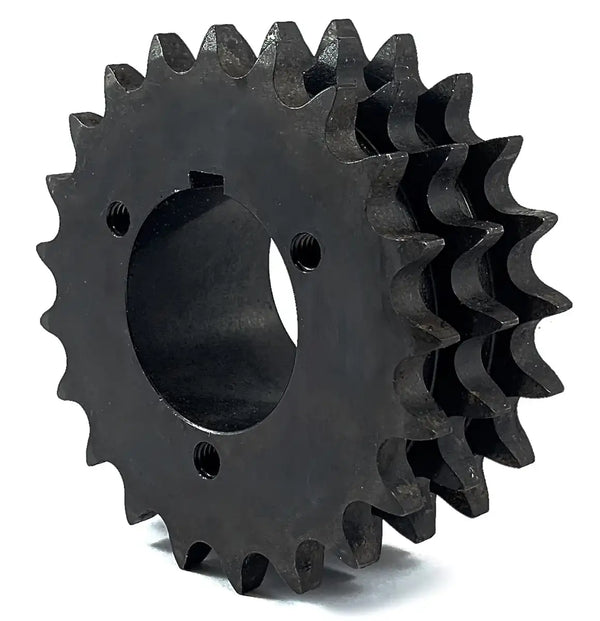

35-3 QD Bushed Sprockets


Sprocket Size
Tooth Count
Bushing Type
Outside Diameter
Pitch Diameter
Type
Max. Bore
(L1)
(L2)
(C)
(Y)
(P)
(X)
(T)
(W)
Weight (LBS)
E35SK68 68 SK 8.340" 8.120" C 2.625" 2.125" 2.125" 3.875" 5/8" 19/64" 1.25" 0.162" 0.960" 11.90
E35SK72 72 SK 8.810" 8.597" C 2.625" 2.125" 2.125" 3.875" 5/8" 19/64" 1.25" 0.162" 0.960" 13.56
E35SK76 76 SK 9.290" 9.074" C 2.625" 2.125" 2.125" 3.875" 5/8" 19/64" 1.25" 0.162" 0.960" 15.42
E35SK84 84 SK 10.250" 10.029" C 2.625" 2.125" 2.125" 3.875" 5/8" 19/64" 1.25" 0.162" 0.960" 18.92
E35SK95 95 SK 11.560" 11.342" C 2.625" 2.125" 2.125" 3.875" 5/8" 19/64" 1.25" 0.162" 0.960" 24.76
E35SK96 96 SK 11.680" 11.461" C 2.625" 2.125" 2.125" 3.875" 5/8" 19/64" 1.25" 0.162" 0.960" 25.58
E35SK102 102 SK 12.400" 12.177" C 2.625" 2.125" 2.125" 3.875" 5/8" 19/64" 1.25" 0.162" 0.960" 29.18
