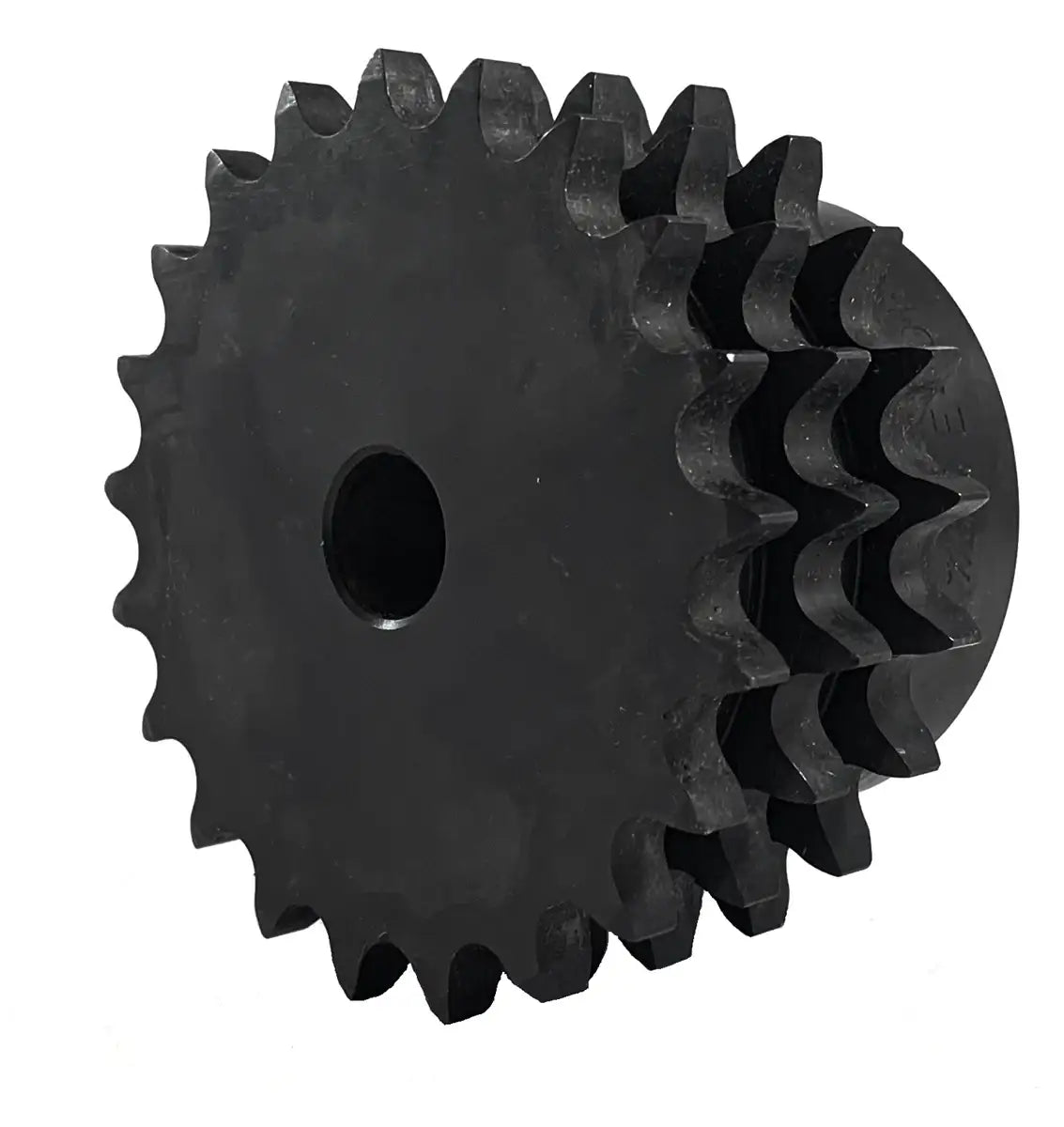

Triple E35B25H Sprocket
Note:
Custom Bore Sizes Available From Our In-House Machine Shop Facility!
SKU: E35B25H-SPROCKET
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Triple E35B25H Sprocket Description/Features
Triple E35B25H Sprocket Specifications
E35B25H Sprocket is a triple B-Hub roller chain sprocket with 25 teeth and a stock bore. Our triple E35B25H sprocket is dimensionally manufactured following ANSI Standards, which essentially means that it directly interchanges with other brands. More specifically to our sprocket, it is made utilizing high-quality mild steel and is made with high precision tolerances for optimal long-term performance. The sprocket also has heat-treated hardened teeth that further increases the working life and durability. Besides the sprocket, we also stock 35-3 triple roller chain, v-belts, v-belt pulleys, electric motors, gear reducers, bearings, and much more! For more information or to get a quote please contact our customer service team and we will be happy to assist you.
E35B25H Sprocket Dimensions
- Sprocket Size: E35B25H
- Tooth Count: 25
- Outside Diameter: 3.190"
- Sprocket Type: B
- Stock Bore: 3/4"
- Recommend Maximum Bore: 1-1/2"
- Hub Diameter: 2-1/4"
- Length Thru Bore: 1-7/8"
- Sprocket Weight: 2.42 LBS
- Sprocket Size: E35B25H
- Tooth Count: 25
- Outside Diameter: 3.190"
- Sprocket Type: B
- Stock Bore: 3/4"
- Recommend Maximum Bore: 1-1/2"
- Hub Diameter: 2-1/4"
- Length Thru Bore: 1-7/8"
- Sprocket Weight: 2.42 LBS
