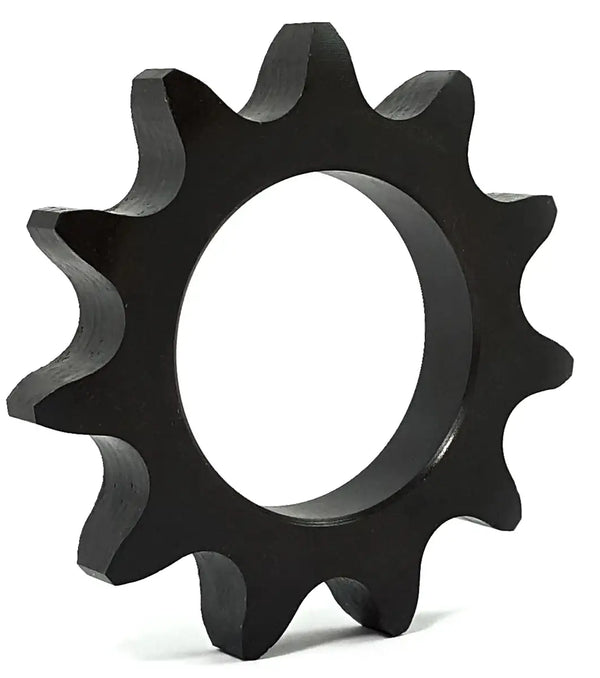

#100 Weld-On Hub Sprockets
#100 B-Hub Sprockets
#100 A-Plate Sprockets
#100 C-Hub Sprockets
#100 BTB Type Sprockets
#100 E Type Sprockets
#100 F Type Sprockets
#100 P Type Sprockets
#100 Q Type Sprockets
#100 R Type Sprockets
#100 SD Type Sprockets
#100 SF Type Sprockets
#100 SK Type Sprockets

#100 Roller Chain Sprockets

Our premium quality 100 roller chain sprockets utilize a high-grade carbon steel material and follow through with an anti-corrosive black oxide coating and feature hardened teeth (on tooth counts 30 or below). The combination of premium features and precision tolerance manufacturing make these size 100 sprockets a high-quality, reliable, and durable component for any conveyor or drive system. Being manufactured dimensionally in accordance with ANSI B29.1 Standards from the American National Standards Institute means that our sprocket is compatible with any ANSI 100 roller chain and directly replaces out any ANSI 100 sprocket with its equivalent size. We also supply custom bore or complete custom manufactured #100 chain sprockets upon request, in a range of material options ranging from stainless steel to aluminum. For additional information or assistance contact our customer support team.

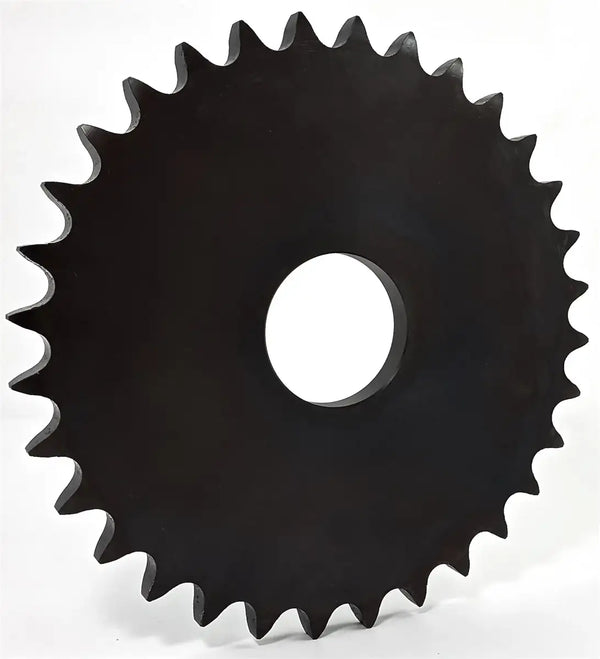

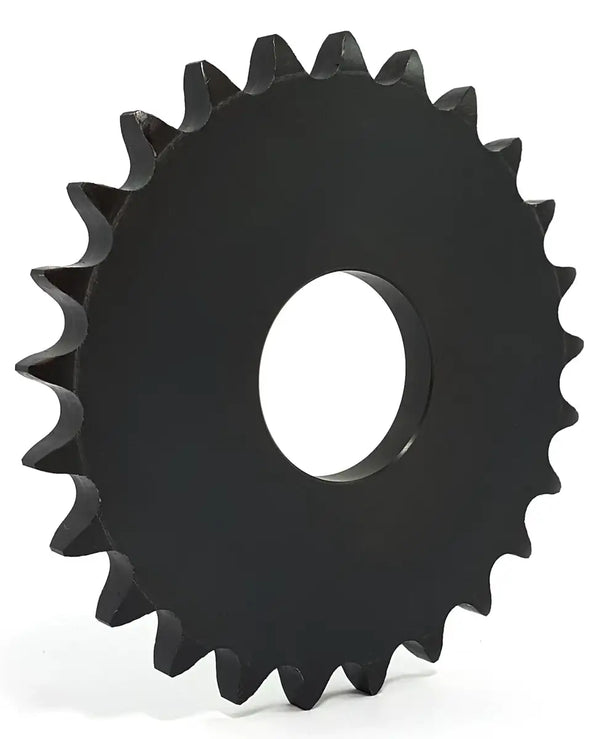

#100 A-Plate Sprockets


Sprocket Size Tooth Count Type Outside Diameter Stock Bore (D) Weight (LBS)
100A7 7 A 3.350 1'' - 1.2
100A8 8 A 3.770 1'' 2-7/16'' 1.4
100A9 9 A 4.180 1'' 2-13/16'' 1.6
100A10 10 A 4.600 1'' 3-1/4'' 2.0
100A11 11 A 5.010 4-1/4'' 3-9/16'' 2.5
100A12 12 A 5.420 4-1/4'' 4'' 3.0
100A13 13 A 5.820 4-1/4'' 3-7/8'' 3.5
100A14 14 A 6.230 4-1/4'' 4-3/16'' 4.1
100A15 15 A 6.630 4-1/4'' 4-1/2'' 4.7
100A16 16 A 7.030 4-1/4'' 4-1/2'' 5.4
100A17 17 A 7.440 4-1/4'' 4-1/2'' 6.1
100A18 18 A 7.840 4-1/4'' 4-1/2'' 7.0
100A19 19 A 8.240 4-1/4'' 4-1/2'' 7.8
100A20 20 A 8.620 4-1/4'' 4-1/2'' 8.8
100A21 21 A 9.040 4-1/4'' 4-1/2'' 9.8
100A22 22 A 9.440 4-1/4'' 4-1/2'' 10.5
100A23 23 A 9.840 4-1/4'' 4-1/2'' 11.8
100A24 24 A 10.250 4-1/4'' 4-1/2'' 12.8
100A25 25 A 10.650 4-1/4'' 4-1/2'' 13.9
100A26 26 A 11.050 4-1/4'' 5'' 15.0
100A27 27 A 11.440 4-1/4'' 5'' 16.0
100A28 28 A 11.840 4-1/4'' 5'' 17.4
100A29 29 A 12.240 4-1/4'' 5'' 19.6
100A30 30 A 12.640 4-1/4'' 5'' 20.1
100A31 31 A 13.040 4-1/4'' 5'' 21.5
100A32 32 A 13.440 4-1/4'' 5'' 22.6
100A33 33 A 13.840 4-1/4'' 5'' 24.1
100A34 34 A 14.240 4-1/4'' 5'' 26.0
100A35 35 A 14.640 4-1/4'' 5'' 27.2
100A36 36 A 15.040 4-1/4'' 5'' 30.0
100A37 37 A 15.440 4-1/4'' 5'' 31.0
100A38 38 A 15.840 4-1/4'' 5'' 33.0
100A39 39 A 16.230 4-1/4'' 5'' 35.0
100A40 40 A 16.630 4-1/4'' 5'' 36.0
100A41 41 A 17.030 4-1/4'' 5'' 39.0
100A42 42 A 17.430 4-1/4'' 5'' 40.0
100A43 43 A 17.830 1-1/2'' 5'' 43.0
100A44 44 A 18.230 1-1/2'' 5'' 45.0
100A45 45 A 18.630 1-1/2'' 5'' 47.0
100A46 46 A 19.020 1-1/2'' 5'' 48.0
100A47 47 A 19.420 1-1/2'' 5'' 52.0
100A48 48 A 19.820 1-1/2'' 6'' 54.0
100A49 49 A 20.220 1-1/2'' 6'' 56.0
100A50 50 A 20.620 1-1/2'' 6'' 57.0
100A51 51 A 21.020 1-1/2'' 6'' 63.0
100A52 52 A 21.420 1-1/2'' 6'' 64.0
100A53 53 A 21.810 1-1/2'' 6'' 64.2
100A54 54 A 22.210 1-1/2'' 6'' 68.0
100A55 55 A 22.610 1-1/2'' 6'' 70.0
100A56 56 A 23.010 1-1/2'' 6'' 72.0
100A57 57 A 23.410 1-1/2'' 6'' 75.8
100A58 58 A 23.810 1-1/2'' 6'' 76.0
100A59 59 A 24.200 1-1/2'' 6'' 77.0
100A60 60 A 24.600 1-1/2'' 6'' 80.0
100A70 70 A 28.580 1-1/2'' 7'' 113.0
100A72 72 A 29.380 1-1/2'' 7'' 119.0
100A76 76 A 30.973 1-1/2'' 7'' 133.0
100A80 80 A 32.570 1-1/2'' 7'' 146.0
100A84 84 A 34.160 1-1/2'' 7'' 162.0
100A90 90 A 36.550 1-1/2'' 7'' 193.0
100A96 96 A 38.930 1-1/2'' 7'' 215.0


#100 B-Hub Sprockets


Sprocket Size Tooth Count Type Outside Diameter Stock Bore Recommend Max. Bore Hub Diameter Length Thru Bore Weight (LBS)
100B8 8 B 3.770 1'' 1-1/4'' 2-7/16'' 1-7/8'' 2.3
100B9 9 B 4.180 1'' 1-5/8'' 2-13/16'' 1-7/8'' 3.2
100B10 10 B 4.600 1'' 1-7/8'' 3-1/4'' 1-7/8'' 4.1
100B11 11 B 5.010 1'' 2-1/4'' 3-9/16'' 1-7/8'' 5.3
100B12 12 B 5.420 1'' 2-1/4'' 4'' 1-7/8'' 6.4
100B13 13 B 5.820 1'' 2-3/8'' 3-7/8'' 1-5/8'' 6.6
100B14 14 B 6.230 1 -/4'' 2-3/4'' 4-3/16'' 1-5/8'' 7.4
100B15 15 B 6.630 1-1/4'' 3'' 4-1/2'' 1-3/4'' 9.2
100B16 16 B 7.030 1-5/16'' 3'' 4-1/2'' 1-3/4'' 9.9
100B17 17 B 7.440 1-5/16'' 3'' 4-1/2'' 1-3/4'' 10.8
100B18 18 B 7.840 1-5/16'' 3'' 4-1/2'' 1-3/4'' 11.5
100B19 19 B 8.240 1-5/16'' 3'' 4-1/2'' 2'' 13.1
100B20 20 B 8.620 1-5/16'' 3'' 4-1/2'' 2'' 14.2
100B21 21 B 9.040 1-5/16'' 3''
4-1/2'' 2'' 15.3
100B22 22 B 9.440 1-5/16'' 3'' 4-1/2'' 2'' 16.1
100B23 23 B 9.840 1-1/4'' 3'' 4-1/2'' 2'' 17.2
100B24 24 B 10.250 1-1/4'' 3'' 4-1/2'' 2'' 19.2
100B25 25 B 10.650 1-1/4'' 3'' 4-1/2'' 2'' 19.5
100B26 26 B 11.050 1-1/4'' 3-5/16'' 5'' 2'' 21.7
100B27 27 B 11.440 1-1/4'' 3-5/16'' 5'' 2'' 23.0
100B28 28 B 11.840 1-1/4'' 3-5/16'' 5'' 2'' 24.4
100B29 29 B 12.240 1-1/4'' 3-5/16'' 5'' 2'' 25.0
100B30 30 B 12.640 1-1/4'' 3-5/16'' 5'' 2'' 26.9
100B32 32 B 13.440 1-1/4'' 3-5/16'' 5'' 2'' 29.8
100B35 35 B 14.640 1-1/4'' 3-5/16'' 5'' 2-1/2'' 36.9
100B36 36 B 15.040 1-1/4'' 3-5/16'' 5'' 2-1/2'' 38.6
100B38 38 B 15.840 1-1/4'' 3-5/16'' 5'' 2-1/2'' 41.5
100B39 39 B 16.230 1-1/4'' 3-5/16'' 5'' 2-1/2'' 43.6
100B40 40 B 16.630 1-1/4'' 3-5/16'' 5'' 2-1/2'' 46.9
100B42 42 B 17.430 1-1/4'' 3-5/16'' 5'' 2-1/2'' 50.4
100B45 45 B 18.630 1-1/2'' 3-5/16'' 5'' 2-1/2'' 54.0
100B48 48 B 19.820 1-1/2'' 4'' 6'' 2-1/2'' 66.0

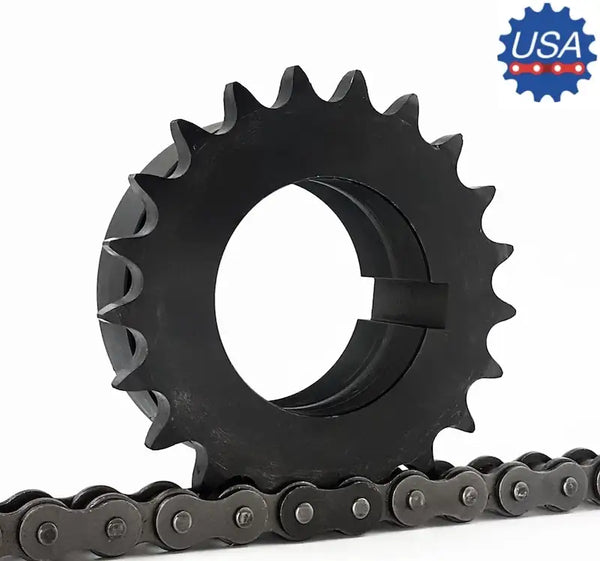

#100 C-Hub Sprockets


Sprocket Size Tooth Count Type Outside Diameter Stock Bore Recommend Max. Bore Hub Diameter Length Thru Bore Weight (LBS)
100C10 10 C 4.600 1'' 1-7/8'' 3-9/32 2-7/8'' 6.13
100C11 11 C 5.010 1'' 2-1/4'' 3-9/16'' 2-7/8'' 7.12
100C12 12 C 5.420 1'' 2-1/46'' 4'' 2-7/8'' 8.37
100C13 13 C 5.820 1'' 2-3/8'' 3-57/64'' 2-7/8'' 10.00
100C14 14 C 6.230 1'' 2-3/4'' 43/16'' 2-7/8'' 12.19
100C60 60 C 24.600 1-1/2'' 4'' 6'' 3-1/4'' 89.0
100C70 70 C 28.580 1-1/2'' 5-1/4'' 7'' 3-3/4'' 125.0
100C72 72 C 29.380 1-1/2'' 5-1/4'' 7'' 3-3/4'' 134.0
100C76 76 C 30.973 1-1/2'' 5-1/4'' 7'' 3-3/4'' 143.0
100C80 80 C 32.570 1-1/2'' 5-1/4'' 7'' 3-3/4'' 151.0
100C84 84 C 34.160 1-1/2'' 5-1/4'' 7'' 3-3/4'' 170.0
100C90 90 C 36.550 1-1/2'' 5-1/4'' 7'' 3-3/4'' 184.0
100C96 96 C 38.930 1-1/2'' 5-1/4'' 7'' 4-1/2'' 203.0
100C54 54 C 22.210 1-1/2'' 4'' 6'' 3-1/4'' 78.0

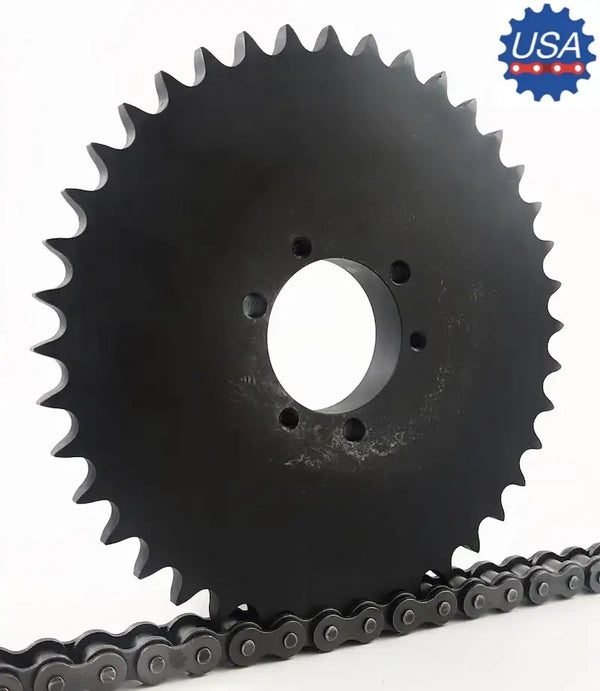

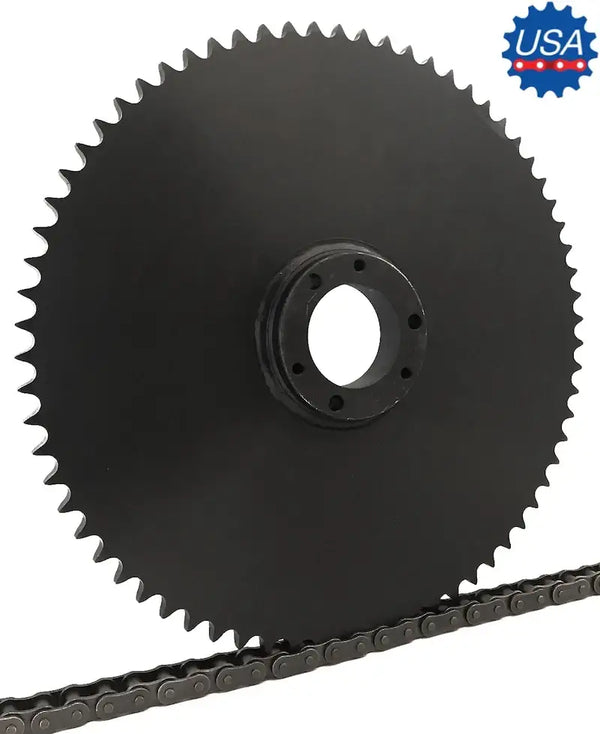

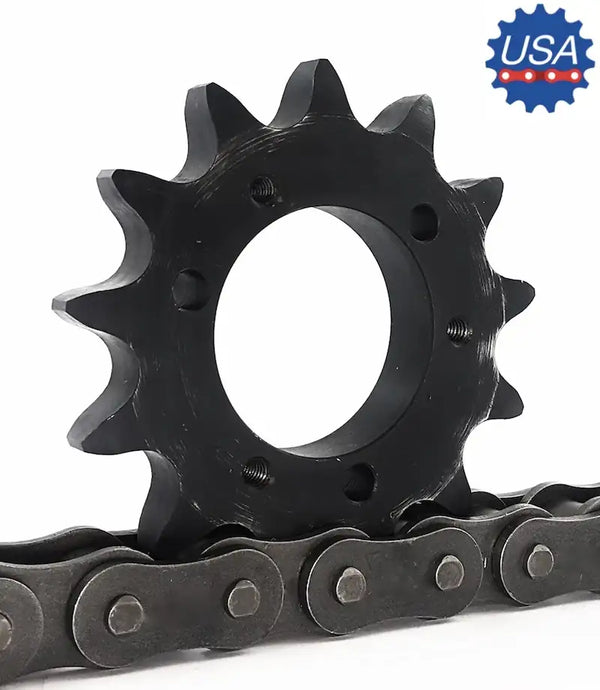

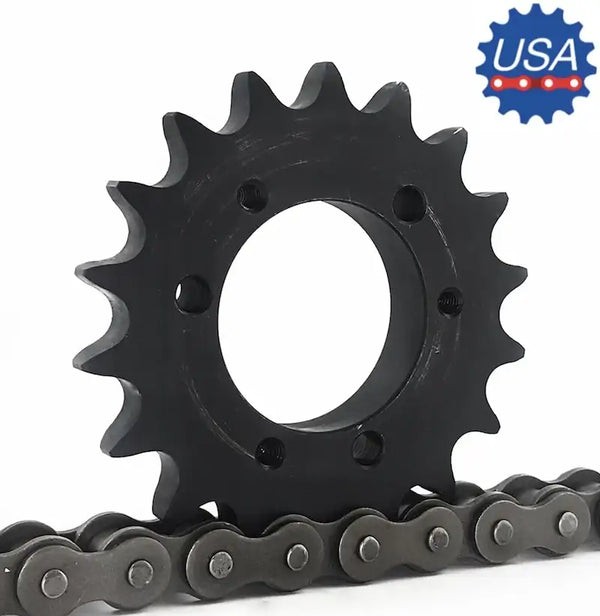

#100 QD Sprockets


Sprocket Size Tooth Count Bushing Outside Diameter Pitch Diameter Type Max. Bore Dimension (L1) Dimension (L2) Dimension (C) Dimension (Y) Dimension (G) Dimension (T) Weight (LBS)
100SDS11 11 SDS 5.010 4.437 B 2'' 1-1/2'' 1-1/2'' 3-3/16'' 5/8'' 1/16'' 0.692 2.0
100SDS12 12 SDS 5.420 4.830 B 2'' 1-1/2'' 1-1/2'' 3-3/16'' 5/8'' 1/16'' 0.692 2.6
100SK13 13 SK 5.820 5.223 B 2-5/8'' 2-1/8'' 2-1/8'' 3-7/8'' 1-13/64'' 9/16'' 0.692 3.3
100SK14 14 SK 6.230 5.617 B 2-5/8'' 2-1/8'' 2-1/8'' 3-7/8'' 1-13/64'' 9/16'' 0.692 4.1
100SF15 15 SF 6.630 6.012 B 2-15/16 2-1/4'' 2-1/4'' 4-5/8'' 1-19/64'' 9/16'' 0.692 4.8
100SF16 16 SF 7.030 6.407 B 2-15/16 2-1/4'' 2-1/4'' 4-5/8'' 1-19/64'' 9/16'' 0.692 5.6
100SF17 17 SF 7.440 6.803 B 2-15/16 2-1/4'' 2-1/4'' 4-5/8'' 1-19/64'' 9/16'' 0.692 6.5
100E18 18 E 7.840 7.198 B1 3-1/2'' 2-5/8'' 2-15/16'' 6'' 1-13/16'' 15/16'' 0.692 9.0
100E19 19 E 8.240 7.595 B1 3-1/2'' 2-5/8'' 2-15/16'' 6'' 1-13/16'' 15/16'' 0.692 10.2
100E20 20 E 8.640 7.991 B1 3-1/2'' 2-5/8'' 2-15/16'' 6'' 1-13/16'' 15/16'' 0.692 11.6
100E21 21 E 9.040 8.387 B1 3-1/2'' 2-5/8'' 2-15/16'' 6'' 1-13/16'' 15/16'' 0.692 12.54
100E22 22 E 9.440 8.783 B1 3-1/2'' 2-5/8'' 2-15/16'' 6'' 1-13/16'' 15/16'' 0.692 13.5
100E23 23 E 9.840 9.180 B1 3-1/2'' 2-5/8'' 2-15/16'' 6'' 1-13/16'' 15/16'' 0.692 14.6
100E24 24 E 10.250 9.557 B1 3-1/2'' 2-5/8'' 2-15/16'' 6'' 1-13/16'' 15/16'' 0.692 15.7
100E25 25 E 10.650 9.973 B1 3-1/2'' 2-5/8'' 2-15/16'' 6'' 1-13/16'' 15/16'' 0.692 16.8
100E26 26 E 11.050 10.370 B1 3-1/2'' 2-5/8'' 2-15/16'' 6'' 1-13/16'' 15/16'' 0.692 18.1
100E27 27 E 11.440 10.767 B1 3-1/2'' 2-5/8'' 2-15/16'' 6'' 1-13/16'' 15/16'' 0.692 19.2
100E28 28 E 11.840 11.164 B1 3-1/2'' 2-5/8'' 2-15/16'' 6'' 1-13/16'' 15/16'' 0.692 20.7
100E30 30 E 12.640 11.958 B1 3-1/2'' 2-5/8'' 2-15/16'' 6'' 1-13/16'' 15/16'' 0.692 23.2
100E32 32 E 13.440 12.753 B1 3-1/2'' 2-5/8'' 2-15/16'' 6'' 1-13/16'' 15/16'' 0.692 25.4
100E35 35 E 14.640 13.945 B1 3-1/2'' 2-5/8'' 2-15/16'' 6'' 1-13/16'' 15/16'' 0.692 30.5
100E36 36 E 15.040 14.342 B1 3-1/2'' 2-5/8'' 2-15/16'' 6'' 1-13/16'' 15/16'' 0.692 32.3
100E40 40 E 16.630 15.935 B1 3-1/2'' 2-5/8'' 2-15/16'' 6'' 1-13/16'' 15/16'' 0.692 39.1
100E42 42 E 17.430 16.727 B1 3-1/2'' 2-5/8'' 2-15/16'' 6'' 1-13/16'' 15/16'' 0.692 43.4
100E45 45 E 18.630 17.920 B1 3-1/2'' 2-5/8'' 2-15/16'' 6'' 1-13/16'' 15/16'' 0.692 48.9
100E48 48 E 19.820 19.112 B1 3-1/2'' 2-5/8'' 2-15/16'' 6'' 1-13/16'' 15/16'' 0.692 54.0

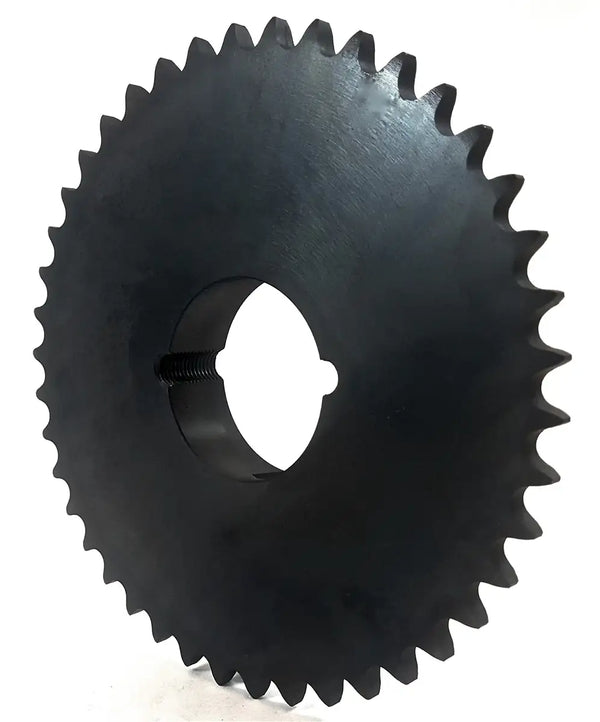

#100 Taper Bushed Sprockets


Sprocket Size Tooth Count Bushing Outside Diameter Pitch Diameter Max. Bore Dimension (L) Dimension (C) Type Weight (LBS)
100BTB11 11 1615 5.007 4.437 1-5/8'' 1-1/2'' 3'' B 2.7
100BTB12 12 1615 5.415 4.830 1-5/8'' 1-1/2'' 3-1/4'' B 3.5
100BTB13 13 2012 5.821 5.223 2'' 1-1/4'' 3-9/16'' B 3.6
100BTB14 14 2012 6.227 5.617 2'' 1-1/4'' 3 -9/16'' B 3.9
100BTB15 15 2517 6.631 6.012 2-1/2'' 1-3/4'' 4-1/4'' B 5.0
100BTB16 16 2517 7.034 6.407 2-1/2'' 1-3/4'' 4-1/2'' B 6.4
100BTB17 17 2517 7.437 6.803 2-1/2'' 1-3/4'' 4-1/2'' B 7.1
100BTB18 18 2517 7.839 7.198 2-1/2'' 1-3/4'' 4-1/2'' B 7.8
100BTB19 19 2517 8.241 7.594 2-1/2'' 1-3/4'' 4-1/2'' B 8.7
100BTB20 20 2517 8.642 7.991 2-1/2'' 1-3/4'' 4-1/2'' B 9.6
100BTB21 21 2517 9.043 8.387 2-1/2'' 1-3/4'' 4-1/2'' B 10.6
100BTB22 22 2517 9.444 8.783 2-1/2'' 1-3/4'' 4-1/2'' B 11.0
100BTB24 24 2517 10.245 9.577 2-1/2'' 1-3/4'' 4-1/2'' B 13.0
100BTB26 26 2517 44.045 10.370 2-1/2'' 1-3/4'' 4-1/2'' B 15.0
100BTB28 28 3020 11.844 11.164 3'' 2'' 5-1/4'' B 16.5
100BTB30 30 3020 12.643 11.958 3'' 2'' 5-1/4'' B 22.0
100BTB32 32 3020 13.442 12.753 3'' 2'' 5-1/4'' B 23.0
100BTB35 35 3020 14.639 13.945 3'' 2'' 5-1/4'' B 28.0
100BTB36 36 3020 15.038 14.342 3'' 2'' 5-1/4'' B 31.0
100BTB40 40 3020 16.633 15.932 3'' 2'' 5-1/4'' B 37.0
100BTB45 45 3020 18.626 17.919 3'' 2'' 5-1/4'' B 46.0
100BTB48 48 3020 19.821 19.112 3'' 2'' 5-1/4'' B 53.0
100BTB54 54 3020 22.212 21.498 3'' 2'' 5-1/4'' B 62.0
100BTB60 60 3020 24.601 23.884 3'' 2'' 5-1/4'' B 72.0


#100 Taper Bushed Sprockets


Sprocket Size Tooth Count Bushing Outside Diameter Pitch Diameter Type Max. Bore Dimension (OL) Dimension (L) Dimension (C) Dimension (H) Dimension (P) Dimension (T) Weight (LBS)
100P11H 11 P1 5.010 4.437 4 1-3/4'' 2-3/16'' 1-15/16'' - 3'' 1-1/4'' 0.692 2.8
100Q12H 12 Q1 5.420 4.830 4 2-11/16'' 2-27/32'' 2-1/2'' 1/16'' 4-1/8'' 1-7/8'' 0.692 3.5
100Q13H 13 Q1 5.820 5.223 4 2-11/16'' 2-27/32'' 2-1/2'' 1/16'' 4-1/8'' 1-7/8'' 0.692 4.3
100Q14H 14 Q1 6.230 5.617 4 2-11/16'' 2-25/32'' 2-1/2'' - 4-1/8'' 1-13/16'' 0.692 5.6
100Q15H 15 Q1 6.630 6.012 4 2-11/16'' 2-25/32'' 2-1/2'' - 4-1/8'' 1-13/16'' 0.692 6.6
100Q16H 16 Q1 7.030 6.407 4 2 -11/16'' 2-25/32'' 2-1/2'' - 4-1/8'' 1-13/16'' 0.692 7.4
100Q17H 17 Q1 7.440 6.803 4 2-11/16'' 2-25/32'' 2-1/2'' - 4-1/8'' 1-13/16'' 0.692 8.2
100Q18H 18 Q1 7.840 7.198 4 2-11/16'' 2-25/32'' 2-1/2'' - 4-1/8'' 1-13/16'' 0.692 9.0
100Q19H 19 Q1 8.240 7.595 4 2-11/16'' 2-25/32'' 2-1/2'' - 4-1/8'' 1-13/16'' 0.692 9.8
100Q20H 20 Q1 8.640 7.991 4 2-11/16'' 2-25/32'' 2-1/2'' - 4-1/8'' 1-13/16'' 0.692 10.9
100Q21H 21 Q1 9.040 8.387 4 2-11/16'' 2-25/32'' 2-1/2'' - 4-1/8'' 1-13/16'' 0.692 11.8
100R21H 21 R1 9.040 8.387 4 3-3/4'' 3-3/4'' 2-7/8'' - 5-3/8'' 2-3/16'' 0.692 13.3
100Q22H 22 Q1 9.440 8.783 4 2 -1/16'' 2-25/32'' 2-1/2'' - 4-1/8'' 1-13/16'' 0.692 12.6
100Q23H 23 Q1 9.840 9.180 4 2-11/16'' 2-25/32'' 2-1/2'' - 4-1/8'' 1-13/16'' 0.692 13.8
100Q24H 24 Q1 10.250 9.577 4 2-11/16'' 2-25/32'' 2-1/2'' - 4-1/8'' 1-13/16'' 0.692 15.4
100R24H 24 R1 10.250 9.577 4 3-3/4'' 3-3/4'' 2-7/8'' - 5-3/8'' 2-3/16'' 0.692 15.6
100Q25H 25 Q1 10.650 9.973 4 2-11/16'' 2-25/32'' 2-1/2'' - 4-1/8'' 1-13/16'' 0.692 16.0
100R25H 25 R1 10.650 9.973 4 3-3/4'' 3-3/4'' 2-7/8'' - 5-3/8'' 2-3/16'' 0.692 17.0
100Q26H 26 Q1 11.050 10.370 4 2-11/16'' 2-25/32'' 2-1/2'' - 4-1/8'' 1-13/16'' 0.692 17.3
100R26H 26 R1 11.050 10.370 4 3-3/4'' 3-3/4'' 2-7/8'' - 5-3/8'' 2-3/16'' 0.692 17.9
100Q27H 27 Q1 11.440 10.767 4 2-11/16'' 2 25/32'' 2-1/2'' - 4-1/8'' 1-13/16'' 0.692 18.2
100R27H 27 R1 11.440 10.767 4 3-3/4'' 3 3/4'' 2-7/8'' - 5-3/8'' 2-3/16'' 0.692 19.6
100Q28H 28 Q1 11.840 11.164 4 2-11/16'' 2-25/32'' 2-1/2'' - 4-1/8'' 1-13/16'' 0.692 19.6
100R28H 28 R1 11.840 11.164 4 3-3/4'' 3-3/4'' 2-7/8'' - 5-3/8'' 2-3/16'' 0.692 21.0
100Q30H 30 Q1 12.640 11.958 4 2-11/16'' 2 -25/32'' 2-1/2'' - 4-1/8'' 1-13/16'' 0.692 22.4
100R30H 30 R1 12.640 11.958 4 3-3/4'' 3-3/4'' 2-7/8'' - 5-3/8'' 2-3/16'' 0.692 24.5
100Q32 32 Q1 13.440 12.753 4 2-11/16'' 2-25/32'' 2-1/2'' - 4-1/8'' 1-13/16'' 0.692 25.3
100R32 32 R1 13.440 12.753 4 3-3/4'' 3-3/4'' 2-7/8'' - 5-3/8'' 2-3/16'' 0.692 26.5
100Q35 35 Q1 14.640 13.945 4 2-11/16'' 2-25/32'' 2-1/2'' - 4-1/8'' 1-13/16'' 0.692 30.2
100R35 35 R1 14.640 13.945 4 3-3/4'' 3-3/4'' 2-7/8'' - 5-3/8'' 2-3/16'' 0.692 29.8
100R36 36 R1 15.040 14.342 4 3-3/4'' 3-5/32'' 2-7/8'' - 5-3/8'' 2-3/16'' 0.692 33.0
100R40 40 R1 16.630 15.932 4 3-3/4'' 3-3/4'' 2-7/8'' - 5-3/8'' 2-3/16'' 0.692 40.9
100R42 42 R1 17.430 16.727 4 3-3/4'' 3-3/4'' 2-7/8'' - 5-3/8'' 2-3/16'' 0.692 44.3
100R45 45 R1 18.630 17.920 4 3-3/4'' 3-3/4'' 2-7/8'' - 5-3/8'' 2-3/16'' 0.692 50.5
100R48 48 R1 19.820 19.112 4 3-3/4'' 3-3/4'' 2-7/8'' - 5-3/8'' 2-3/16'' 0.692 57.5
100R54 54 R1 22.210 21.498 5 3-3/4'' 3-3/4'' 2-7/8'' 1-5/16'' 5-3/8'' 7/8'' 0.692 69.0
100R60 60 R1 24.600 23.884 5 3-3/4'' 3-3/4'' 2-7/8'' 1-5/16'' 5-3/8'' 7/8'' 0.692 54.0
100R70 70 R1 28.580 27.862 5 3-3/4'' 3-3/4'' 2-7/8'' 1-5/16'' 5-3/8'' 7/8'' 0.692 104.0
100R72 72 R1 29.380 28.657 5 3-3/4'' 3-3/4'' 2-7/8'' 1-5/16'' 5-3/8'' 7/8'' 0.692 106.0
100R80 80 R1 32.570 31.839 5 3-3/4'' 3-3/4'' 2-7/8'' 1-5/16'' 5-3/8'' 7/8'' 0.692 135.0
100R84 84 R1 34.160 33.430 5 3-3/4'' 3-3/4'' 2-7/8'' 1-5/16'' 5-3/8'' 7/8'' 0.692 138.0





We stock and supply a full line of high-quality ANSI #100 roller chain sprockets in a very wide range of configurations including; A-Plate, B-Hub, C-Hub, Idler, QD, Taper Bushed, Stainless Steel, Plastic, Single, Double, Double-Single, Triple, and more! We supply sprockets to a wide range of customers including; Re-Sellers, OEMs, large & small end users, and Government Entities. The #100 roller chain sprockets we offer exceed in quality, performance and working life due to the manufacturing standards that have been set for these sprockets. Additionally, we offer a line of 1045 Premium Hardened Steel Black-Oxide Coated #100 Sprockets for the toughest and most demanding applications. All of our #100 sprockets fully meet all ANSI standards to ensure a proper contact between the sprocket and roller chain. We also offer a full line of high quality #100 roller chain at some of the most competitive prices and widest selection in the industry. To get a quote on #100 roller chain sprockets or if you have any questions please contact us and we will be happy to assist you!

Phone: (407) 347-3519
Email: sales@usarollerchain.com
See What All We Offer "Here"!
#100 Weld-On Hub Sprockets
#100 Weld-On Hub Sprockets
Shop Now
#100 B-Hub Sprockets
#100 B-Hub Sprockets
Shop Now
#100 A-Plate Sprockets
#100 A-Plate Sprockets
Shop Now
#100 C-Hub Sprockets
#100 C-Hub Sprockets
Shop Now
#100 BTB Type Sprockets
#100 BTB Type Sprockets
Shop Now
#100 E Type Sprockets
#100 E Type Sprockets
Shop Now
#100 F Type Sprockets
#100 F Type Sprockets
Shop Now
#100 P Type Sprockets
#100 P Type Sprockets
Shop Now
#100 Q Type Sprockets
#100 Q Type Sprockets
Shop Now
#100 R Type Sprockets
#100 R Type Sprockets
Shop Now
#100 SD Type Sprockets
#100 SD Type Sprockets
Shop Now
#100 SF Type Sprockets
#100 SF Type Sprockets
Shop Now
#100 SK Type Sprockets
#100 SK Type Sprockets
Shop Now

Frequently Asked Questions

  • If your order is less than $300, no problem! Please give us a call at 407-347-3519 or email Sales@usarollerchain.com, and we will be happy to assist you!

  • USA Roller Chain utilizes an extensive network of vendors and warehouses to ensure you get your items quickly! Our primary roller chain warehouse is located in Clermont, FL, but we have warehouses located all across the United States. Your order will be shipped from the closest warehouse to you that has your requested product in stock. This speeds up transit times and saves you money on shipping! If you have any questions about where an item will ship from, please CONTACT US

  • In-stock items are typically shipped out in 1-3 business days.Made-to-order item lead times vary from 1-2 days up to 14-20+ weeks, depending on the product. If you need your items urgently, please let us know, and we will do our best to meet your required delivery date! If you have any questions, please CONTACT US

  • If you are having an issue with your order, please CONTACT US as soon as possible so we can resolve it for you.

    Most in-stock items can be returned within 30 days of the shipment date. MTO or Custom orders are not eligible for a return or refund. For a detailed explanation of our return policies, please click here.

  • Absolutely! We may be called "USA Roller Chain", but we ship worldwide! Please CONTACT US for Export/International quotes or orders.
