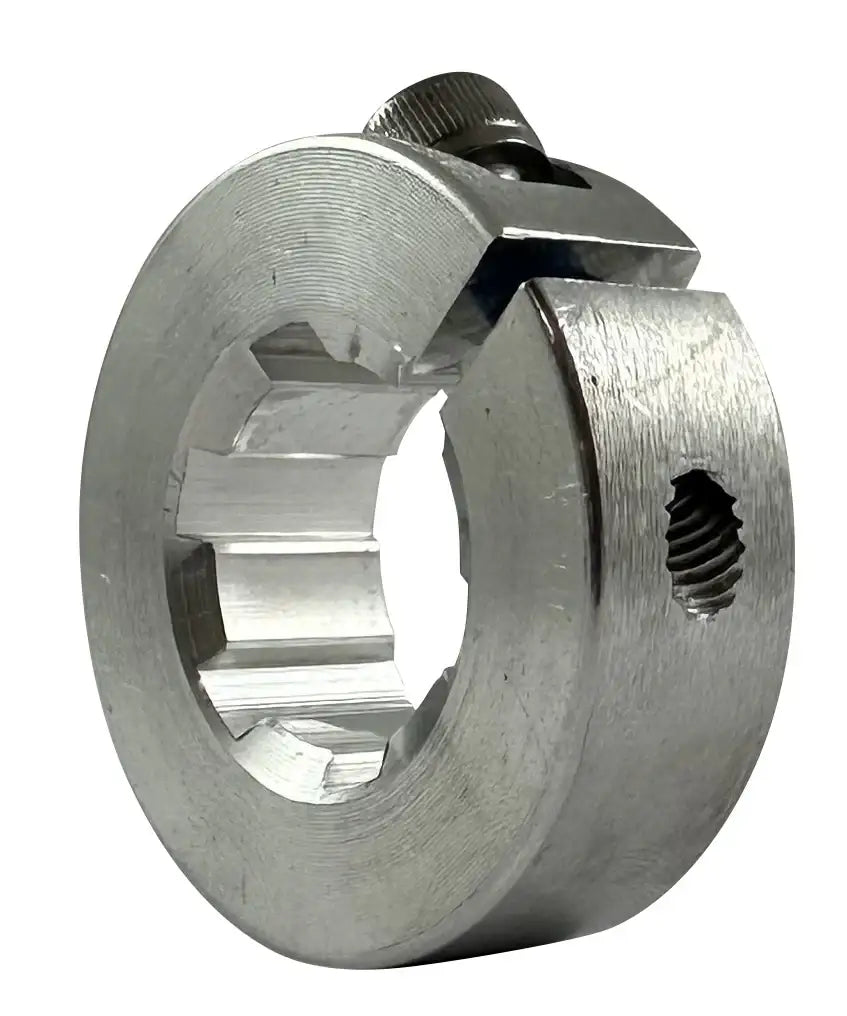

6 Splined Shaft Collar For 20mm Splined Shaft - Aluminium

Alternative Views:

Our Price: $93.99

Availability: Usually Ships in 1 to 2 Weeks
Product Code: 64862500-COLLAR

Qty:

Description

Technical Specs

Our premium aluminum 6-splined shaft collar, crafted for a 20mm splined shaft, meets ISO and DIN 14 standards and is precision-machined from high-grade aluminum for reduced weight and abrasion resistance. It features splines that align perfectly with the shaft, ensuring a secure grip. This design facilitates effective torque transmission, prevents slippage, and allows for axial movement if needed. Splined shaft collars are commonly used in applications requiring precise positioning and secure attachment, such as in machinery, automotive systems, and various industrial equipment. For additional details or to request a quote on our aluminum 6-splined shaft collar, please reach out to our customer service team, and we will gladly assist you!

20mm Splined Shaft Collar Dimensions

Part #: 64862500
Material: Aluminium
Profile: KN 16 X 20
Collar Version: 1
Dimension (A): 40mm
Dimension (d): 16mm
Dimension (L): 15mm
Dimension (R): 47.6mm
Screw: M6 X 16
Weight: 42 Grams
