World Wide Electric SMR7-15/1 Reducer

World Wide SMR7-15 Reducer

Note: Available In Sizes 2-10 (Ratios 15:1 - 25:1)
Warranty: 2-Years

Availability: Typically In-Stock
Product Code: SMR7-15-REDUCER

Get a Quote
Call to Order 407-347-3519

Description

Technical Specs

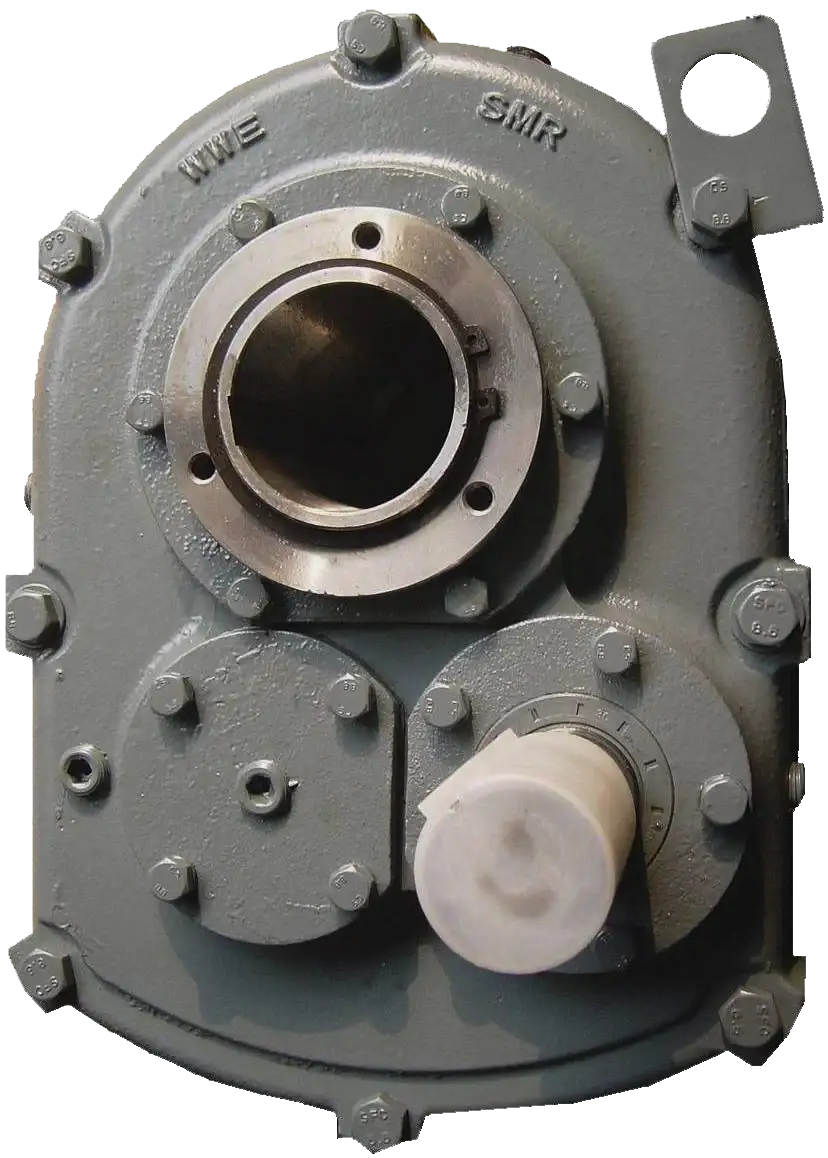

World Wide Electric SMR7-15/1 reducer is a high quality and extremely durable 15:1 shaft mount reducer. This reducer is a dimensional equivalent to the popular TXT series gearboxes and will even work with all TXT compatible accessories. Also for new applications we can supply a full line of motor mounts, belt guards, tapered bushings, and backstops.

One thing that really makes this a premium quality reducer is that both the shafts and gears are manufactured from a high grade steel, then case hardened, and then precision ground to A.G.M.A. Standards. The reducer also uses premium ball and tapered bushings for smooth operation and lower noise. All shafts use metal reinforced double lip seals to prevent oil leakage and articles from getting in. Then to wrap it all up the housing is made of a heavy duty FCD45 cast iron for corrosion resistance.

SMR7-15 Reducer Dimensions

Part #: SMR7-15
Ratio: 15:1
Box Size: 7
Dimension (L): 18.75"
Dimension (M): 25.94"
Dimension (N): 12.85"
Dimension (F): 2.4375"
Key: 0.625" X 0.312" X 4.75"
Maximum Dimension (B): 3-15/16"
Dimension (C): 2.06"
Dimension (E): 7.25"
Dimension (G): 3.75"
Dimension (W): 2.00"
Dimension (U): 2.75"
Dimension (X): 6.38"
Dimension (V): 4.69"
Dimension (Q): 6.35"
Dimension (Y): 2.50"
Dimension (H): 7.75"
Dimension (A1): 5.11"
Dimension (A2): 9.74"
Dimension (A3): 8.30"
Dimension (h): 9.38"
Minimum Dimension (R): 29.44"
Maximum Dimension (R): 35.44"
Dimension (P): 0.63"
Dimension (T): 4.75"
Gear Box Weight: 487 LBS

The World Wide Electric SMR7-15/1 reducer also interchanges with most other brands. To find out more, or to get pricing and availability please contact us and we will be happy to assist you.
