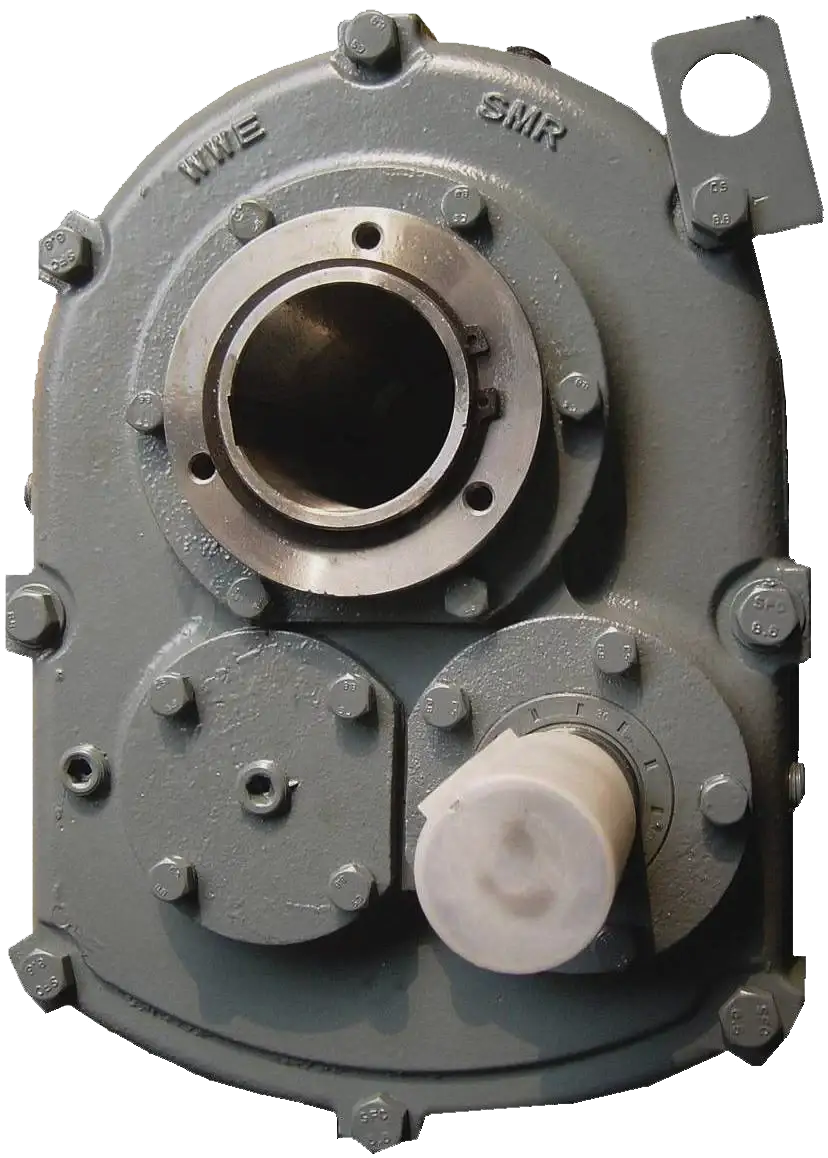

World Wide Electric SMR3-25/1 Reducer

World Wide Electric SMR3-25/1 Reducer

Note: Custom Cut to Length Chain Also Available
Product Code: SMR3-25-REDUCER
Other Customers Viewed
BG3 Belt Guard
BG3 Belt Guard
Login
MM3A Motor Mount
MM3A Motor Mount
Login
SMR3 Torque Arm
SMR3 Torque Arm
Login
View full details
Description
Specification
World Wide Electric SMR3-25/1 reducer is a high quality and extremely durable 25:1 shaft mount reducer. This reducer is a dimensional equivalent to the popular TXT series gearboxes and will even work with all TXT compatible accessories. Also for new applications we can supply a full line of motor mounts, belt guards, tapered bushings, and backstops.

One thing that really makes this a premium quality reducer is that both the shafts and gears are manufactured from a high grade steel, then case hardened, and then precision ground to A.G.M.A. Standards. The reducer also uses premium ball and tapered bushings for smooth operation and lower noise. All shafts use metal reinforced double lip seals to prevent oil leakage and articles from getting in. Then to wrap it all up the housing is made of a heavy duty FCD45 cast iron for corrosion resistance.



SMR3-25 Reducer Dimensions


  • Part #: SMR3-25
  • Ratio: 25:1
  • Box Size: 3
  • Dimension (L): 9.25"
  • Dimension (M): 12.88"
  • Dimension (N): 9.22"
  • Dimension (F): 1.25" Length
  • Key: 0.25" X 0.125" X 2.875"
  • Maximum Dimension (B): 2-3/16""
  • Dimension (C): 1.50"
  • Dimension (E): 4.38"
  • Dimension (G): 2.34"
  • Dimension (W): 1.06"
  • Dimension (U): 1.25"
  • Dimension (X): 4.52"
  • Dimension (V): 3.30"
  • Dimension (Q): 4.34"
  • Dimension (Y): 1.59"
  • Dimension (H): 5.63"
  • Dimension (A1): 2.33"
  • Dimension (A2): 4.78"
  • Dimension (A3): 4.17"
  • Dimension (h): 4.84"
  • Minimum Dimension (R): 26.94"
  • Maximum Dimension (R): 32.94"
  • Dimension (P): 0.44"
  • Dimension (T): 3.00"
  • Gear Box Weight: 106 LBS



The World Wide Electric SMR3-25/1 reducer also interchanges with most other brands. To find out more, or to get pricing and availability please contact us and we will be happy to assist you.

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • Premium Quality Reducer
  • Typically In Stock
  • Extremely Durable
  • High Performance
