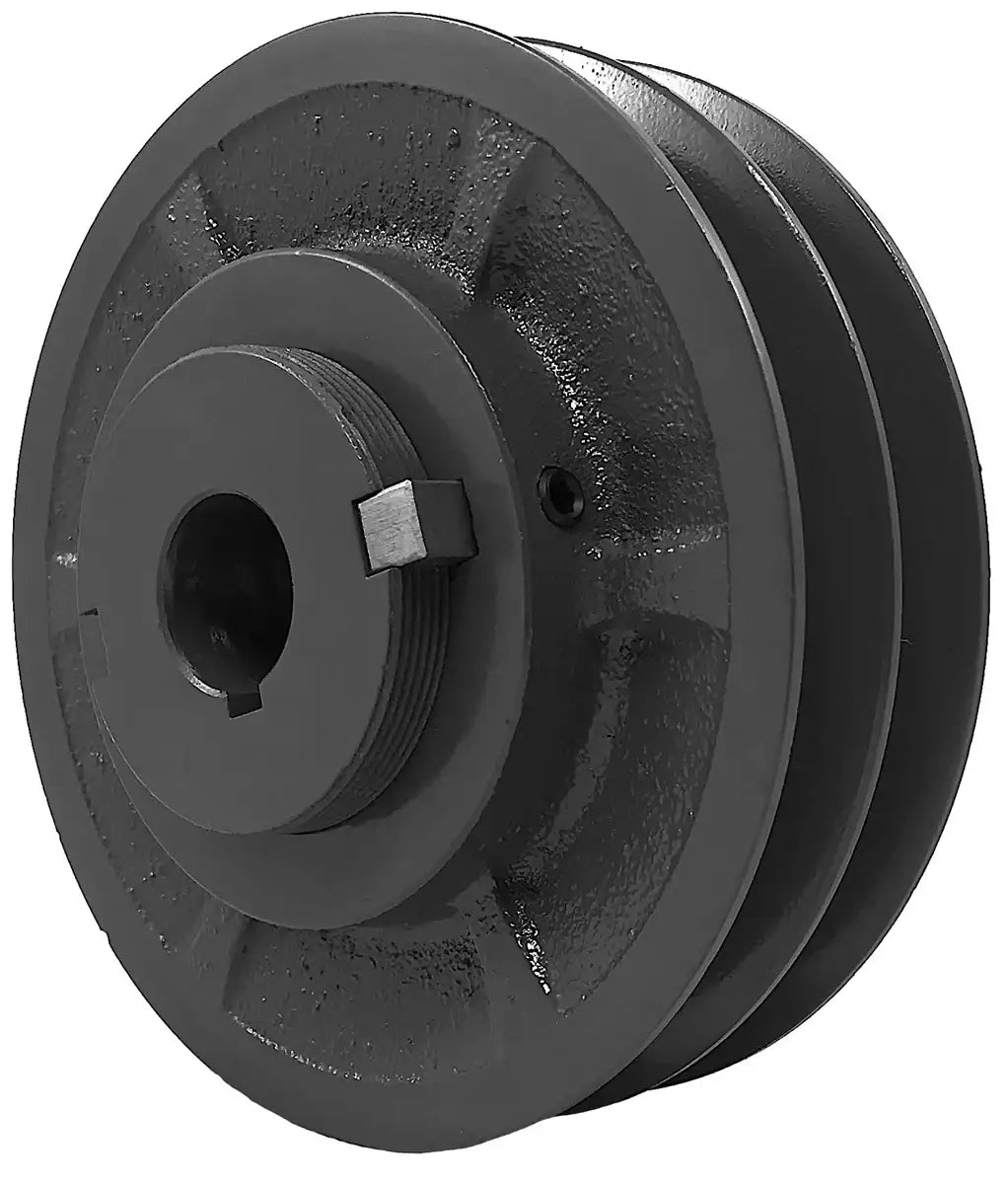

Variable Pitch 2VP50 Pulley 1"
Variable Pitch 2VP50 Pulley 1
Variable Pitch 2VP50 Pulley 1"

Our Price: $64.99
Note: Fits Belt Types: 3L, 4L, A, AX
Note: Made From Extreme Duty Cast Iron
Note: Phosphated and Painted For Corrosion Resistance
Note: Dynamically Balanced For Smooth Operation/ Extended Equipment Life


Product Code: 2VP50-PULLEY-1
Qty:

Description Technical Specs

Variable Pitch 2VP50 Pulley 1" is designed and engineered in a way that allows for precise adjustments in diameter, which will also correlate to speed adjustment. Our double-groove variable pitch pulleys are manufactured with extremely tight thread tolerances and use a high-quality cast iron material. They are extremely well balanced to reduce vibrations and are phosphated and painted for corrosion resistance. Besides 2VP50 pulleys with a 1" bore we also stock a full line of high-quality performance 3L, A, 4L, and AX v-belts as well as a full line of industrial power transmission components.

2VP50 Pulley 1" Dimensions


  • Pulley Size: 2VP50
  • Bore Size: 1"
  • Keyway Size: 1/4" X 1/8"
  • 3L Minimum Pitch: 3.3"
  • Turns Open: 4
  • 3L Maximum Pitch: 4.1"
  • Turns Open: 0
  • 4L/ A Minimum Datum: 3.4"
  • Turns Open: 5
  • 4L/ A Maximum Datum: 4.4"
  • Turns Open: 0
  • Pulley Type: 5
  • Outside Diameter: 4.75"
  • Dimension (F) Maximum: 2-1/8"
  • Dimension (F) Minimum: 1-3/8"
  • Dimension (G) Maximum: 7/8"
  • Dimension (G) Minimum: 1/2"
  • Dimension (L): 3"
  • Dimension (K): 1-3/16"
  • Pulley Weight: 6.3 LBS

USA Roller Chain and Sprockets is easy to work with and we offer an extensive inventory, high-quality products at competitive prices, and fast response times. We sell to end users, distributors, as well as OEMs all around the world. For more information or to get a formal quote on an 2VP50 variable pitch pulley with 1" bore and other products please contact us and we will be happy to assist you.
About Us
Features
    • High Performance
    • Extremely Durable
    • Corrosion Resistant
    • Dynamically Balanced
