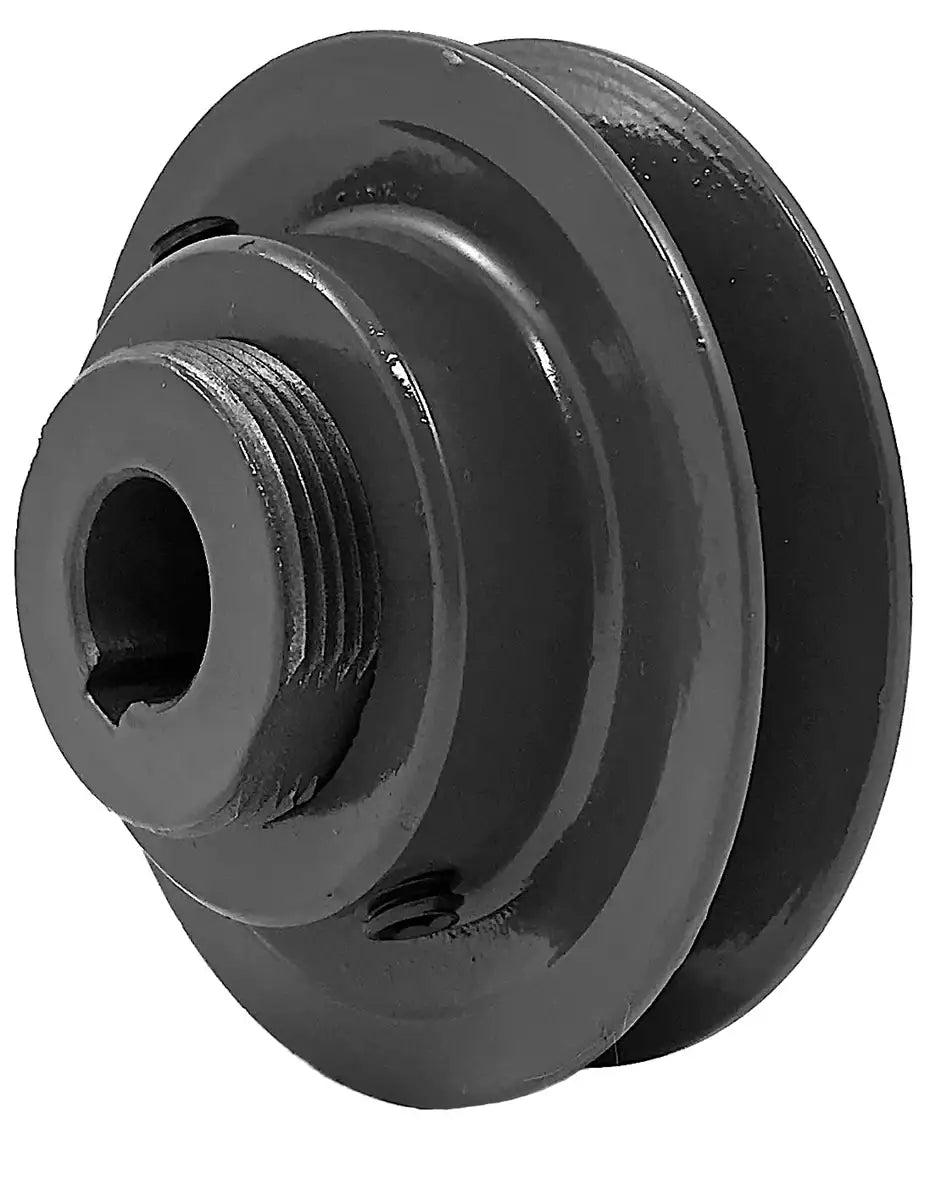

Variable Pitch 1VP30 Pulley 5/8"
Variable Pitch 1VP30 Pulley 58
Variable Pitch 1VP30 Pulley 5/8"

Alternative Views:
Our Price: $25.99
Note: Fits Belt Types: 3L, 4L, A, AX
Note: Made From Extreme Duty Cast Iron
Note: Phosphated and Painted For Corrosion Resistance
Note: Dynamically Balanced For Smooth Operation/ Extended Equipment Life


Product Code: 1VP30-PULLEY-58
Qty:

Description Technical Specs

Variable Pitch 1VP30 Pulley 5/8" is designed and engineered in a way that allows for precise adjustments in diameter, which will also correlate to speed adjustment. Our single-groove variable pitch pulleys are manufactured with extremely tight thread tolerances and use a high-quality cast iron material. They are extremely well balanced to reduce vibrations and are phosphated and painted for corrosion resistance. Besides 1VP30 pulleys with a 5/8" bore we also stock a full line of high-quality performance 3L, A, 4L, and AX v-belts as well as a full line of industrial power transmission components.

1VP30 Pulley 5/8" Dimensions


  • Pulley Size: 1VP30
  • Bore Size: 5/8"
  • Keyway Size: 3/16" X 3/32"
  • 3L Minimum Pitch: 1.8"
  • Turns Open: 4
  • 3L Maximum Pitch: 2.7"
  • Turns Open: 0
  • Pulley Type: 1
  • Outside Diameter: 2.87"
  • Dimension (F) Maximum: 13/16"
  • Dimension (F) Minimum: 9/16"
  • Dimension (G) Maximum: 5/8"
  • Dimension (G) Minimum: 3/8"
  • Dimension (L): 1-21/32"
  • Dimension (K): 19/32"
  • Pulley Weight: 1.1 LBS

USA Roller Chain and Sprockets is easy to work with and we offer an extensive inventory, high-quality products at competitive prices, and fast response times. We sell to end users, distributors, as well as OEMs all around the world. For more information or to get a formal quote on an 1VP30 variable pitch pulley with 5/8" bore and other products please contact us and we will be happy to assist you.
About Us
Features
    • High Performance
    • Extremely Durable
    • Corrosion Resistant
    • Dynamically Balanced
