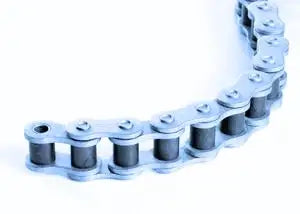

This premium quality #35 corrosion resistant coated roller chain outperforms the competition by providing increased durability, longer wear life, and much higher strengths. This chain is manufactured using high quality carbon steel with a baked on coating for corrosion resistance. Each component has been heat treated to increase fatigue, wear life, and strength. The corrosion resistant coating is put on in a way to ensure the maximum working life and is more resistant to corrosion than nickel plated roller chain. Premier Series roller chains feature solid bushings & solid rollers for a dramatically increased wear life and working loads. This roller chain is commonly supplied in 10ft boxes including one connecting link per box, and fully meets all ANSI standards. USA Roller Chain & Sprockets offers a full line of attachments and sprockets for this chain, we can even supply it in different lengths per request. For additional information, please contact us!

Dimensions:

• Chain Size: #35 Coated Roller Chain
• Tensile Strength: 2,530lbs
• Working Load: 484lbs

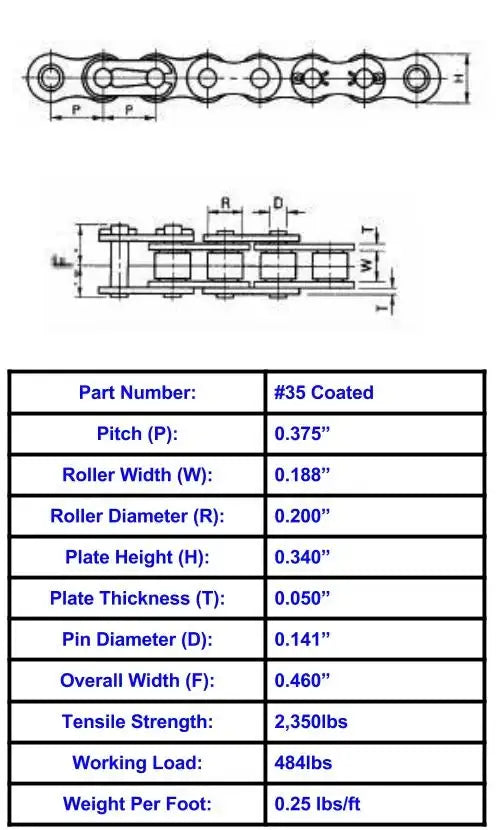

• **Note: All Dimensions Are in Inches**
• Pitch (P): 0.375
• Roller Width (W): 0.188
• Roller Diameter (R): 0.200
• Plate Height (H): 0.340
• Plate Thickness (T): 0.050
• Pin Diameter (D): 0.1410
• Overall Width (F): 0.460
