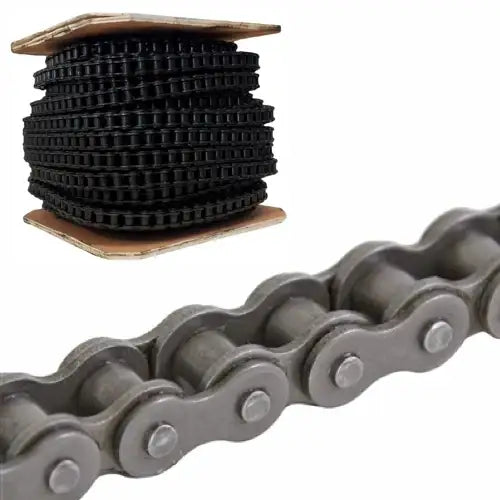

100ft reels of #50 chain are typically used for applications that require a long continuous length of chain or when smaller lengths are required and using long lengths reduce drop. Economy Plus #50 roller chain is dimensionally manufactured to ANSI B29.1 Standards. This means that it will directly interchange with other ANSI certified roller chains and will operate properly on #50 chain sprockets. All Economy Plus series roller chains are manufactured using heat-treated precision components and are supplied pre-lubricated from the factory.

Economy Plus #50 Roller Chain Dimensions

• Pitch (P): 0.625"
• Roller Width (W): 0.375"
• Roller Diameter (D): 0.400"
• Overall Width (A): 0.800"
• Plate Height (H): 0.591"
• Plate Thickness (T): 0.079"
• Pin Diameter (E): 0.200"
• Tensile Strength: 6,100 LBS
• Weight Per Foot: 0.713 LBS
