Economy Plus A2040 Roller Chain - 10ft Box
Economy Plus A2040 Roller Chain - 10ft Box
Note:
Custom Cut to Length Chain Also Available
Product Code: ECO-A2040-ROLLER-CHAIN
Couldn't load pickup availability

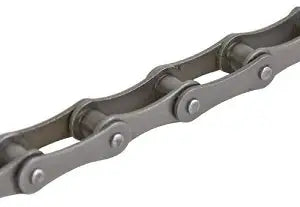

Economy Plus A2040 roller chain is manufactured to ANSI Specifications and is a good quality roller chain. This chain is also commonly referred to as A2040 agricultural roller chain due to its heavy usage in the agriculture industry but is used in a very wide range of other applications too. A2040 roller chain is typically supplied as 10ft boxes including one connecting link per box, be alternate lengths are available upon request. Additionally we offer a full line of high-quality A2040 chain sprockets right off the shelf! Fore more information or to get a quote on sprockets please contact us and we will be happy to assist you.
Dimensions:
Phone: (407) 347-3519
Email:sales@usarollerchain.com
See What All We Offer "Here"!
Dimensions:
- Chain Size: A2040
- Pitch (P): 1.00"
- Roller Width (W): 0.312"
- Roller Diameter (R): 0.312"
- Plate Height (H): 0.463"
- Plate Thickness (T): 0.060"
- Pin Diameter (D): 0.156"
- Chain Width (F): 0.640"
- Connecting Link Width (G): 0.750"
- Tensile Strength: 3,700 LBS
- Weight: 0.30 LBS/ FT
Phone: (407) 347-3519
Email:
See What All We Offer "Here"!
Feature
- Good Quality Roller Chain
- Economically Priced
- Fully Meets All ANSI Standards
- Double Pitch Series Chain
- Chain Size: A2040
- Pitch (P): 1.00"
- Roller Width (W): 0.312"
- Roller Diameter (R): 0.312"
- Plate Height (H): 0.463"
- Plate Thickness (T): 0.060"
- Pin Diameter (D): 0.156"
- Chain Width (F): 0.640"
- Connecting Link Width (G): 0.750"
- Tensile Strength: 3,700 LBS
- Weight: 0.30 LBS/ FT
