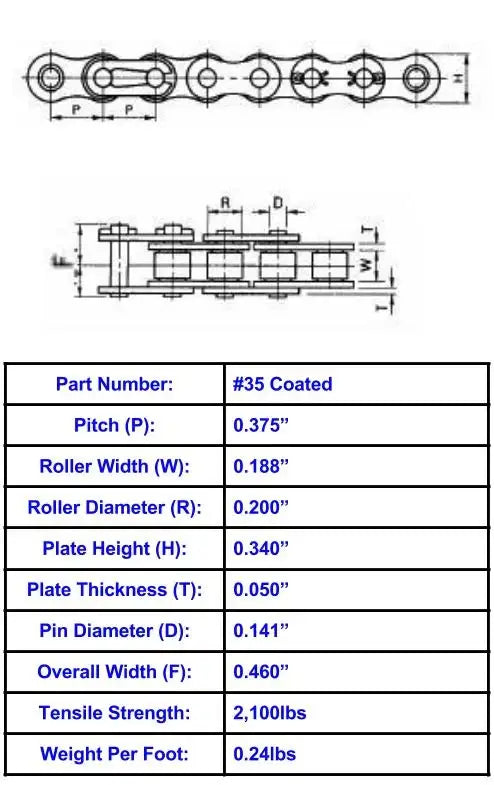

Dimensions:
- Chain Size: #35 Coated Roller Chain
- Tensile Strength: 2,100lbs
- **Note: All Dimensions Are in Inches**
- Pitch (P): 0.375
- Roller Width (W): 0.188
- Roller Diameter (R): 0.200
- Plate Height (H): 0.340
- Plate Thickness (T): 0.050
- Pin Diameter (D): 0.1410
- Overall Width (F): 0.460
- Email: sales@usarollerchain.com
- Phone: (407) 347-3519
Feature

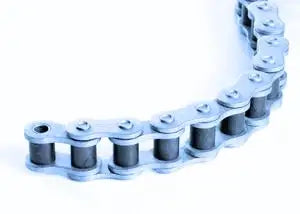

- Size: #35 Coated Roller Chain
- Tensile Strength: 2,100lbs
- Highly Resistant To Corrosion
- Heat Treated For Higher Strength & Durability
- Fully Meets All ANSI Standards
- Supplied in a 10ft Box Including One Connecting Link

- Chain Size: #35 Coated Roller Chain
- Tensile Strength: 2,100lbs
- **Note: All Dimensions Are in Inches**
- Pitch (P): 0.375
- Roller Width (W): 0.188
- Roller Diameter (R): 0.200
- Plate Height (H): 0.340
- Plate Thickness (T): 0.050
- Pin Diameter (D): 0.1410
- Overall Width (F): 0.460
