SSA1048 Stainless Steel Hollow Pin Roller Chain

SSA1048 Stainless Steel Hollow Pin Roller Chain

Note: Custom Cut to Length Chain Also Available
Product Code: SSA1048-CHAIN
View full details
Description
Specification

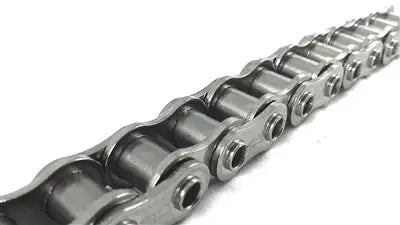

SSA1048 chain is a hollow pin stainless steel roller chain that is manufactured to American Standards. Hollow pin roller chains offer great versatility due to the ability to insert cross rods into the chain without chain disassembly required. This SSA1048 chain is manufactured using high quality, precision, and heat-treated components for maximum durability and working life. something else about this chain is that it is manufactured out of a high quality 304-grade stainless steel. This means that the chain is extremely corrosion resistant, lube-free, and will work in a wide range of temperatures. Besides SSA1048 chain we also have a full line of high quality sprockets, bearings, motors, reducers, sensors, and more. For additional information or to get pricing and availability please contact us and we will be happy to assist you.

Dimensions:

  • Chain Size: SSA1048
  • Pitch (P): 12.70 mm
  • Roller Diameter (Dr): 7.95 mm
  • Inside Width (W): 7.85 mm
  • Plate Height (H1): 12.07 mm
  • Plate Thickness: 1.53 mm
  • Roller Diameter (Dp): 5.56 mm
  • Hollow Pin Inside Diameter (Df): 4.01 mm
  • Riveted Pin Width (A1): 16.80 mm
  • Overall Connecting Link Width (B): 21.20 mm
  • Average Ultimate Strength: 9.50 kN
  • Average Chain Weight: 0.57 Kg/m

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • Premium Quality Chain
  • Supplied With One Connecting Link Per Box
  • Extremely High-Strength and Durable
Featured image
  • Chain Size: SSA1048
  • Pitch (P): 12.70 mm
  • Roller Diameter (Dr): 7.95 mm
  • Inside Width (W): 7.85 mm
  • Plate Height (H1): 12.07 mm
  • Plate Thickness: 1.53 mm
  • Roller Diameter (Dp): 5.56 mm
  • Hollow Pin Inside Diameter (Df): 4.01 mm
  • Riveted Pin Width (A1): 16.80 mm
  • Overall Connecting Link Width (B): 21.20 mm
  • Average Ultimate Strength: 9.50 kN
  • Average Chain Weight: 0.57 Kg/m
