SD28 Chain

SD28 Chain

Note: Custom Cut to Length Chain Also Available
Product Code: SD28-CHAIN
Other Customers Viewed
SD28 Sprocket
SD28 Sprocket
Login
View full details
Description
Specification

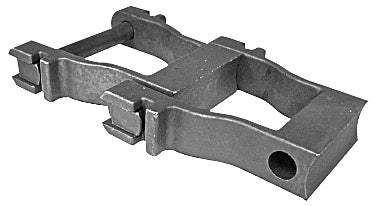

SD28 Chain is considered a cast alloy drag chain and features an ultimate strength of 139,400 LBS. This SD28 cast alloy drag chain is extremely high-strength, heavy duty, and anti abrasive due to the common applications it is placed in. Besides the chain we also have a full line of SD28 sprockets, motors, gear boxes, bearings, and more. For more information or to get pricing and availability please contact us and we will be happy to assist you.

Dimensions:

  • Chain Size: SD28
  • Style: SD
  • Pitch (A): 9.000"
  • Weight: 26.0 LBS/ FT
  • Weight Per Pin: 2.8 LBS
  • Average Ultimate Strength: 139,400 LBS
  • Recommended Working Load: 17,600 LBS
  • Barrel Length (B): 12.81"
  • Sidebar Width (C): 2.13"
  • Pin Diameter (D): 0.88"
  • Maximum Sprocket Width (E): 10.13"
  • Pin Head to Center Line (G): 8.00"
  • Pin End to Center Line (H): 8.13"

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Feature

  • High Quality Chain
  • Extremely Durable
  • Long Working life
  • High Strength
Featured image
  • Chain Size: SD28
  • Style: SD
  • Pitch (A): 9.000"
  • Weight: 26.0 LBS/ FT
  • Weight Per Pin: 2.8 LBS
  • Average Ultimate Strength: 139,400 LBS
  • Recommended Working Load: 17,600 LBS
  • Barrel Length (B): 12.81"
  • Sidebar Width (C): 2.13"
  • Pin Diameter (D): 0.88"
  • Maximum Sprocket Width (E): 10.13"
  • Pin Head to Center Line (G): 8.00"
  • Pin End to Center Line (H): 8.13"
