Hub City PT9415S-15 Reducer

PT9415S-15 Power Torque

Note: Available In Sizes 2-10 (Ratios 15:1 - 25:1)
Warranty: 2-Years

Availability: Typically In-Stock
Product Code: PT9415S-15-REDUCER

Get a Quote
Call to Order 407-347-3519

Description

Technical Specs

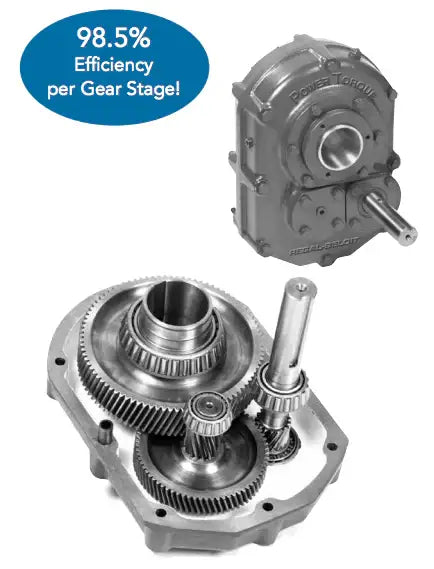

Hub City PT9415S-15 reducer is a high quality 15:1 ratio gearbox with rock solid dependability. What makes the Hub City Power Torque reducer so good is the universal design, high strength ductile housing, precision ground AGMA class 11 gearing, and immediate availability. Due to the universal design this reducer interchanges with the popular TXT reducers as well as other brands. If you are replacing an old gearbox that is not Hub City brand or TXT style please contract us to confirm usability. Besides the PT9415S-15 reducer we also have a full line of high quality accessories like bushing kits, backstop assemblies, motor mounts, screw conveyor adapters, screw conveyor drive shafts, and belt guards. Please note that torque-arm assemblies are included with each unit.

PT9415S-15 Dimensions

Part #: PT9415S-15
Ratio: 15:1
Box Size: 9
Dimension (L): 22.63"
Dimension (M): 31.69"
Dimension (N): 14.12"
Dimension (F): 2.4375"
Key: 0.625" X 0.312" X 7.75"
Maximum Dimension (B): 4-15/16""
Dimension (C): 2.44"
Dimension (E): 8.75"
Dimension (G): 6.63"
Dimension (W): 3.13"
Dimension (U): 4"
Dimension (X): 7.04"
Dimension (V): 5.66"
Dimension (Q): 9.65"
Dimension (Y): 2.98"
Dimension (H): 8.12"
Dimension (A1): 6.59"
Dimension (A2): 12.66"
Dimension (A3): 10.81"
Dimension (h): 11.31"
Minimum Dimension (R): 30"
Maximum Dimension (R): 36"
Dimension (P): 0.75"
Dimension (T): 7"
Gear Box Weight: 783 LBS

For mechanical ratings, service factors, or additional information or to get a quote please contact us and we will be happy to assist you.
