Hub City PT7315S-15 Reducer

Hub City PT7315S-15 Reducer

Note: Custom Cut to Length Chain Also Available
Product Code: PT7315S-15-REDUCER
Other Customers Viewed
BG7 Belt Guard
BG7 Belt Guard
Login
SMR6/7BSK Backstop
SMR6/7BSK Backstop
Login
SMR7 Torque Arm
SMR7 Torque Arm
Login
View full details
Description
Specification

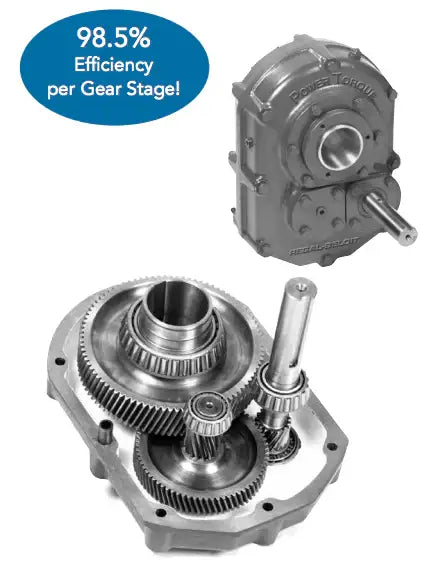

Hub City PT7315S-15 reducer is a high quality 15:1 ratio gearbox with rock solid dependability. What makes the Hub City Power Torque reducer so good is the universal design, high strength ductile housing, precision ground AGMA class 11 gearing, and immediate availability. Due to the universal design this reducer interchanges with the popular TXT reducers as well as other brands. If you are replacing an old gearbox that is not Hub City brand or TXT style please contract us to confirm usability. Besides the PT7315S-15 reducer we also have a full line of high quality accessories like bushing kits, backstop assemblies, motor mounts, screw conveyor adapters, screw conveyor drive shafts, and belt guards. Please note that torque-arm assemblies are included with each unit.

PT7315S-15 Dimensions


  • Part #: PT7315S-15
  • Ratio: 15:1
  • Box Size: 7
  • Dimension (L): 18.75"
  • Dimension (M): 25.94"
  • Dimension (N): 12.85"
  • Dimension (F): 2.4375"
  • Key: 0.625" X 0.312" X 4.75"
  • Maximum Dimension (B): 3-15/16"
  • Dimension (C): 2.06"
  • Dimension (E): 7.25"
  • Dimension (G): 3.75"
  • Dimension (W): 2.00"
  • Dimension (U): 2.75"
  • Dimension (X): 6.38"
  • Dimension (V): 4.69"
  • Dimension (Q): 6.35"
  • Dimension (Y): 2.50"
  • Dimension (H): 7.75"
  • Dimension (A1): 5.11"
  • Dimension (A2): 9.74"
  • Dimension (A3): 8.30"
  • Dimension (h): 9.38"
  • Minimum Dimension (R): 29.44"
  • Maximum Dimension (R): 35.44"
  • Dimension (P): 0.63"
  • Dimension (T): 4.75"
  • Gear Box Weight: 487 LBS

For mechanical ratings, service factors, or additional information or to get a quote please contact us and we will be happy to assist you.

Phone: (407) 347-3519
Email: sales@usarollerchain.com



Feature

  • Premium Quality Reducer
  • Typically In Stock
  • Extremely Durable
  • High Performance
Featured image
  • Part #: PT7315S-15
  • Ratio: 15:1
  • Box Size: 7
  • Dimension (L): 18.75"
  • Dimension (M): 25.94"
  • Dimension (N): 12.85"
  • Dimension (F): 2.4375"
  • Key: 0.625" X 0.312" X 4.75"
  • Maximum Dimension (B): 3-15/16"
  • Dimension (C): 2.06"
  • Dimension (E): 7.25"
  • Dimension (G): 3.75"
  • Dimension (W): 2.00"
  • Dimension (U): 2.75"
  • Dimension (X): 6.38"
  • Dimension (V): 4.69"
  • Dimension (Q): 6.35"
  • Dimension (Y): 2.50"
  • Dimension (H): 7.75"
  • Dimension (A1): 5.11"
  • Dimension (A2): 9.74"
  • Dimension (A3): 8.30"
  • Dimension (h): 9.38"
  • Minimum Dimension (R): 29.44"
  • Maximum Dimension (R): 35.44"
  • Dimension (P): 0.63"
  • Dimension (T): 4.75"
  • Gear Box Weight: 487 LBS
