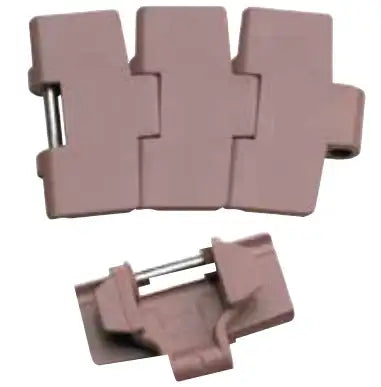

LF879 Tab-R K325 Chain

Note: Se Habla Espanol

Product Code: LF879-TAB-R-K325-CHAIN

Get a Quote
Call to Order 407-347-3519

Description

Technical Specs

LF879 Tab-R K325 table top chain is a 3.25" wide, low fiction chain that is manufactured out of POM-LF material and is brown in color. TAB-R series chains are manufactured with a special tab that allows for a tighter radius (7.87" vs 15.75"). What sets this chain apart from others is that it is manufactured using high quality self lubricating polymers and features high-strength 304-grade stainless steel pins. LF879 Tab-R K325 chain is typically supplied as 10ft lengths and is a common in stock item. Besides the chain we also offer a full line of high quality 879 series sprockets, wear strips, and a wide range of other industrial products. What sets USA Roller Chain apart is our expert customer service team, ease to do business with, rapid fast response times, extensive inventory, and extremely competitive pricing. To get a quote or for more information on table top chain please contact us and we will be happy to assist you.

LF879 Tab-R K325 Chain Dimensions

Material: POM-LF
Color: Brown
Width: 3.25"
Pitch: 1.50"
Backflex Radius: 3.00"
Tensile Strength: 506 LBS
Dimension (E): 0.28"
Dimension (G): 1.75"
Dimension (H): 0.63"
Dimension (J): 2.42"
Dimension (K): 0.47"
Dimension (L): 0.33"
Dimension (Q): 1.70"
Dimension (T): 0.20"
Minimum Radius (R): 7.87"
Chain Weight: 0.61 LBS/ FT

Besides the LF879 Tab-R K325 table top chain, we also have a full line of 879 series sprockets available from stock. The chart below shows the stock sprocket sizes but additional sizes and configurations are available upon request.

*Stock 879 Sprocket Size Chart*
Sprocket Type	Tooth Count	Overall Diameter
Sprocket Type	Tooth Count	Overall Diameter
*Solid 879-Z9*	9	4.32"
*Solid 879-Z10*	10	4.81"
*Solid 879-Z11*	11	5.31"
*Solid 879-Z12*	12	5.80"
*Solid 879-Z15*	15	7.26"
*Split 879-Z9*	9	4.32"
*Split 879-Z10*	10	4.81"
*Split 879-Z11*	11	5.31"
*Split 879-Z12*	12	5.80"

In addition to table top chain and sprockets, USA Roller Chain and Sprockets offers a full line of industrial and Power Transmission components right off the shelf. For additional information or to get a quote on LF879 Tab-R K325 chain, sprockets, or other products please contact us and we will be happy to assist you.
