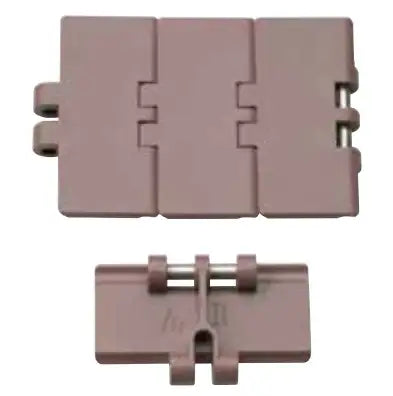

LF820 K750 Table Top Chain

LF820 K750 Table Top Chain

Note: Custom Cut to Length Chain Also Available
Product Code: LF820-K750-CHAIN
Other Customers Viewed
820 Series Rubber Tops
820 Series Rubber Tops
Login
View full details
Description
Specification
LF820 K750 table top chain is a 7.50" wide, low fiction chain that is manufactured out of POM-LF material and is brown in color. What sets this chain apart from others is that it is manufactured using high quality self lubricating polymers and features high-strength 304-grade stainless steel pins. LF820 K750 chain is typically supplied as 10ft lengths and is a common in stock item. Besides the chain we also offer a full line of high quality 820 series sprockets and a wide range of other industrial products. What sets USA Roller Chain apart is our expert customer service team, ease to do business with, rapid fast response times, extensive inventory, and extremely competitive pricing. To get a quote or for more information on table top chain please contact us and we will be happy to assist you.


LF820 K750 Chain Dimensions


  • Chain Size: LF820 K750
  • Pitch (P): 1.50"
  • Backflex Radius: 3.00"
  • Tensile Strength: 450 LBS
  • Width (W): 7.50"
  • Chain Material: POM-LF
  • Color: Brown
  • Pin Material: 304-SS
  • Dimension (E): 0.25"
  • Dimension (G): 1.75"
  • Dimension (H): 0.37"
  • Dimension (L): 0.28"
  • Dimension (Q): 1.63"
  • Dimension (T): 0.16"
  • Chain Weight: 0.99 LBS/ FT


Besides the LF820 K750 table top chain, we also have a full line of 820 series sprockets available from stock. The chart below shows the stock sprocket sizes but additional sizes and configurations are available upon request.

Stock 820 Sprocket Size Chart
Sprocket Type Tooth Count Overall Diameter
Solid 820-Z19 19 4.61"
Solid 820-Z21 21 5.12"
Solid 820-Z23 23 5.59"
Solid 820-Z25 25 6.10"
Solid 820-Z27 27 6.57"
Solid 820-Z29 29 7.05"
Solid 820-Z31 31 7.56"
Split 820-Z19 19 4.61"
Split 820-Z21 21 5.12"
Split 820-Z23 23 5.59"
Split 820-Z25 25 6.10"


In addition to table top chain and sprockets, USA Roller Chain and Sprockets offers a full line of industrial and Power Transmission components right off the shelf. For additional information or to get a quote on LF820 K750 chain, sprockets, or other products please contact us and we will be happy to assist you.

Phone: (407) 347-3519
Email: sales@usarollerchain.com

Click Here To See Our Other Products!



Feature

  • High Quality Table Top chain
  • Self Lubricating
  • Interchangeable With Other Brands
  • Supplied As 10ft Lengths
Featured image
  • Chain Size: LF820 K750
  • Pitch (P): 1.50"
  • Backflex Radius: 3.00"
  • Tensile Strength: 450 LBS
  • Width (W): 7.50"
  • Chain Material: POM-LF
  • Color: Brown
  • Pin Material: 304-SS
  • Dimension (E): 0.25"
  • Dimension (G): 1.75"
  • Dimension (H): 0.37"
  • Dimension (L): 0.28"
  • Dimension (Q): 1.63"
  • Dimension (T): 0.16"
  • Chain Weight: 0.99 LBS/ FT
