LF 831 K325 Table Top Chain
LF 831 K325 Table Top Chain
Note:
Custom Cut to Length Chain Also Available
Product Code: LF-831-K325-CHAIN
Couldn't load pickup availability
Other Customers Viewed

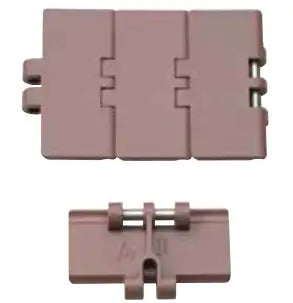

LF 831 K325 table top chain is a 3.25" wide chain that is manufactured out of Low Friction (LF) polymers and is brown in color. LF831 K325 chain is typically supplied as 10ft lengths and is a common in stock item. Besides the chain we also offer a full line of high quality 831 series sprockets, wear strips, and a wide range of other industrial products. What sets USA Roller Chain apart is our expert customer service team, ease to do business with, rapid fast response times, extensive inventory, and extremely competitive pricing. To get a quote or for more information on table top chain please contact us and we will be happy to assist you.
Besides the LF 831 K325 table top chain, we also have a full line of 831 series sprockets available from stock. The chart below shows the stock sprocket sizes but additional sizes and configurations are available upon request.
In addition to table top chain and sprockets, USA Roller Chain and Sprockets offers a full line of industrial and Power Transmission components right off the shelf. For additional information or to get a quote on LF 831 K325 chain, sprockets, or other products please contact us and we will be happy to assist you.
Phone: (407) 347-3519
Email: sales@usarollerchain.com
Click Here To See Our Other Products!
LF831 K325 Chain Dimensions
- Chain Width (W): 3.25"
- Pitch: 1.50"
- Backflex Radius: 3.00"
- Tensile Strength: 450 LBS
- Chain Material: POM-LF
- Chain Color: Brown
- Pin Material: 304SS
- Weight: 0.67 LBS/FT
- Dimension (E): 0.25"
- Dimension (G): 1.75"
- Dimension (H): 0.33"
- Dimension (L): 0.28"
- Dimension (Q): 1.63"
- Dimension (T): 0.20"
Besides the LF 831 K325 table top chain, we also have a full line of 831 series sprockets available from stock. The chart below shows the stock sprocket sizes but additional sizes and configurations are available upon request.
|
|
Tooth Count | Overall Diameter |
|---|---|---|
| 19 | 4.61" | |
| 21 | 5.12" | |
| 23 | 5.59" | |
| 25 | 6.10" | |
| 27 | 6.57" | |
| 29 | 7.05" | |
| 31 | 7.56" | |
| 19 | 4.61" | |
| 21 | 5.12" | |
| 23 | 5.59" | |
| 25 | 6.10" |
In addition to table top chain and sprockets, USA Roller Chain and Sprockets offers a full line of industrial and Power Transmission components right off the shelf. For additional information or to get a quote on LF 831 K325 chain, sprockets, or other products please contact us and we will be happy to assist you.
Email:
Feature
- High Quality Table Top Chain
- Supplied as 10ft Lengths
- Great Performance
- Extremely Durable
- Chain Width (W): 3.25"
- Pitch: 1.50"
- Backflex Radius: 3.00"
- Tensile Strength: 450 LBS
- Chain Material: POM-LF
- Chain Color: Brown
- Pin Material: 304SS
- Weight: 0.67 LBS/FT
- Dimension (E): 0.25"
- Dimension (G): 1.75"
- Dimension (H): 0.33"
- Dimension (L): 0.28"
- Dimension (Q): 1.63"
- Dimension (T): 0.20"
