HP-550889P Chain | Hollow Pin Chain

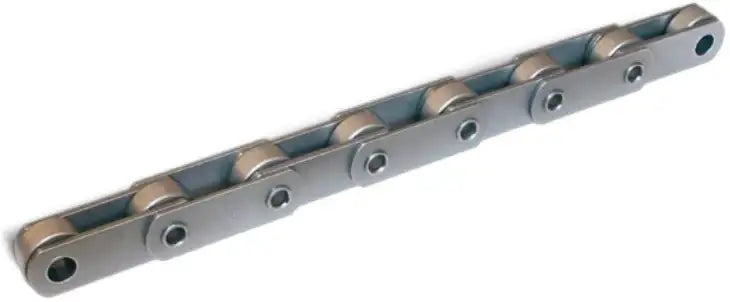

HP-550889P Hollow Pin Chain

Product Code: HP-550889P-CHAIN

Get a Quote
Call to Order 407-347-3519

Description

HP-550889P Chain is also known as HP55/0889/P chain and is a hollow pin conveyor chain. Primarily HP550889P chain is found in wastewater applications, food processing, chemical plants, and even refineries. The chain has become so popular due to the hollow pin design which allows for an able area for easily affixing attachments to the outer plates through the hollow pins. The attachment can be fastened tightly against the hollow pin rivet or left in a free manner to pivot.

HP-550889P Chain is typically made of stainless steel, zinc plated components, acetal copolymer rollers, or a combination of the three options based upon the application needs. The chains breaking load ratings are based upon the zinc plated version, technical data on other vacations can be supplied at the time of quoting. We also supply HP-550889P Chain sprockets and can custom manufactured desired attachments for the chain upon request.

HP-550889P Chain Dimensions

Chain Size: HP55/0889/P
Pitch (P): 88.9mm
Breaking Load: 55 kN
Breaking Load (with heat-treated link plates): 110 kN
Average Weight: 6.35 kG/m
Roller (D2): 47.5mm
Roller (D4): 60mm
Roller (flange thickness): 6mm
Bushing Outside Diameter (D5): 23mm
Overall Width (F1): 45mm
Distance Between Sidebars (L): 19mm
Sidebar Thickness (S1): 5mm
Sidebar Thickness (S2): 4mm
Sidebar Height (H): 40mm
Pin Diameter (D6): 19mm
Hollow Pin ID (D7): 13.2mm
