HP-1602540P Chain | Hollow Pin Chain

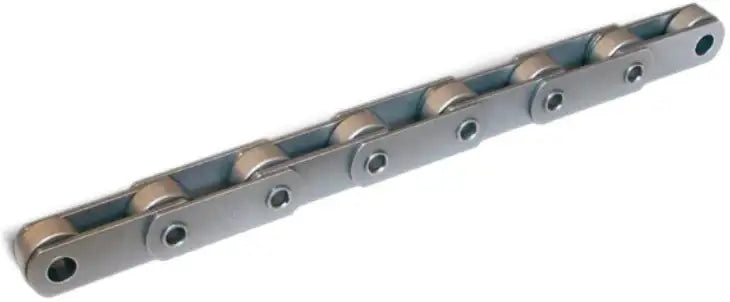

HP-1602540P Hollow Pin Chain

Product Code: HP-1602540P-CHAIN

Get a Quote
Call to Order 407-347-3519

Description

HP-1602540P Chain is also known as HP160/2540/P chain and is a hollow pin conveyor chain. Primarily HP1602540P chain is found in wastewater applications, food processing, chemical plants, and even refineries. The chain has become so popular due to the hollow pin design which allows for an able area for easily affixing attachments to the outer plates through the hollow pins. The attachment can be fastened tightly against the hollow pin rivet or left in a free manner to pivot.

HP-1602540P Chain is typically made of stainless steel, zinc plated components, acetal copolymer rollers, or a combination of the three options based upon the application needs. The chains breaking load ratings are based upon the zinc plated version, technical data on other vacations can be supplied at the time of quoting. We also supply HP-1602540P Chain sprockets and can custom manufactured desired attachments for the chain upon request.

HP-1602540P Chain Dimensions

Chain Size: HP160/2540/P
Pitch (P): 254.0mm
Breaking Load: 160 kN
Breaking Load (with heat-treated link plates): 320 kN
Average Weight: 16.60 kG/m
Roller (D2): 88.9mm
Roller (D4): 114mm
Roller (flange thickness): 10.5mm
Bushing Outside Diameter (D5): 38mm
Overall Width (F1): 78mm
Distance Between Sidebars (L): 38mm
Sidebar Thickness (S1): 8mm
Sidebar Thickness (S2): 8mm
Sidebar Height (H): 60mm
Pin Diameter (D6): 32mm
Hollow Pin ID (D7): 22.5mm
