HP-1101016P Chain | Hollow Pin Chain

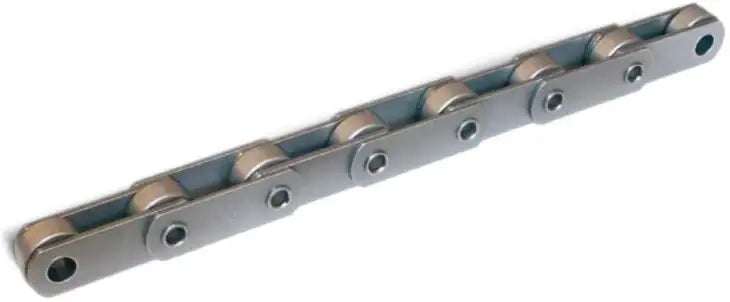

HP-1101016P Hollow Pin Chain

Product Code: HP-1101016P-CHAIN

Get a Quote
Call to Order 407-347-3519

Description

HP-1101016P Chain is also known as HP110/1016/P chain and is a hollow pin conveyor chain. Primarily HP1101016P chain is found in wastewater applications, food processing, chemical plants, and even refineries. The chain has become so popular due to the hollow pin design which allows for an able area for easily affixing attachments to the outer plates through the hollow pins. The attachment can be fastened tightly against the hollow pin rivet or left in a free manner to pivot.

HP-1101016P Chain is typically made of stainless steel, zinc plated components, acetal copolymer rollers, or a combination of the three options based upon the application needs. The chains breaking load ratings are based upon the zinc plated version, technical data on other vacations can be supplied at the time of quoting. We also supply HP-1101016P Chain sprockets and can custom manufactured desired attachments for the chain upon request.

HP-1101016P Dimensions

Chain Size: HP110/1016/P
Pitch (P): 101.6mm
Breaking Load: 110 kN
Breaking Load (with heat-treated link plates): 200 kN
Average Weight: 12.14 kG/m
Roller (D2): 66.7mm
Roller (D4): 82mm
Roller (flange thickness): 9mm
Bushing Outside Diameter (D5): 33mm
Overall Width (F1): 58mm
Distance Between Sidebars (L): 26mm
Sidebar Thickness (S1): 7mm
Sidebar Thickness (S2): 5mm
Sidebar Height (H): 50mm
Pin Diameter (D6): 26.9mm
Hollow Pin ID (D7): 20.2mm
