- TN _ Manganese Chrome Alloy Steel (20MnCr5) Case hardened
- CN _ Chrome Nickel Alloy Steel (18NiCoMo5) Case Hardened
- CD _ Chrome Molly Alloy Steel (42CrMo4) Hardened & Tempered

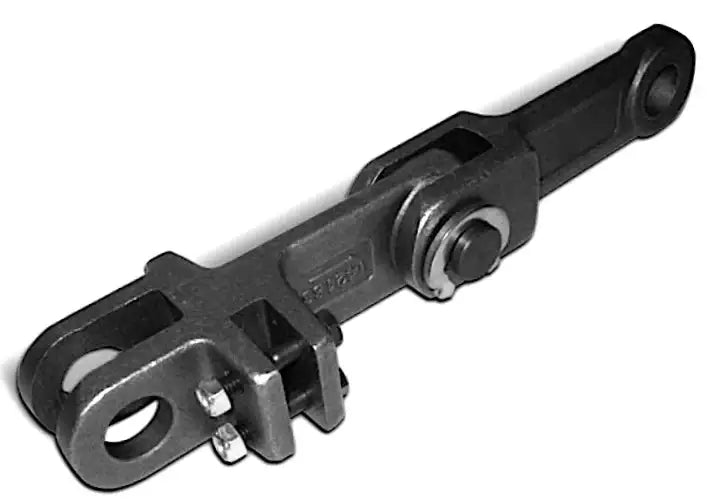

F200252 Chain Dimensions
- Chain Size: F-200252
- Pitch (P): 200mm
- Dimension (T): 60mm
- Dimension (C): 50mm
- Dimension (S): 25mm
- Dimension (Z): 81mm
- Dimension (G): 12mm
- Bolt-Hole Diameter (D): 25mm
- TN Option Breaking Load: 380 kN
- CN Option Breaking Load: 410 kN
- CD Option Breaking Load: 670 kN
- Weight: 13.00 kG/ M
F-200252 Pin Options
![]() |
![]() Type HD/22 - Hardened Pin With Standard Circlip
|
![]() Type HD/45/28RP - Headed Pin With Collar and Roll Pin Retention
|
---|---|---|
![]() Type HD/45/28S - Headed Pin With Collar and S Cotter Retention |
![]() Type SN/28S - Antirotation Snub Pin Washer and S Cotter Retention |
![]() Type HD/28S - Headed Pin With Washer and S Cotter Retention |
